Romac 286-069032 202NS-6.90x3/4 IPS 6x3/4 DI/NC SVC SAD SS/DS (6.63-6.90)

Product Description

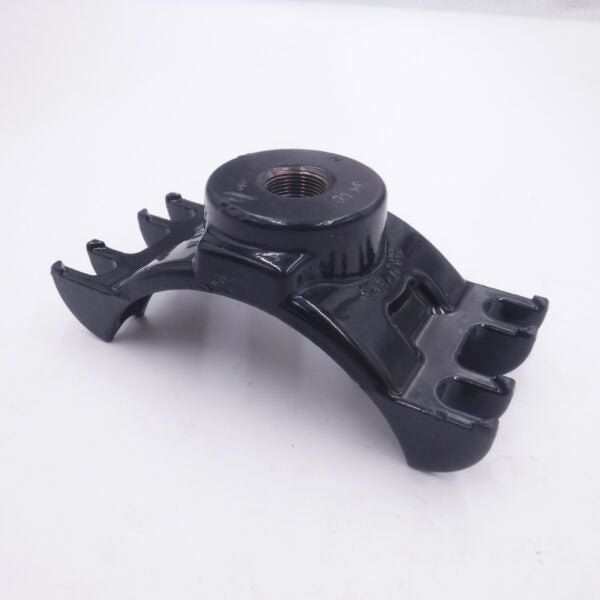

The ROMAC 286-069032 202NS-6.90x3/4 IPS 6x3/4 DI/NC SVC SAD SS/DS (6.63-6.90) DI BODY is a nylon-coated, stainless steel double strap service saddle. It is designed for use on steel, cast iron, asbestos cement, and plastic pipes. It adheres to ANSI/AWWA C800 and ANSI/NSF 61/372 standards and features a ductile iron body.

• Ductile Iron Body
• NBR Gasket
• 304 Stainless Steel U-Bolt/Nut/Washer

Product Highlights

This service saddle features a black nylon coating and double strap mounting for secure and reliable performance.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 286-069032

Technical Specifications

• MATERIAL: DUCTILE IRON (BODY), NBR (GASKET), 304 STAINLESS STEEL (U-BOLT/NUT/WASHER)
• FINISH: 10 TO 12 MIL FUSION BONDED BLACK NYLON COATED
• APPLICABLE STANDARD: ANSI/AWWA C800, ANSI/NSF 61/372
• MATERIAL SPECIFICATION: ASTM A194/A240/A536/D2000
• PRESSURE RATING: 350 PSI
• MOUNTING TYPE: DOUBLE STRAP
• NOMINAL PIPE SIZE: 6 INCH
• OUTLET CONNECTION: 3/4 INCH IP THREADED
• PIPE OUTER DIAMETER: 6.63 TO 6.9 INCH
• USED ON: STEEL, CAST IRON, ASBESTOS CEMENT AND PLASTIC PIPE
• MODEL: 202NS
• Brand: Romac Industries
• MPN: 286-069032
• Type: Saddle Fitting
• Compatible Brand: Romac Industries
• Compatible Model: 286-069032
• Manufacturer Part Number: 286-069032
