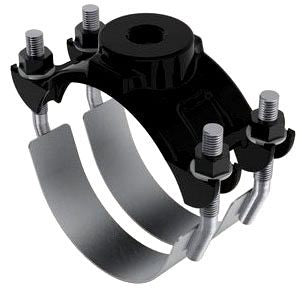

Romac 286-025032 Double Strap Service Saddle 2x3/4 in

Product Description

The ROMAC 286-025032 is a double strap service saddle designed for tapping into water distribution and service lines in the 2-inch nominal pipe size range. The body is cast from ductile iron and finished with a 10 to 12 mil fusion bonded black nylon coating for corrosion resistance. The 3/4-inch IP threaded outlet accepts standard corporation stops and service fittings. Hardware includes 304 stainless steel U-bolts, nuts, and washers. The saddle meets ANSI/AWWA C800 and ANSI/NSF 61/372 standards and carries a 350 PSI pressure rating. Plumbers and waterworks contractors install this saddle during service line taps on both new construction and rehabilitation projects.

The 286-025032 is part of the ROMAC 202NS model line. It is used on pipe with an outside diameter ranging from 2.38 to 2.50 inches, covering standard 2-inch nominal pipe in steel, cast iron, asbestos cement, and plastic. The 3/4-inch IP threaded outlet suits residential and light commercial service connections. This saddle is a standard choice for municipal waterworks crews and licensed plumbers performing tapping work under AWWA and local plumbing code requirements.

Key Features

• Ductile iron body with 10 to 12 mil fusion bonded black nylon coating for corrosion protection
• 304 stainless steel U-bolts, nuts, and washers for long-term hardware integrity
• Double strap mounting design for secure, uniform pipe clamp load
• 3/4-inch IP threaded outlet for direct connection of corporation stops and fittings
• 350 PSI pressure rating suitable for standard water service applications
• Compliant with ANSI/AWWA C800 and ANSI/NSF 61/372 for potable water use

Compatibility

Designed for use on 2-inch nominal pipe with an outside diameter of 2.38 to 2.50 inches. Compatible pipe materials include steel, cast iron, asbestos cement, and plastic. Outlet threads are 3/4-inch IP, compatible with standard corporation stop fittings used in water service installations.

Installation Notes

Installation is performed by a licensed plumber or waterworks technician. Shut off and depressurize the line or follow wet-tap procedures with approved tapping equipment before drilling the outlet. Torque U-bolt nuts evenly in a cross pattern to achieve uniform gasket seating against the pipe surface. Verify outlet thread engagement and pressure-test the connection in accordance with local water authority and AWWA guidelines before restoring service.

Technical Specifications

• Model: 202NS
• Body Material: Ductile Iron
• Gasket Material: NBR
• Hardware Material: 304 Stainless Steel (U-Bolt, Nut, Washer)
• Finish: Fusion Bonded Black Nylon Coated, 10 to 12 mil
• Pressure Rating: 350 psi
• Nominal Pipe Size: 2 inches
• Pipe Outside Diameter Range: 2.38 to 2.50 inches
• Outlet Connection: 3/4-inch IP Threaded
• Mounting Type: Double Strap
• Overall Length: 4.88 inches
• Overall Width: 4.7 inches
• Applicable Standards: ANSI/AWWA C800, ANSI/NSF 61/372
• Material Specifications: ASTM A194, A240, A536, D2000
• UPC: 95005213698

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 286-025032
