Romac 283-090562 Single Strap Saddle 8 in 1-1/2 in Fipt

Product Description

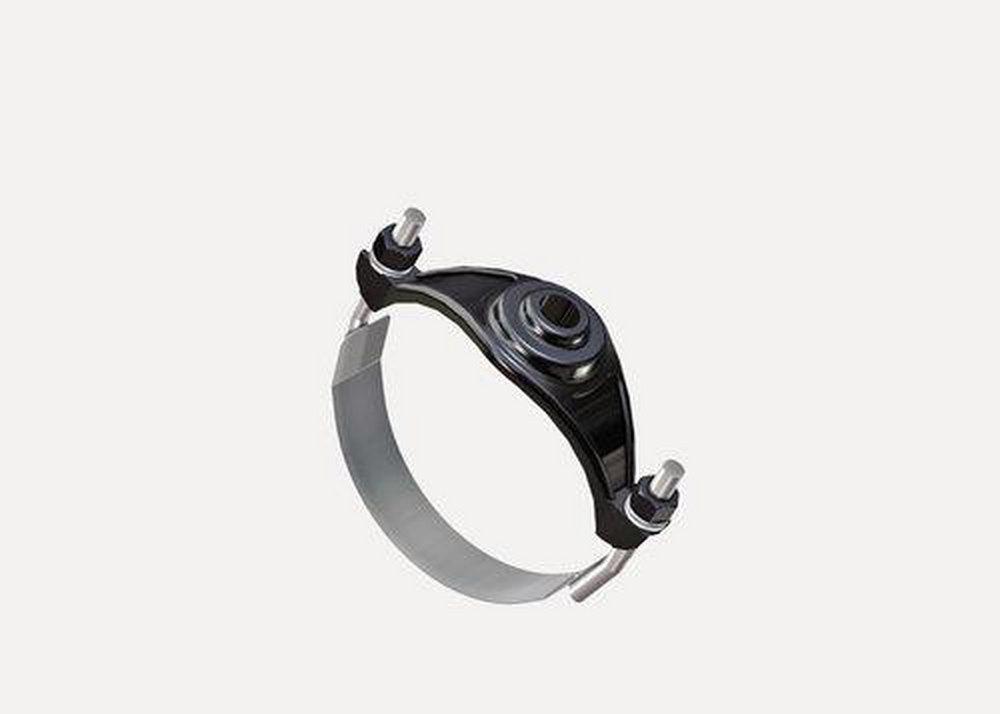

The ROMAC 283-090562 is a single strap pipe saddle designed for tapping into 8-inch pipe with a 1-1/2-inch female iron pipe thread (FIPT) outlet. Constructed with a stainless steel strap and a nylon body, this saddle provides corrosion resistance and reliable sealing in water distribution and service line applications. It is used to create a new branch connection on an existing main without requiring a full line shutdown for fitting replacement. Licensed plumbers and water system contractors are the primary installers of this type of saddle fitting.

This saddle is suited for residential and light commercial water service applications where a branch tap is needed on an 8-inch main. The FIPT end connection allows direct thread engagement with standard iron pipe thread fittings and valves. It is commonly used in municipal water service, irrigation mains, and fire protection distribution lines where a secure, single-strap branch connection is appropriate for the operating conditions.

Key Features

• Fits 8-inch pipe with a 1-1/2-inch FIPT tap outlet
• Stainless steel strap provides corrosion resistance and clamping strength
• Nylon body resists chemical degradation in water service environments
• FIPT end connection compatible with standard iron pipe thread fittings
• Single strap design for straightforward field installation on existing mains

Compatibility

Designed as an OEM-style replacement and new-installation saddle fitting for 8-inch outside-diameter pipe requiring a 1-1/2-inch FIPT branch tap.

Installation Notes

Installation should be performed by a licensed plumber or water system contractor in accordance with local plumbing codes and IPC requirements. Depressurize and isolate the line segment before drilling or tapping whenever possible. Inspect the pipe surface for corrosion or damage before seating the saddle, and torque the strap hardware evenly to ensure a uniform seal. Do not exceed the pressure rating of the fitting for the intended service application.

Technical Specifications

• Fits Pipe Size: 8 inches
• Tap Size: 1-1/2 inches
• End Connection: FIPT
• Strap Material: Stainless Steel
• Body Material: Nylon

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 283-090562
