Romac 283-090532 101NS-9.05x3/4 IPS 8x3/4 DI/NC SVC SAD SS/SS (8.63-9.05)

Product Description

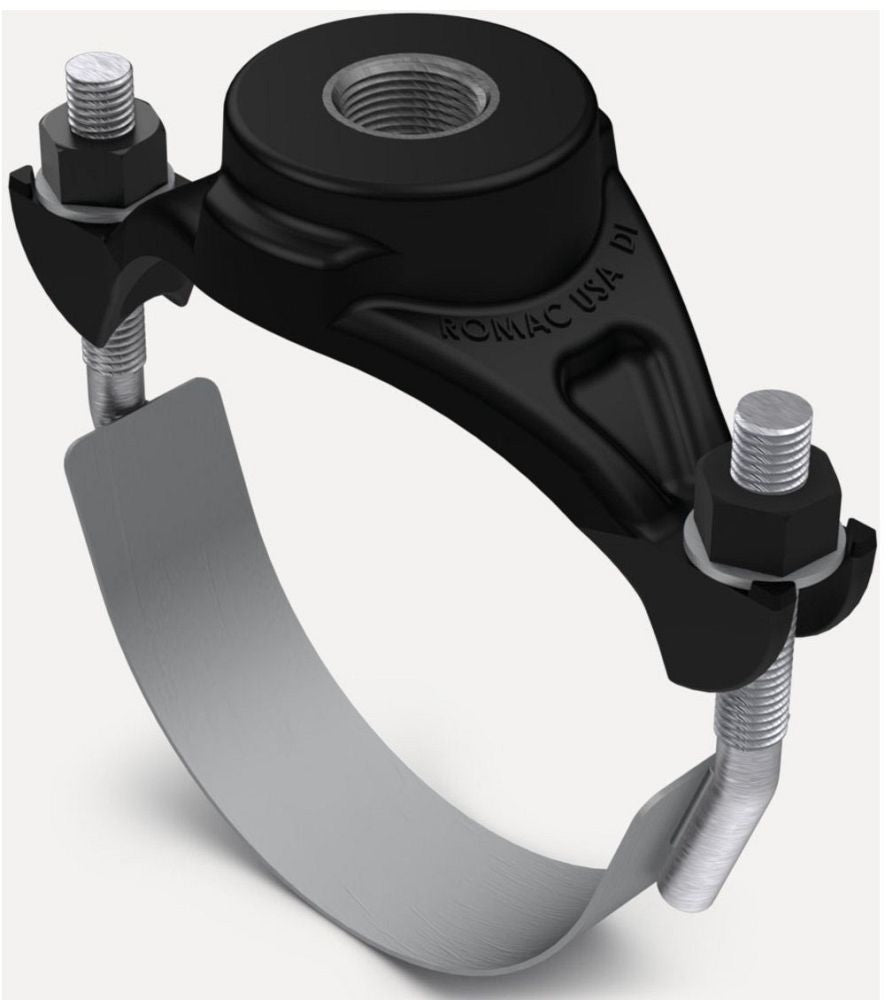

The ROMAC 283-090532, model 101NS, is constructed with a ductile iron body, NBR gasket, and 304 stainless steel bolts, nuts, washers and strap. Features a 10 to 12 mil fusion bonded black nylon coated finish and adheres to ANSI/AWWA C800 and ANSI/NSF 61/372 standards. Designed for use on steel, cast iron, asbestos cement, plastic and other pipe types.

• 3/4 Inch IP Threaded Outlet Connection
• 8 Inch Nominal Pipe Size
• 350 PSI Pressure Rating

Product Highlights

Durable construction with nylon coating and stainless steel components. Suitable for various pipe materials and complies with industry standards.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 283-090532

Technical Specifications

• MATERIAL: DUCTILE IRON (BODY), NBR (GASKET), 304 STAINLESS STEEL (BOLT/NUT/WASHER/STRAP)
• FINISH: 10 TO 12 MIL FUSION BONDED BLACK NYLON COATED
• APPLICABLE STANDARD: ANSI/AWWA C800, ANSI/NSF 61/372
• MATERIAL SPECIFICATION: ASTM A194/A240/A536/D2000
• PRESSURE RATING: 350 PSI
• MOUNTING TYPE: SINGLE STRAP
• NOMINAL PIPE SIZE: 8 INCH
• OUTLET CONNECTION: 3/4 INCH IP THREADED
• OVERALL DIMENSION: 11.13 INCH LENGTH X 4 INCH WIDTH
• PIPE OUTER DIAMETER: 8.63 TO 9.05 INCH
• USED ON: STEEL, CAST IRON, ASBESTOS CEMENT, PLASTIC AND OTHER TYPES OF PIPE
• MODEL: 101NS
