Romac 283-069032 101NS-6.90x3/4 IPS 6x3/4 DI/NC SVC SAD SS/SS (6.63-6.90)

Product Description

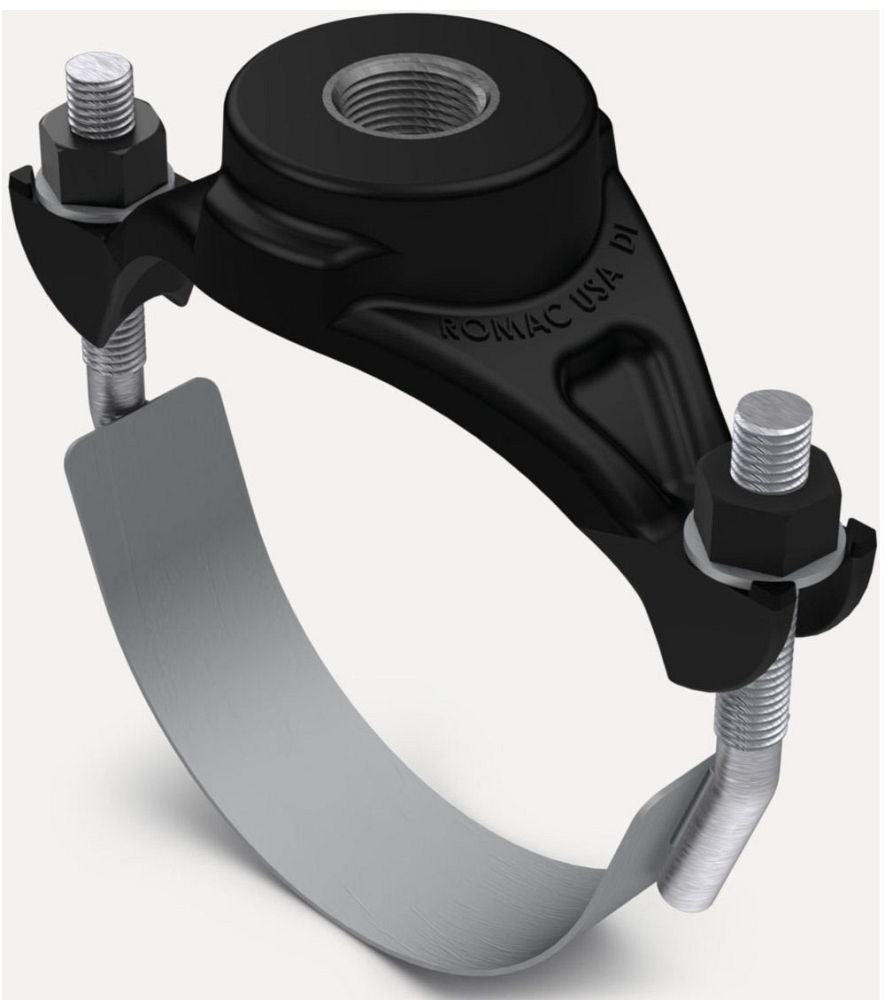

The ROMAC 283-069032 is a 101NS model fitting with a ductile iron body, NBR gasket, and 304 stainless steel bolts, nuts, washers and straps. It features a 10 to 12 mil fusion bonded black nylon coating and is rated to 350 PSI. This fitting is designed for pipes with an outer diameter of 6.63 to 6.9 inches.

• Constructed with ductile iron, NBR gasket, and 304 stainless steel components
• Features a 10 to 12 mil fusion bonded black nylon coating
• Suitable for use on steel, cast iron, asbestos cement, plastic, and other pipe types

Product Highlights

Durable construction with nylon coating, suitable for various pipe materials, and compliant with ANSI/AWWA C800 and ANSI/NSF 61/372 standards.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 283-069032

Technical Specifications

• MATERIAL: DUCTILE IRON (BODY), NBR (GASKET), 304 STAINLESS STEEL (BOLT/NUT/WASHER/STRAP)
• FINISH: 10 TO 12 MIL FUSION BONDED BLACK NYLON COATED
• APPLICABLE STANDARD: ANSI/AWWA C800, ANSI/NSF 61/372
• MATERIAL SPECIFICATION: ASTM A194/A240/A536/D2000
• PRESSURE RATING: 350 PSI
• MOUNTING TYPE: SINGLE STRAP
• NOMINAL PIPE SIZE: 6 INCH
• OUTLET CONNECTION: 3/4 INCH IP THREADED
• PIPE OUTER DIAMETER: 6.63 TO 6.9 INCH
• MODEL: 101NS
