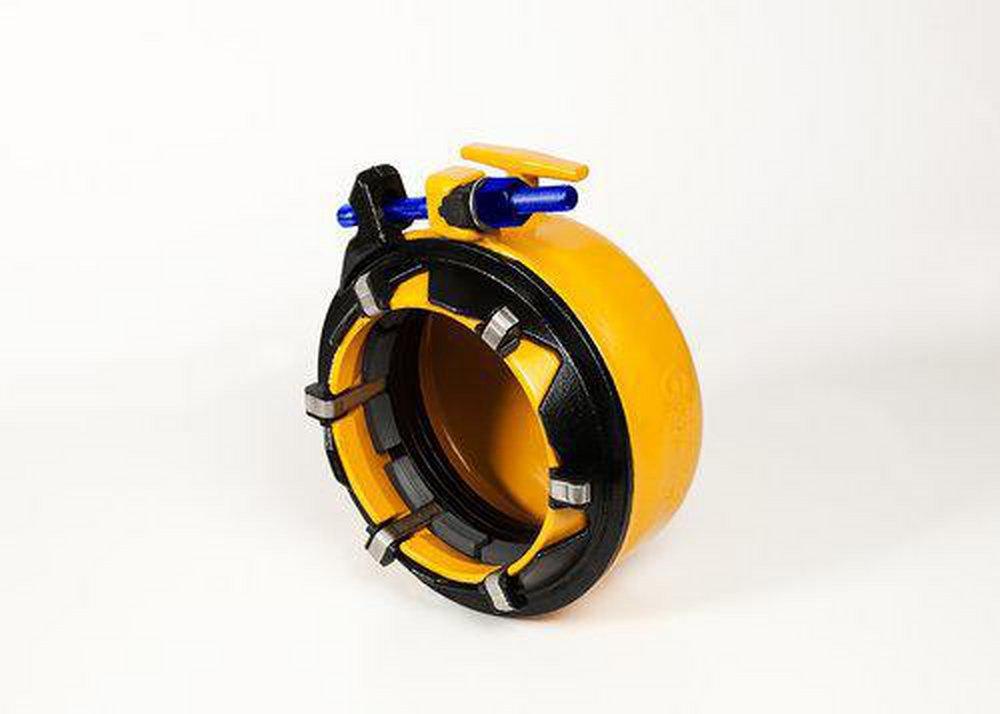

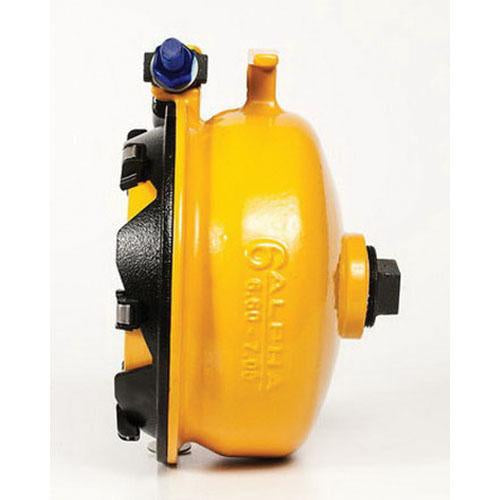

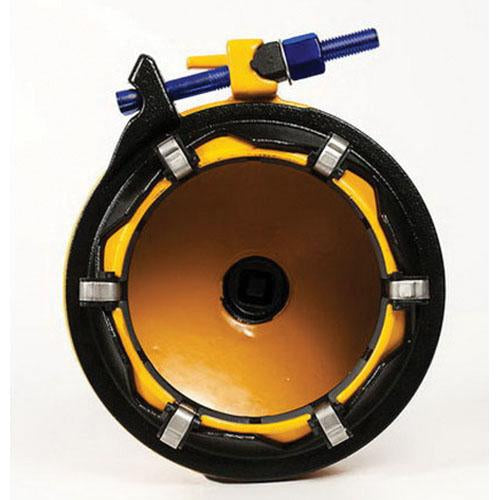

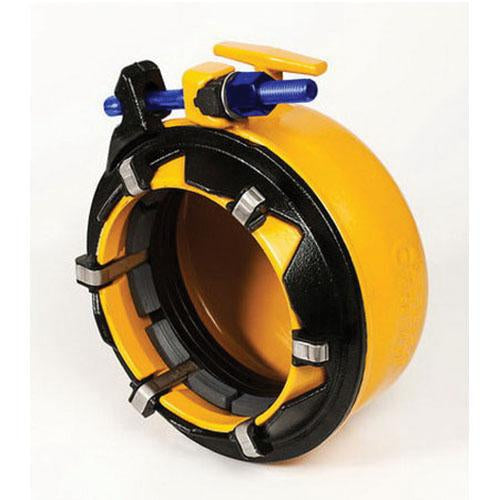

Romac 269-091016 Alpha End Cap 8 in 8.60-9.10

Product Description

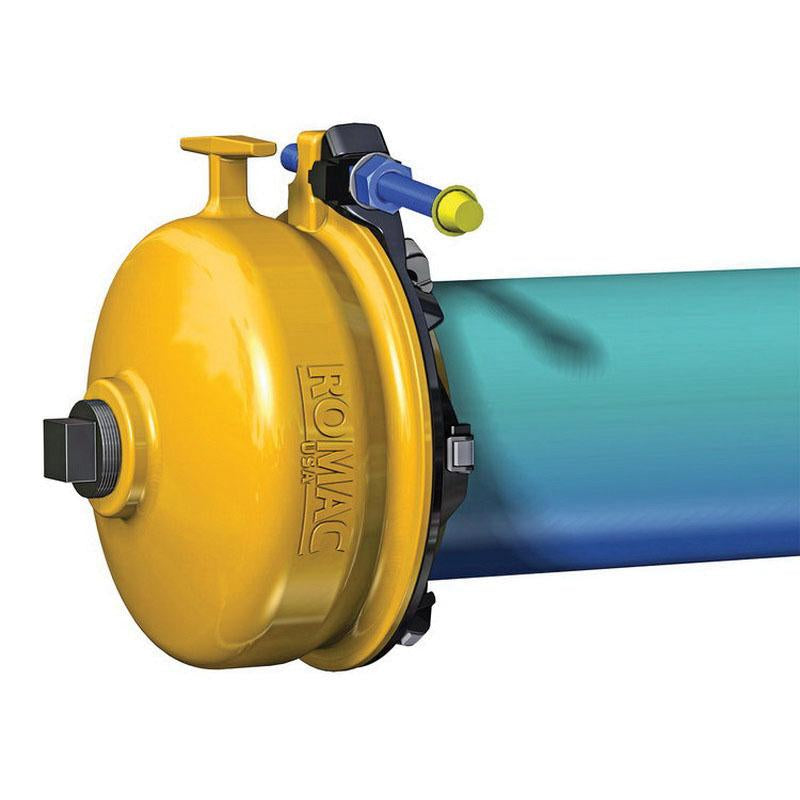

The ROMAC 269-091016 Alpha End Cap is designed for repeated use and can be used as a reliable pipe end seal for permanent installations. Standard alpha end caps cover IPS PVC through ductile iron pipe diameters. It provides a fast, easy way to cap plain-end pipe and has all the advantages as the original alpha coupling. For use with 8.6 to 9.1 in OD pipe.

• Designed for repeated use, the Alpha EC can also be used as a reliable pipe end seal for permanent installations
• Standard alpha end caps cover IPS PVC through ductile iron pipe diameters
• 2 in IP threaded outlet is standard

Product Highlights

The Romac Alpha End Cap installs fast with just one nut to tighten. It is suitable for IPS PVC through ductile iron pipe diameters.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 269-091016
• Country of Origin: Domestic

Technical Specifications

• Brand: Romac Industries
• Domestic/Import: Domestic
• Finish: ROMACOTE Fusion Bonded Epoxy Coated
• Fitting/Connector Type: Cap
• Length: 13.19 in
• Material: Ductile Iron
• Nominal Size: 8 in
• Pressure Rating: 350 psi
• ASTM: ASTM A-536 Grade 65-45-12, ASTM D-2000
• Collection: Alpha
• End Connection 1: Restraint Joint
• End Connections: Restraint Joint
• Fitting Size 1: 8
• Fitting Sizes: 8 in
• Origin: Domestic
• Pipe Size: 8 in
• Series: ALPHA Series
