Romac 268-091011 Alpha-FC-9.10 8in DI EC RSTR FCA SBR 304SS B&N (8.60-9.10)

Product Description

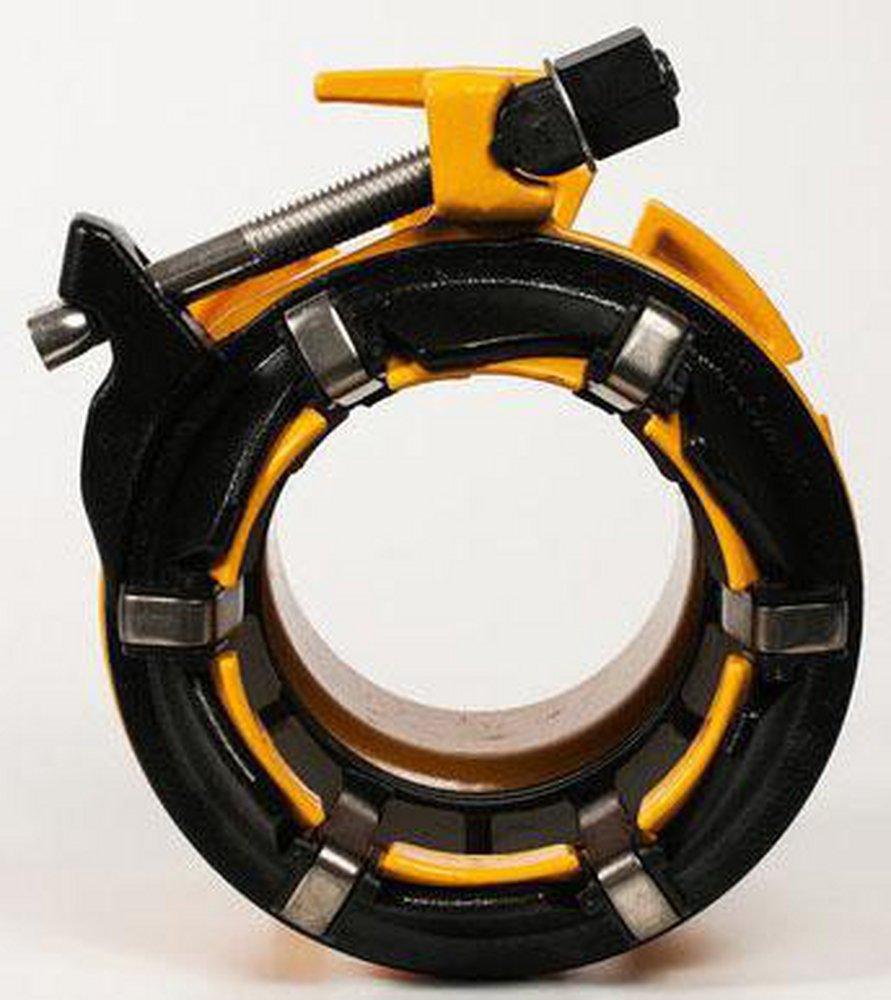

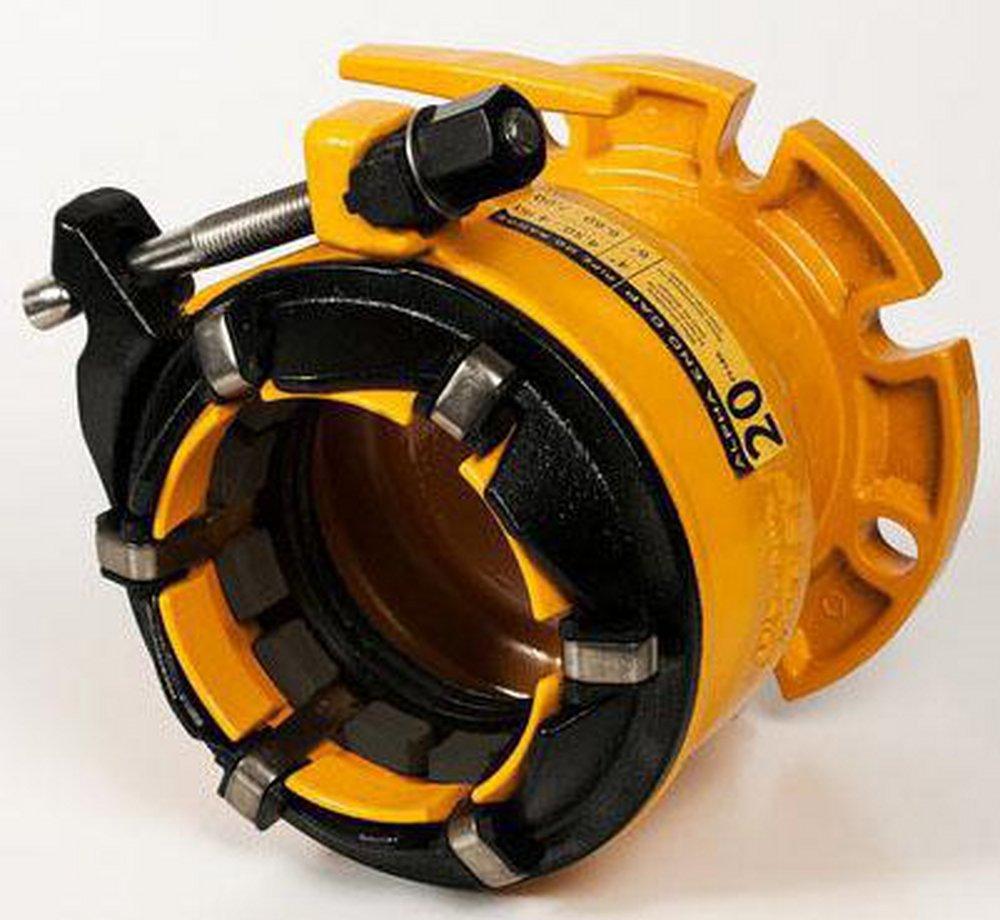

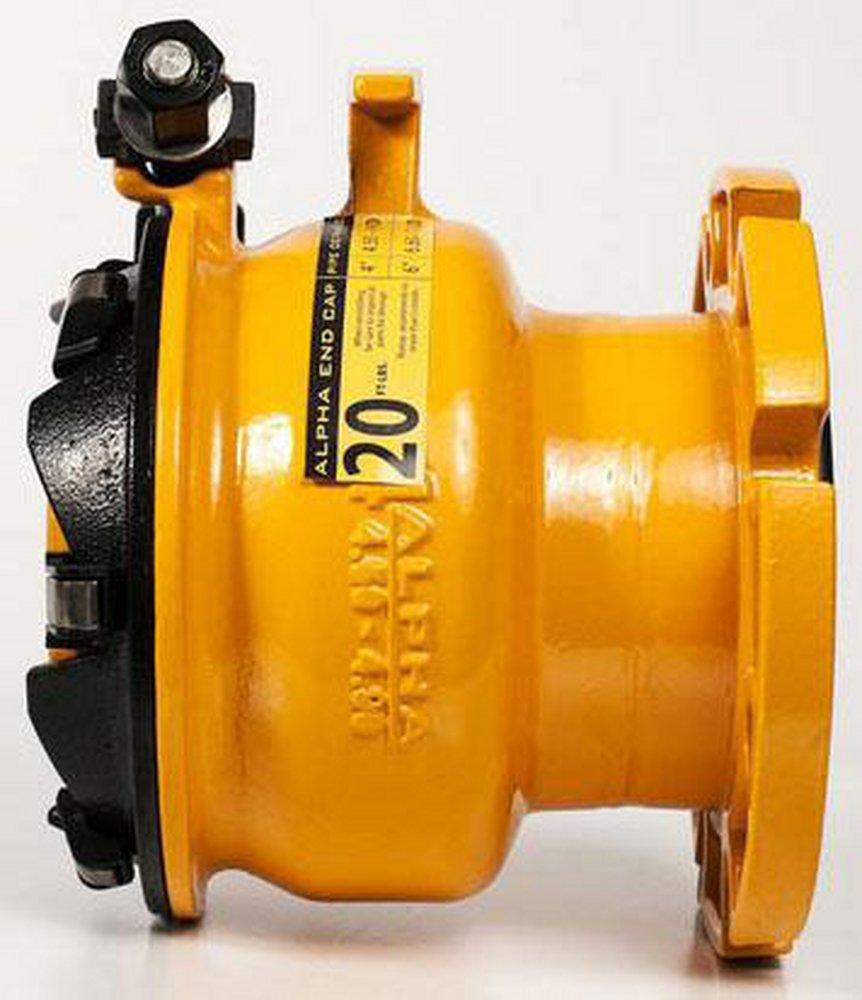

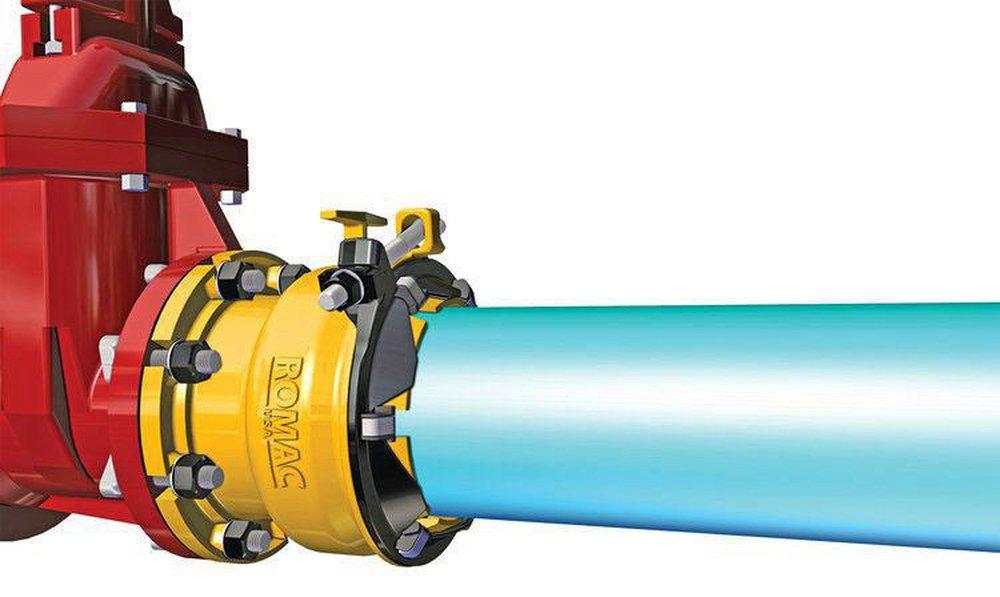

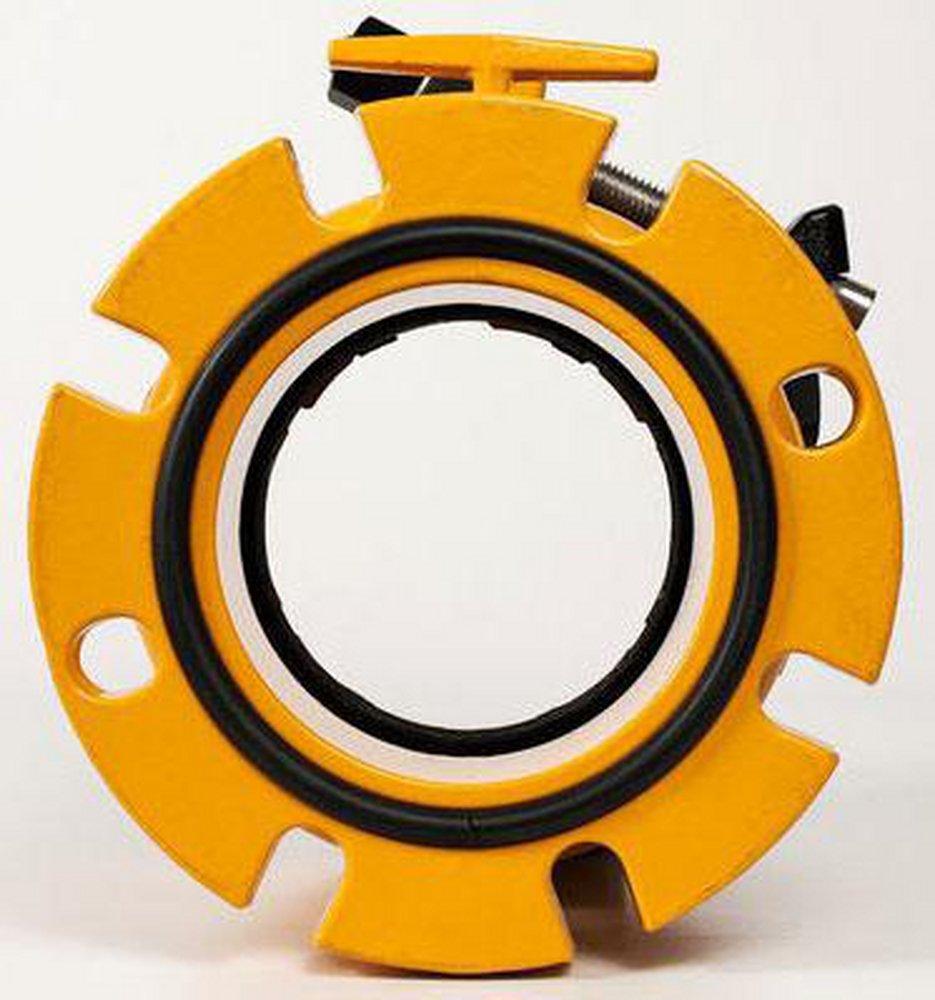

The ROMAC 268-091011 ALPHA-FC-9.10 is an 8in DI EC RSTR FCA SBR 304SS B&N (8.60-9.10) DI EPOXY COAT RESTRAINED FLANGED COUPLING ADAPTER. It features a wide range and is manufactured in the USA. All cast components are ductile iron, meeting ASTM A 536, grade 65-45-12 requirements. Suitable for use with cast iron, ductile iron, HDPE, and PVC pipe.

• Wide range
• Restrained flanged coupling adapter
• Manufactured in the USA

Product Highlights

The ROMAC 268-091011 is a restrained flanged coupling adapter made with ductile iron, plastic, rubber, and stainless steel.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 268-091011
• Country of Origin: USA

Technical Specifications

• ANSI: ANSI 372, ANSI 61, ANSI Class 125, ANSI Class 150
• ASTM: ASTM A-536 Grade 65-45-12, ASTM D-2000
• Application: Cast Iron Pipe, Ductile Iron Pipe, HDPE Pipe, PVC Pipe
• Coating: Romacote Fusion Bonded Epoxy
• End Connection 1: Flanged
• End Connection 2: Flanged
• End Connections: Flanged
• FM Approved: No
• Fits Pipe Size: 8 in
• Material: Ductile Iron, Plastic, Rubber, Stainless Steel
• Material Type: 304, Nylon, SBR
• NSF: NSF 372, NSF 61
• Product Type: Flanged Coupling Adapter
• Range (in): 8.6 in - 9.1 in
• UL Listed: Yes
