Romac 266-13301211 Alpha 12 in. Wide Range Restraint Coupling

Product Description

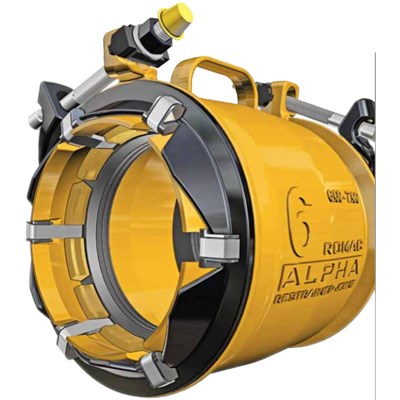

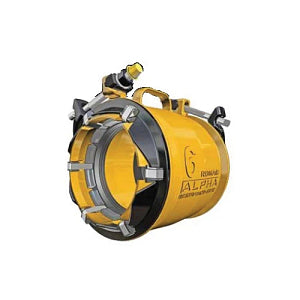

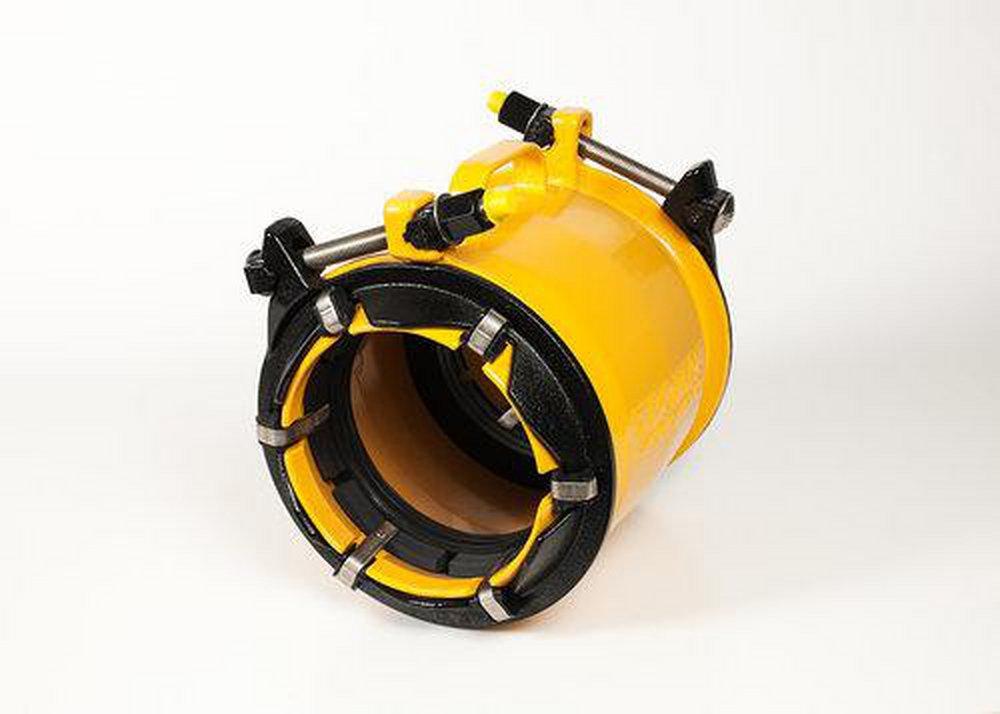

The ROMAC 266-13301211 Alpha Wide Range Restraint Coupling is a 12-inch coupling made of fusion-bonded epoxy ductile iron with a stainless steel hook and rubber gasket. It fits IPS PVC, cast iron, ductile iron, and HDPE pipes. Designed for easy, stab-fit installation, it tightens with just two nuts.

• Fits 12 in pipe size
• Constructed from high-strength ductile iron
• Accommodates up to 8 degrees of deflection

Product Highlights

The ROMAC Alpha restraint coupling ensures a secure and flexible connection for various pipe materials, simplifying installation and providing reliable performance.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 266-13301211
• Country of Origin: Domestic

Technical Specifications

• ANSI: ANSI 372, ANSI 61
• ASTM: ASTM A-536 Grade 65-45-12, ASTM D-2000
• Application: IPS PVC, Cast Iron, Ductile Iron, HDPE
• Coating: Fusion Bonded Epoxy
• End Connection 1: Gasket
• End Connection 2: Gasket
• End Connections: Gasket
• FM Approved: No
• Fits Pipe Size: 12 in
• Length: 13.3 in
• Material: Ductile Iron, Rubber
• Material Type: SBR
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Origin: Domestic
• Product Type: Restraint Coupling
• Range (in): 12.75 in - 13.30 in
• UL Listed: Yes
• Size: 12in
• Fitting Type: Couplings
• Connection Size: 12" x 12"
• Nominal: 12 in
• Pressure: 350 psi
• Finish: Epoxy-Coated
• Pipe Size: 12 in
• Pressure Rating: 350 psi
• Series: ALPHA Series
