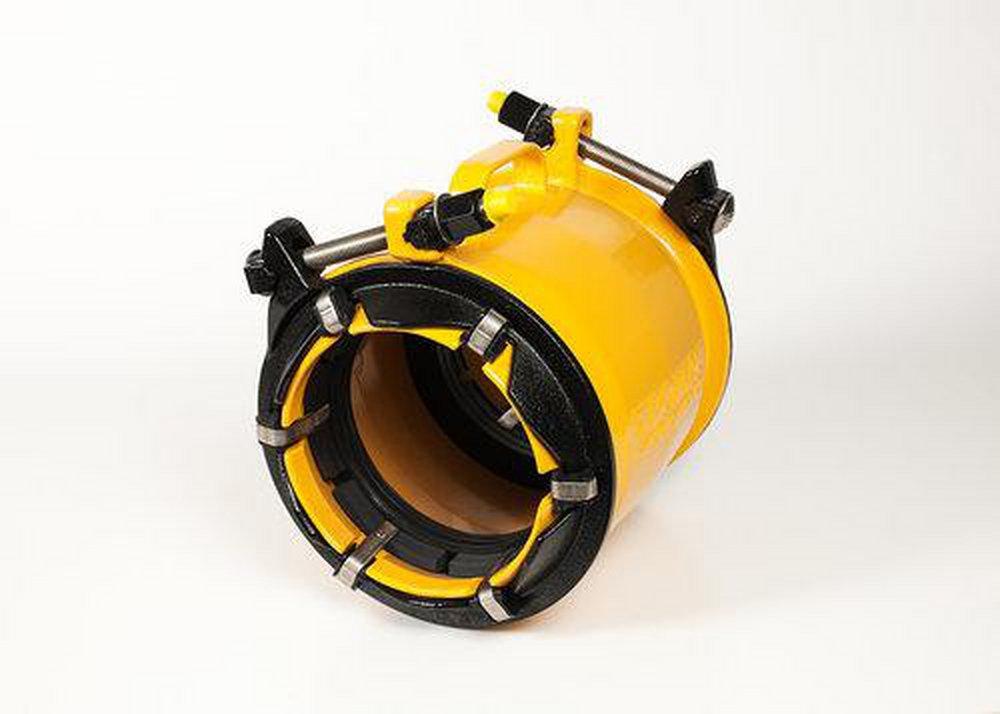

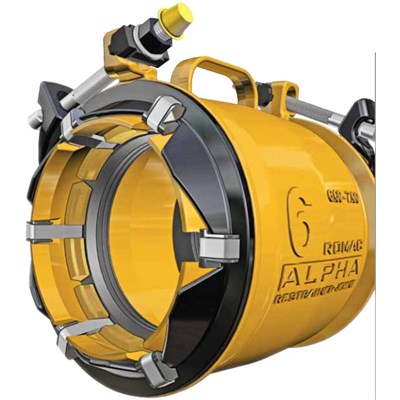

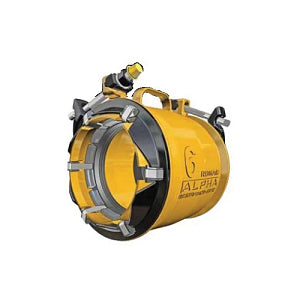

Romac 266-09101211 Alpha 8 in. Wide Range Restraint Coupling

Product Description

The ROMAC 266-09101211 Alpha™ wide range restraint coupling is designed for various applications. This coupling fits 8 in pipes and has a fusion-bonded epoxy coating. It is suitable for commercial, IPS PVC, cast iron, ductile iron, and HDPE applications. The coupling ensures a secure connection with a pressure rating of 350 psi.

• Cast components are high strength ductile iron
• Accommodates a wide range of pipe diameters
• One piece (no loose components)

Product Highlights

The Alpha coupling features a slab-fit installation and covers IPS PVC through DI pipe diameters without changing components.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 266-09101211
• Country of Origin: Domestic

Technical Specifications

• ANSI: ANSI 372, ANSI 61
• ASTM: ASTM A-536 Grade 65-45-12, ASTM D-2000
• Application: Commercial, IPS PVC, Cast Iron, Ductile Iron, HDPE
• Coating: Fusion Bonded Epoxy
• Collection: Alpha
• End Connection 1: Gasket
• End Connection 2: Gasket
• End Connections: Gasket
• FM Approved: No
• Fits Pipe Size: 8 in
• Length: 13.19 in
• Material: Ductile Iron, Rubber
• Material Type: SBR
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Origin: Domestic
• Product Type: Restraint Coupling
• Range (in): 8.60 in - 9.10 in
• UL Listed: Yes
• Finish: ROMACOTE Fusion Bonded Epoxy Coated
• Fitting/Connector Type: Coupling
• Nominal Size: 8 in
• Pressure Rating: 350 psi
• Fitting Type: Couplings
• Connection Size: 8" x 8"
