Romac 266-07001211 Alpha Wide Range Restrained Coupling 6 in Nominal

Product Description

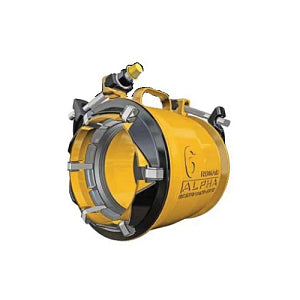

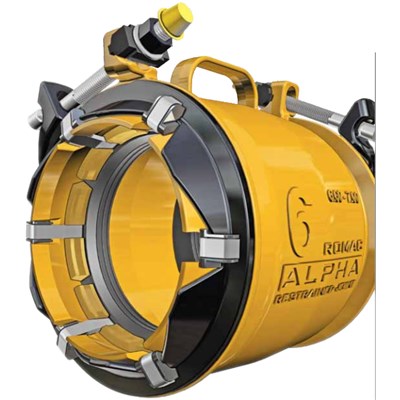

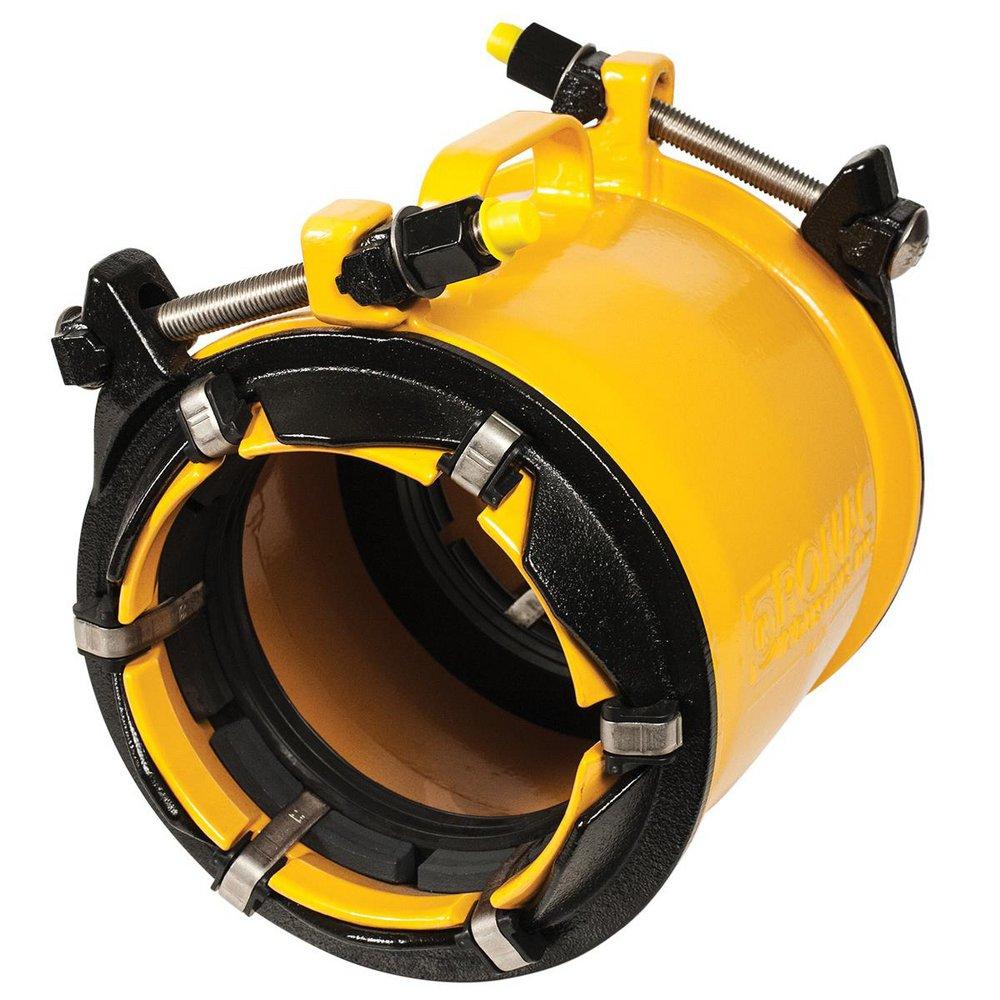

The Romac ALPHA 266-07001211 is a wide range restrained coupling with a 6 in nominal size. Constructed from high strength ductile iron, this coupling accommodates a wide range of pipe diameters. It features a one-piece design for fast, simple, slab-fit installation. Manufactured in the USA.

• Cast components are high strength ductile iron
• Accommodates a wide range of pipe diameters
• One piece (no loose components)

Product Highlights

The Romac ALPHA coupling ensures a secure connection for various pipe materials, offering reliability and ease of installation.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 266-07001211
• Country of Origin: Domestic

Technical Specifications

• Brand: Romac Industries
• Domestic/Import: Domestic
• Finish: ROMACOTE Fusion Bonded Epoxy Coated
• Fitting/Connector Type: Coupling
• Length: 11.98 in
• Material: Ductile Iron, Plastic, Rubber, Stainless Steel
• Nominal Size: 6 in
• Pressure Rating: 350 psi
• ANSI: ANSI 372, ANSI 61
• ASTM: ASTM A-536 Grade 64-45-12, ASTM D-2000
• Application: Cast Iron Pipe, Ductile Iron Pipe, HDPE Pipe, PVC Pipe, Residential
• Coating: Romacote Fusion Bonded Epoxy, Polyester
• Collection: Alpha
• FM Approved: No
• Fits Pipe Size: 6 in
• Material Type: 304, NBR, SBR
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Origin: Domestic
• Product Type: Joint Restraint
• Range (in): 6.60 in - 7.00 in
• UL Listed: Yes
• Size: 6in
• Fitting Type: Couplings
• Connection Size: 6" x 6"
