Romac 260-04130413651 Macro HP 3 inches 2-Bolt Coupling Wide (3.13-4.13)

Product Description

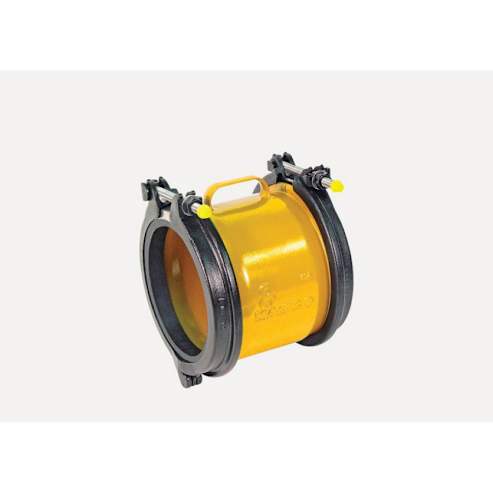

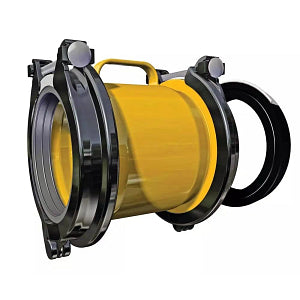

The ROMAC 260-04130413651 Macro HP 3" 2-Bolt Coupling is designed for strength and long life. It features ductile iron end rings and a center ring without welds. The coupling allows pipe deflection up to 10° on each end and provides cathodic protection.

• Designed for strength and long life
• Extended range gaskets
• Easy to handle and install

Product Highlights

This coupling is easy to install and handle, featuring segmented end rings and heavy-duty stainless steel bolts.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 260-04130413651
• Country of Origin: Domestic

Technical Specifications

• ANSI Specifications: ANSI 372, ANSI 61
• ASTM Specifications: ASTM A-536 Grade 65-45-12, ASTM D-2000
• AWWA Specifications: AWWA C-213, AWWA C-219
• Application: Asbestos Cement Pipe, Cast Iron Pipe, Steel Pipe
• Coating: Fusion Bonded Epoxy
• Collection: Macro HP
• FM Approved: No
• Fitting Size 1: 3 in
• Fitting Size 2: 3 in
• Fitting Sizes: 3 in
• Fitting Type: Coupling
• Height: 8-9/25 in
• High Pressure: 305
• Length: 8-19/50 in
• Material: Ductile Iron, Rubber, Stainless Steel
• Material Type: 304, EPDM
• NSF Certified: Yes
• NSF Specifications: NSF 372, NSF 61
• Origin: Domestic
• Range in: 3.13 in - 3.63 in
• UL Listed: No
• Waterworks Application: Sewer
• Weight: 12
• Width: 7-1/5 in
• Nominal Pipe Size (NPS): 3 in
• Brand: Romac Industries
• MPN: 260-04130413651
• For Use With: Steel, Cast Iron, Asbestos Cement, Plastic and Other Types of Pipe
• MFG Number: 260-04130413651
• Part Number: ROMMACROHP3
• Connection Size: 3 in.
• Includes: A/C Gasket
• Pressure Rating: 305 psi
• Master UPC: 95005265772
