Romac 242-1110 GripRing 10in GRAP-DI GR ACCY PK - STD B&N - SBR

Product Description

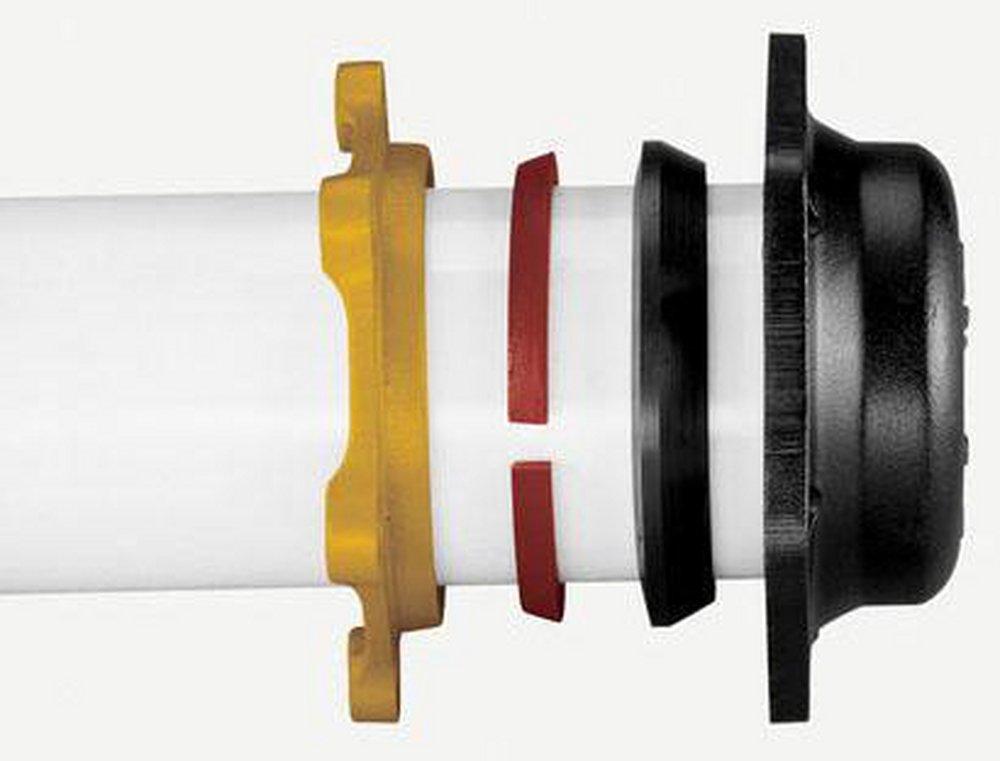

The ROMAC 242-1110 GripRing is a full circumferential mechanical joint restraint used on ductile iron pipes. This accessory pack is designed for 10-inch pipes and provides a secure grip. Rated to full working pressure of pipe. Gland is painted yellow to avoid confusion.

• Built in stop to prevent damage to pipe
• GripRing’s wedge action provides the restraint required for your application
• Flexes to accommodate deflection allowed in a mechanical joint

Product Highlights

The GripRing ensures reliable pipe restraint with its innovative wedge action and flexible design, suitable for sewer applications.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 242-1110
• Country of Origin: USA

Technical Specifications

• MATERIAL: ASTM A536 SHOP COATED DUCTILE IRON (GLAND/RING), 304 STAINLESS STEEL (GAP CAP) MATERIAL
• DESIGNATED SIZE: 10 INCH DESIGNATED SIZE
• BRAND: GRIPRING[TM] BRAND
• OUTSIDE DIAMETER: 11.1 INCH
• PRESSURE RATING: 350 PSI

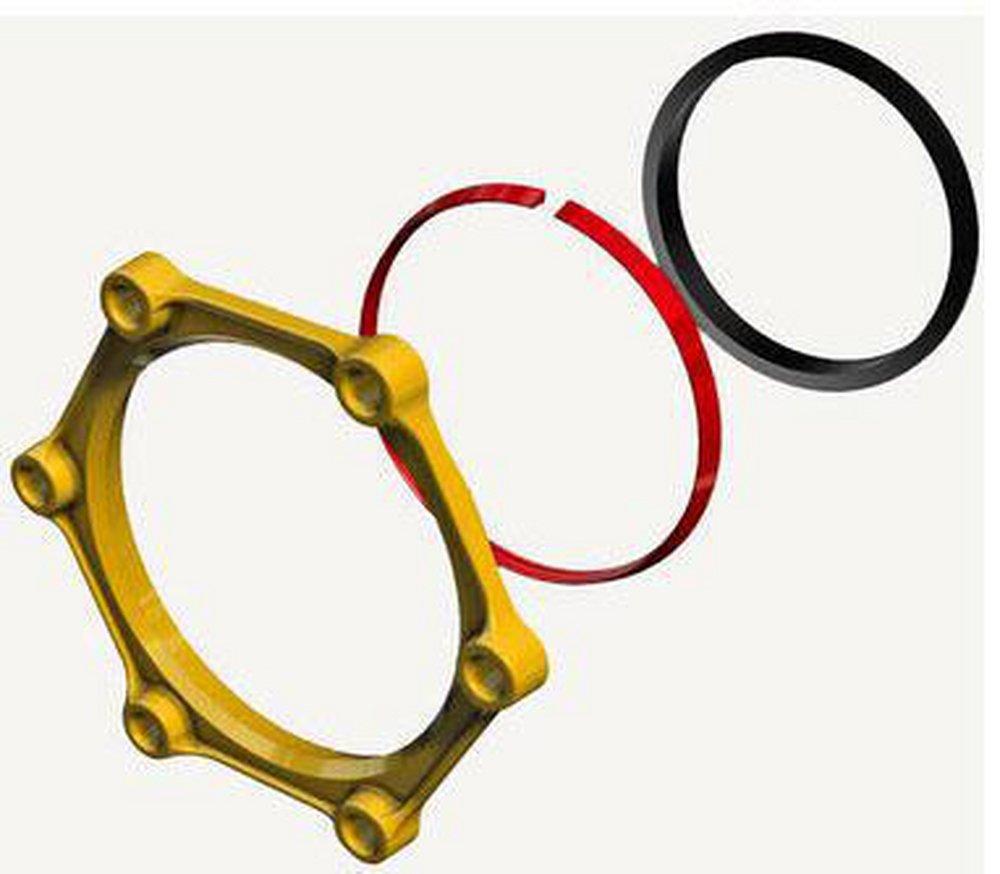

• INCLUDES: GLAND, RING, GAP CAP, GASKET, BOLT AND NUT
• ANSI: ANSI A21.11, ANSI C111
• ASTM: ASTM A-536 Grade 65-45-12, ASTM D-2000, ASTM F-1674-96
• AWWA: AWWA A-21.11, AWWA C-111
• Collection: GripRing
• End Connection 1: Mechanical Joint
• End Connection 2: Mechanical Joint
• End Connections: Mechanical Joint
• Fits Pipe Size: 10 in
• Material: Ductile Iron, Low Alloy Steel, Rubber, Stainless Steel
• Material Type: 304, SBR
• NSF Certified: No
• Product Type: Bolt and Nut, Gap Cap, Gasket, Gland, Ring
• Screw Head: T Head
• UL Listed: Yes
• Waterworks Application: Sewer
