Romac 242-0863 Grip Ring Accessory Pack 8 in Iron/Stainless Steel

Product Description

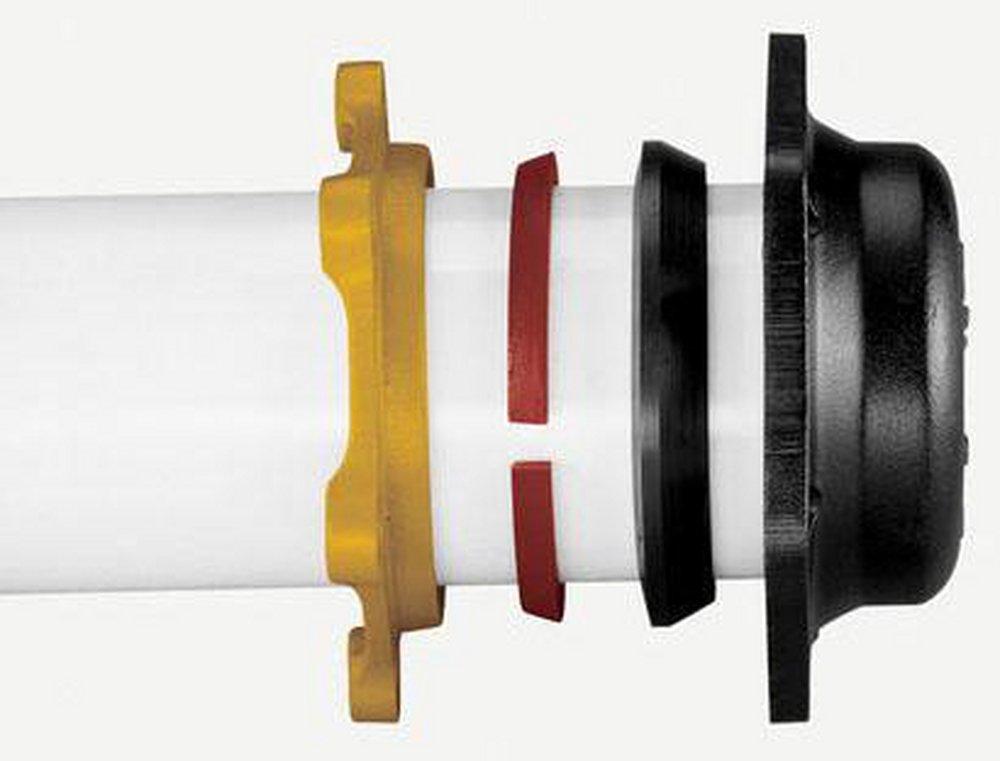

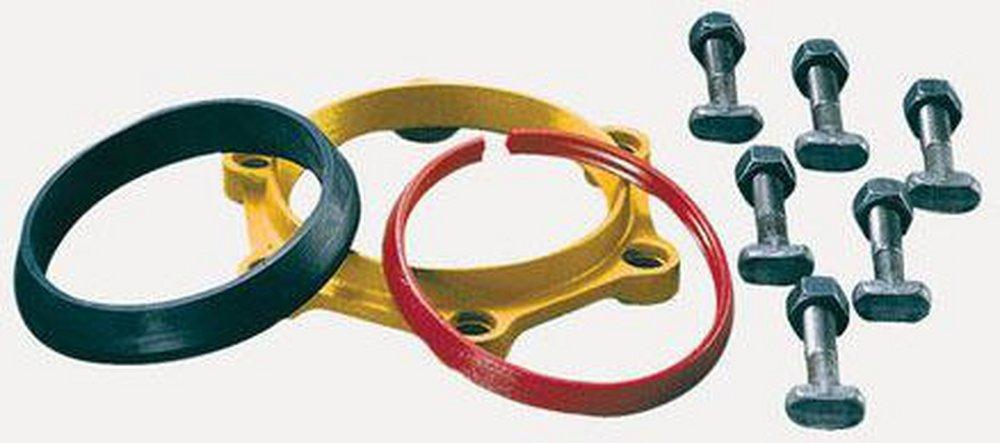

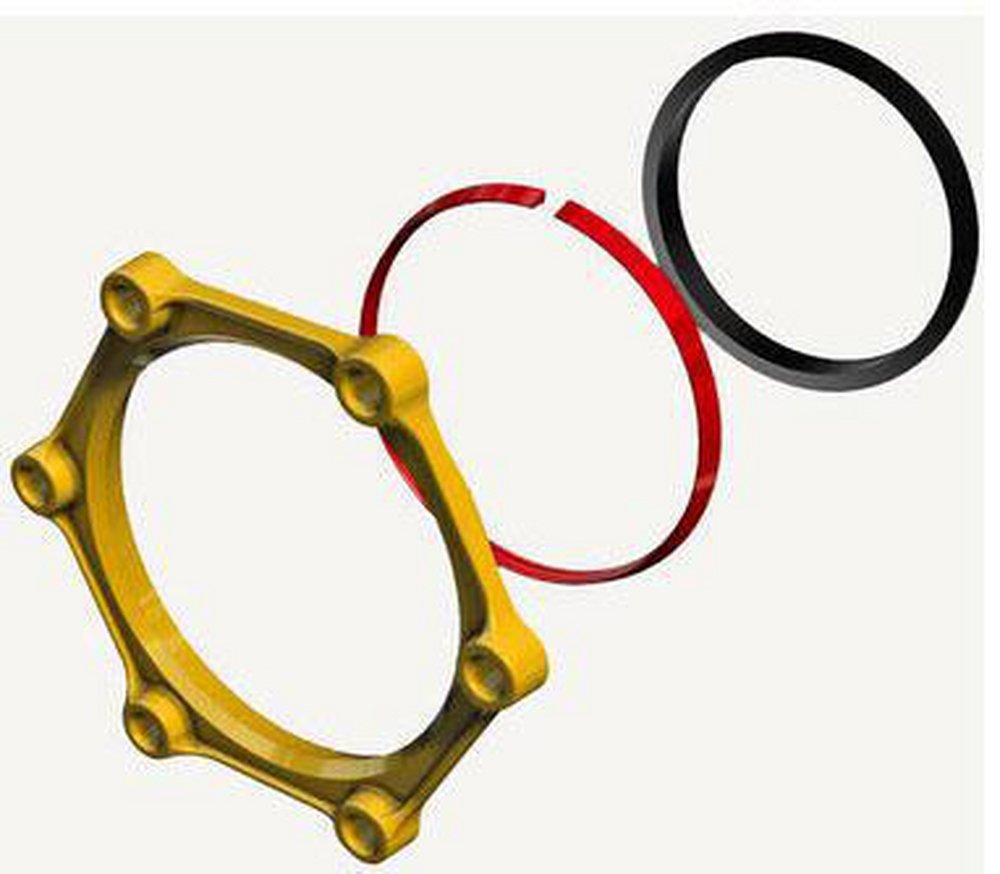

The ROMAC 242-0863 grip ring accessory pack provides full circumferential restraint of mechanical joints. Constructed from iron and stainless steel, this pack is designed for 8 inch IPS pipes. It has an 8.63 inch OD dimension and a pressure rating of 350 psi.

• Provides full circumferential restraint of mechanical joints
• Built in stop to prevent damage to pipe
• GripRing's wedge action provides the restraint required for your application

Product Highlights

The ROMAC grip ring accessory pack is made in the USA and rated to full working pressure of pipe.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 242-0863
• Country of Origin: United States

Technical Specifications

• Nominal Size: 8 inch IPS
• Connection Type: Mechanical Joint
• Bolt Size: 3/4 inch x 4 inch
• Standards: ASTM A 536 Grade 65-45-12, ASTM D 2000 MBA 710, AWWA C111
• Material: Iron/Stainless Steel
• Finish: Red Grip Ring, Painted Yellow Gland
• Pressure Rating: 350 psi
• MPN: 242-0863
• Brand: Romac
• Country of Origin: United States
• ANSI: ANSI A21.11, ANSI C111
• ASTM: ASTM A-536 Grade 65-45-12, ASTM D-1785, ASTM D-2000, ASTM D-2241, ASTM F-1674-96
• AWWA: AWWA A-21.11, AWWA C-111, AWWA C-151, AWWA C-900, AWWA C-909 2002
• Collection: GripRing
• Fits Pipe Size: 8 in
• Material Type: 304, SBR
• NSF Certified: No
• Product Type: Accessory Pack
• Screw Head: T Head
• UL Listed: Yes
• Waterworks Application: Sewer
• DESIGNATED SIZE: 8 INCH
• OUTSIDE DIAMETER: 8.63 INCH
