Romac 229-090500 Rfca-Pvc-9.05 8in Di Sc Rstr Fca Std B&N Sbr (8.63-9.05) REPLACEMENT MPN

Product Description

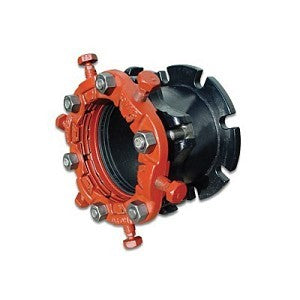

The ROMAC 229-090500 RFCA-PVC-9.05 is an 8 inch DI SC RSTR FCA STD B&N SBR shop coated DI RES FLGD CPL APTR for PVC pipe. It provides a restrained flexible flanged to plain end connection. This coupling adapter has a flanged end style and is made of ductile iron with a shop coated finish.

• Ductile Iron Restraining Bolts, (1) 8.63 to 9.05 in Styrene Butadiene Rubber Gasket, (6) 3/4 x 3-1/2 in UNC Rolled Thread Standard T-Head Bolts and Heavy Hex Nuts
• ASTM A 536 Grade 65-45-12 Flange|ASTM D2000 Gasket|AWWA C111 Bolt and Nut|Meets AWWA C219|FM Approved
• Used to Provide a Restrained Flexible Flanged to Plain End Connection and For PVC Pipe

Product Highlights

The ROMAC coupling adapter is designed for providing a restrained flexible flanged to plain end connection for PVC pipe.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 229-090500
• Country of Origin: US

Technical Specifications

• Fitting/Connector Type: Adapter
• Nominal Size: 8 in
• End Style: Flange
• Finish: Shop Coated
• Domestic/Import: Import
• Length: 9-1/4 in
• Material: Ductile Iron
• Pressure Rating: 275 psi
• Series: RFCA
• Brand: Romac
• UNSPSC: 40171704
• Alternate Part Number 1: RFCA-PVC 8.63-9.05
• Manufacturer: Romac Industries
• Manufacturer Part Number: 229-090500
