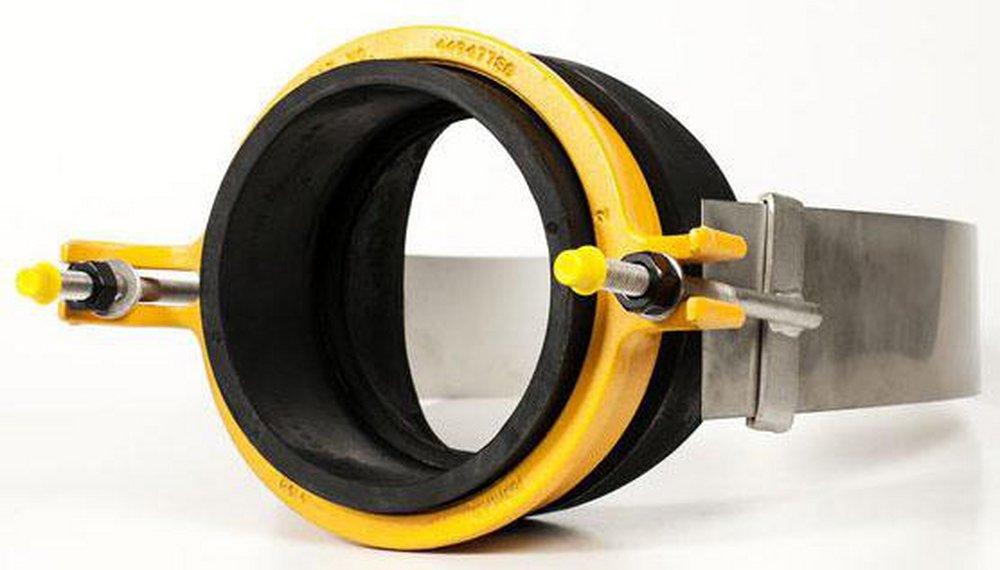

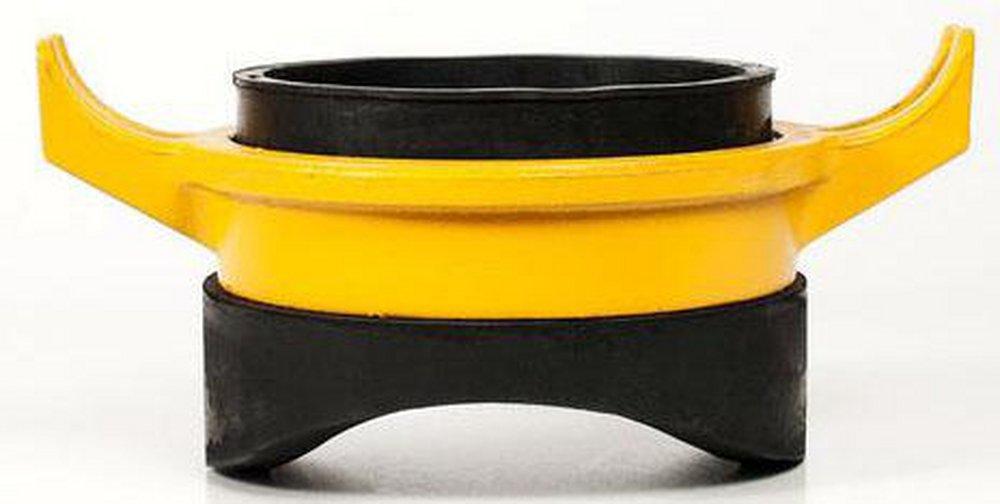

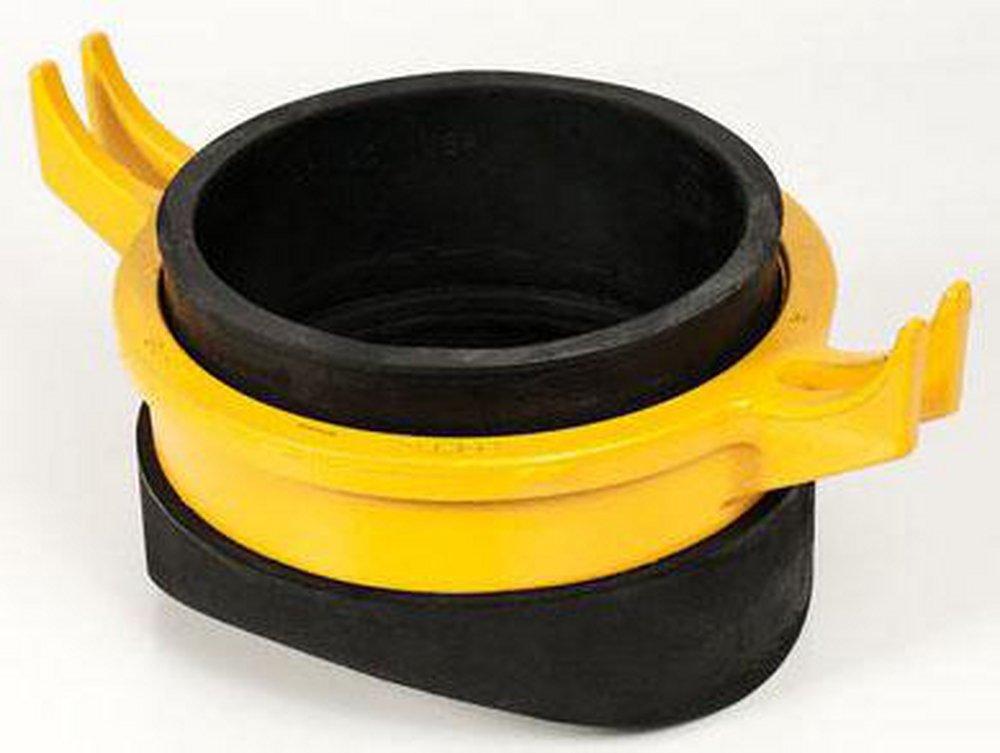

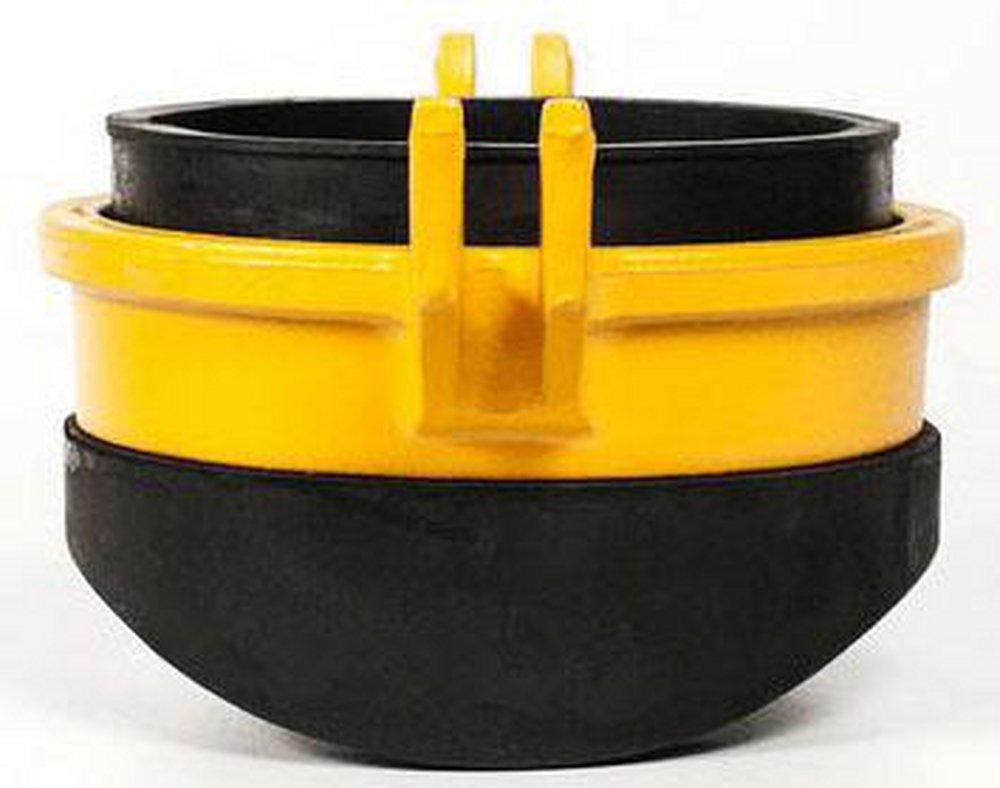

Romac 218-42154 cb-4.215 sewer saddle 6-12nom (48 strap) sdr35 connection

Product Description

The Romac 218-42154 CB-4.215 sewer saddle with 48 in strap is designed for creating branch outlets. Constructed from ductile iron, it fits pipe sizes from 6 to 12 inches and has a pressure rating of 7 psi. It is compatible with steel, cast iron, asbestos cement, plastic, and other pipe types.

• Saddle body cast from ductile iron, meeting ASTM A536, Grade 65-45-12
• Gasket made from virgin styrene butadiene rubber compound for water and sewer service in accordance with ASTM D 2000 MBA 710
• Strap-type 304 stainless steel, 3-1/2 in wide to spread out clamping forces on the pipe

Product Highlights

Durable sewer saddle for creating branch outlets with a wide range of pipe compatibility.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 218-42154
• Country of Origin: US

Technical Specifications

• Finish: Shop-Coated
• Fits Pipe Size: 6 to 12 in
• Pressure Rating: 7 psi
• Saddle Material: Ductile Iron
• Series: CB
• Material: DUCTILE IRON (BODY), SBR (GASKET), 304 STAINLESS STEEL (U-BOLT/NUT/WASHER/STRAP)
• Material Specification: ASTM A536/D2000
• Nominal Pipe Size: 6 TO 12 INCH
• Nominal Branch Size: 4 INCH
• Pipe Outer Diameter: 6.27 TO 14.4 INCH
• Branch Outer Diameter: 4.215 INCH
• Strap Size: 48 INCH
• Used On: STEEL, CAST IRON, ASBESTOS CEMENT, PLASTIC AND OTHER TYPES OF PIPE
• Model: CB
• Coating: Yellow Shop Coated
• Collection: Style CB
• Fitting Type: Saddle, Wide Strap
• Material Type: 304, SBR
• NSF Certified: No
• Tap Size: 4
• UL Listed: No
• Type: Sewer Saddle
• Connection Type: 4 in Clamp
• Brand: Romac
• UNSPSC: 40175307
• Country of Origin: US
• Manufacturer: Romac Industries
• Manufacturer Part Number: 218-42154
