Romac 201-02380238500 501 transition coupling 2 in

Product Description

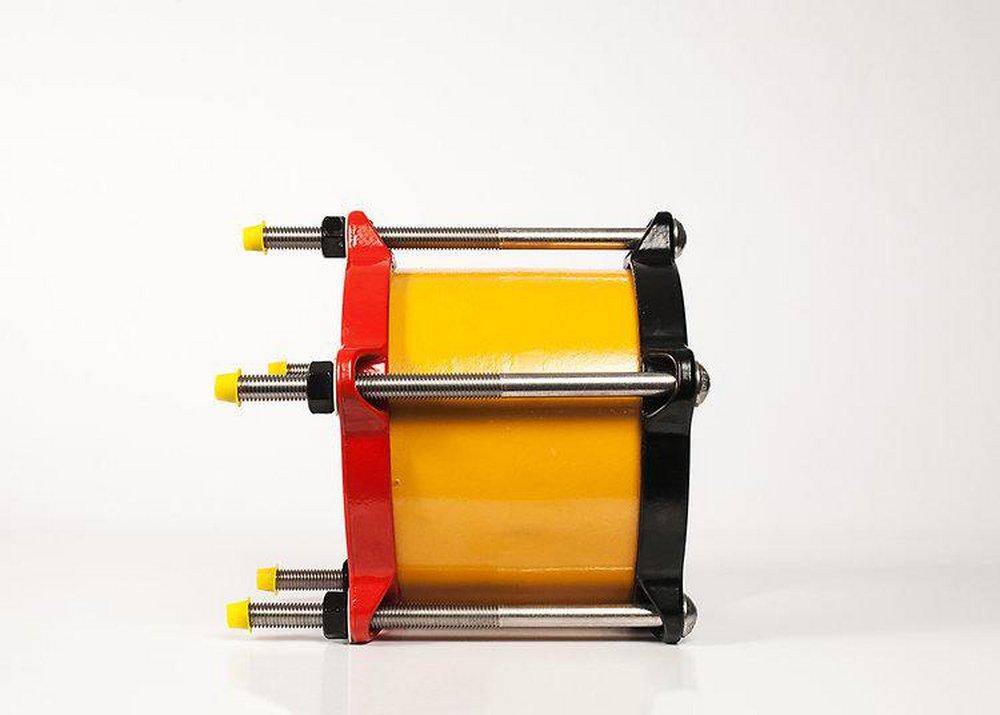

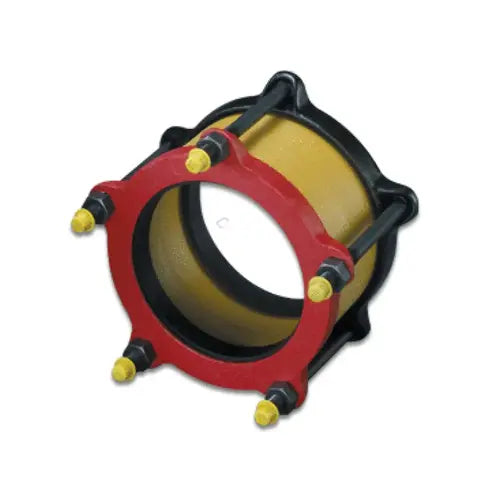

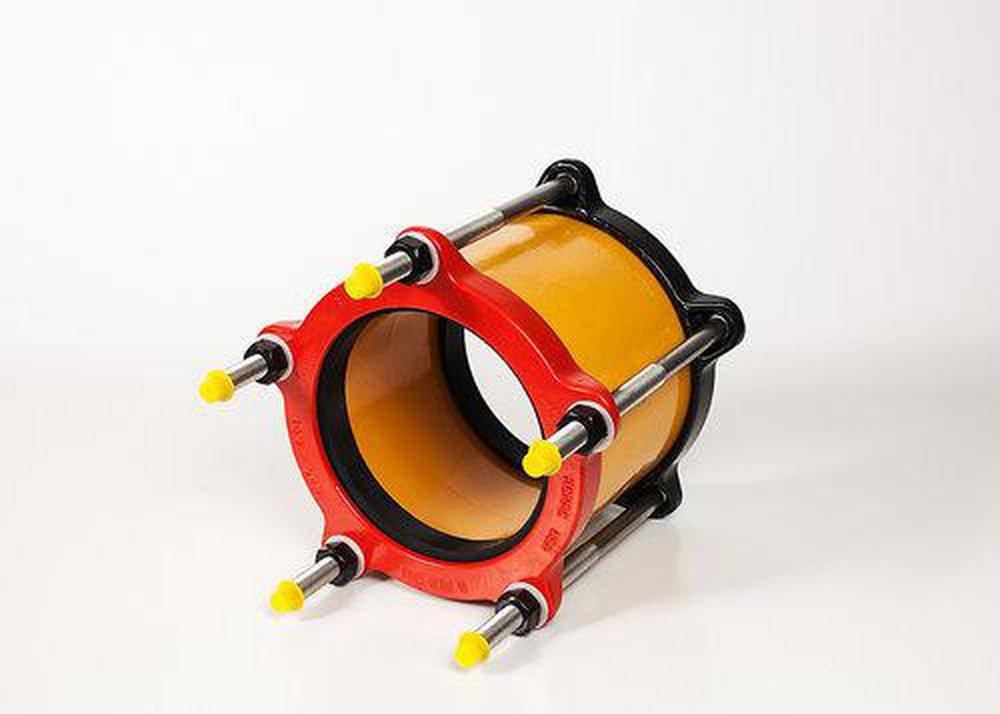

The ROMAC 201-02380238500 is a 501 transition coupling designed for use with standard steel, copper, and PVC pipe. It flexibly couples pipes of the same or different diameters. This coupling is compatible with steel, cast iron, asbestos cement, and plastic pipes, with a working pressure up to 260 psi.

• Ductile iron straight, transition and reducing coupling
• Red color code
• Made in USA

Product Highlights

The ROMAC 501 transition coupling is ideal for joining pipes of similar or dissimilar materials and diameters.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 201-02380238500
• Country of Origin: USA

Technical Specifications

• Department: PLUMBING - ALL
• ANSI: ANSI 372, ANSI 61
• ASTM: ASTM A-536 Grade 65-45-12, ASTM D-2000 MBA 710
• Application: Asbestos Cement Pipe, Cast Iron Pipe, Plastic Pipe, Steel Pipe
• Coating: Shop Coated
• Collection: Style 501
• End Connection 1: Restraint Joint
• End Connection 2: Restraint Joint
• End Connections: Restraint Joint
• FM Approved: No
• Fitting Size 1: 2
• Fitting Size 2: 2
• Fitting Sizes: 2 in
• Fitting Type: Coupling
• Length: 5
• Material: Ductile Iron
• Material Type: SBR
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Pressure - High: 260
• Range (in): 2.12 in - 2.38 in
• UL Listed: No
• Nominal Size: 2 in
• Series: 501
• Domestic/Import: Domestic
• Finish: Shop Coated
• Pressure Rating: 260 psi
• UNSPSC: 40172604
• Alternate Part Number 1: 501-2.38 X 2.38 X 5
• MFG Number: 201-02380238500
• Part Number: ROM501238X238X5
