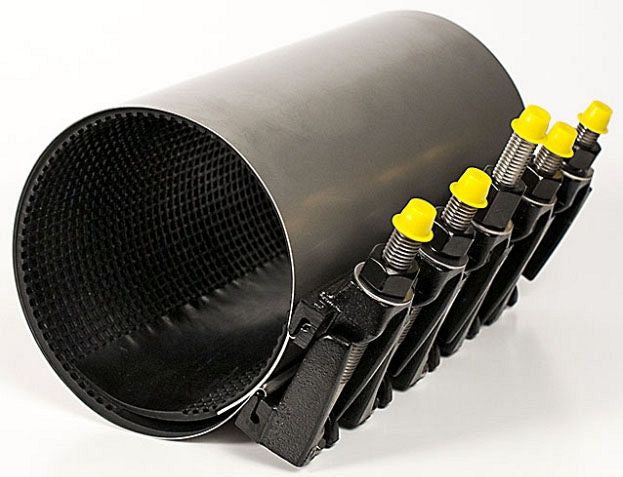

Romac 171-135520000 cl1-13.55x20 full circle repair clamp

Product Description

The ROMAC 171-135520000 is a full circle repair clamp designed for pipe repair. This clamp is constructed from 304SS and is a one-section clamp. It is designed to provide a reliable and durable solution for repairing pipes.

• Full Circle Repair Clamp
• 1 Section
• 304SS

Product Highlights

Full circle repair clamp made from 304SS with one-section design.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 171-135520000

Technical Specifications

• Master UPC: 95005220598
• 1-SECTION TYPE: 1 SECTION
• E-COAT EPOXY (LUG) FINISH: PROCESS CAST
• REMOVABLE LUG INCLUSIONS/FEATURES: REMOVABLE LUG
• APPLICABLE STANDARD: NSF 61, AWWA C230
• MATERIAL: ASTM A240 304 STAINLESS STEEL (SHELL), ASTM A536 DUCTILE IRON (LUG), AWWA C111 STEEL ALLOY (BOLT AND NUT), ASTM A240 304 STAINLESS STEEL (ARMOR)
• ASTM A536 DUCTILE IRON BODY MATERIAL: ASTM A536 DUCTILE IRON
• 8 BOLT(S): 8 BOLT(S)
• ASTM D2000 SBR GASKET MATERIAL: ASTM D2000 SBR
• MODEL: CL1
• NOMINAL PIPE SIZE: 12 INCH
• CLAMP RANGE: 13.15 TO 13.55 INCH
