Romac 171-135512000 CL1-13.55x12 12in SS F/C RC SBR (13.15-13.55)

Product Description

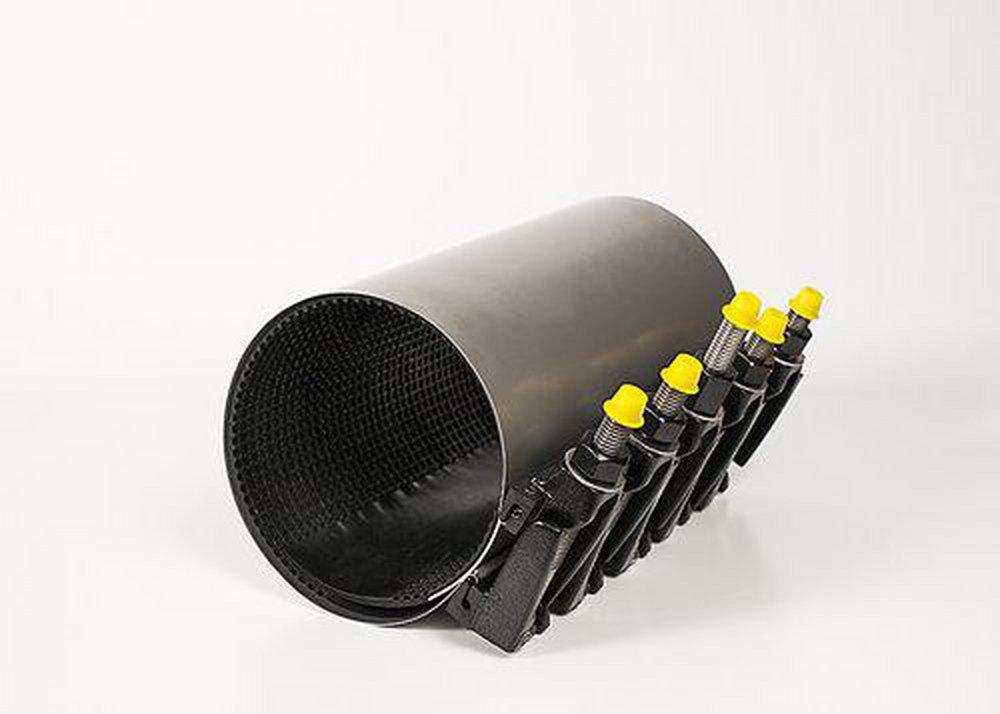

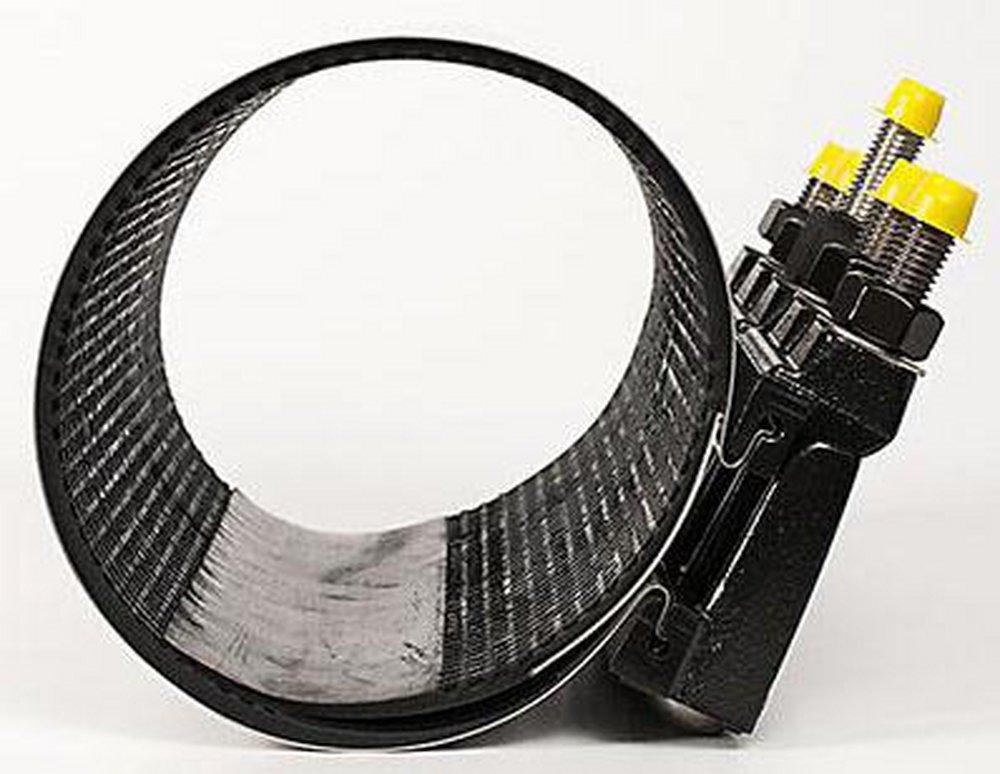

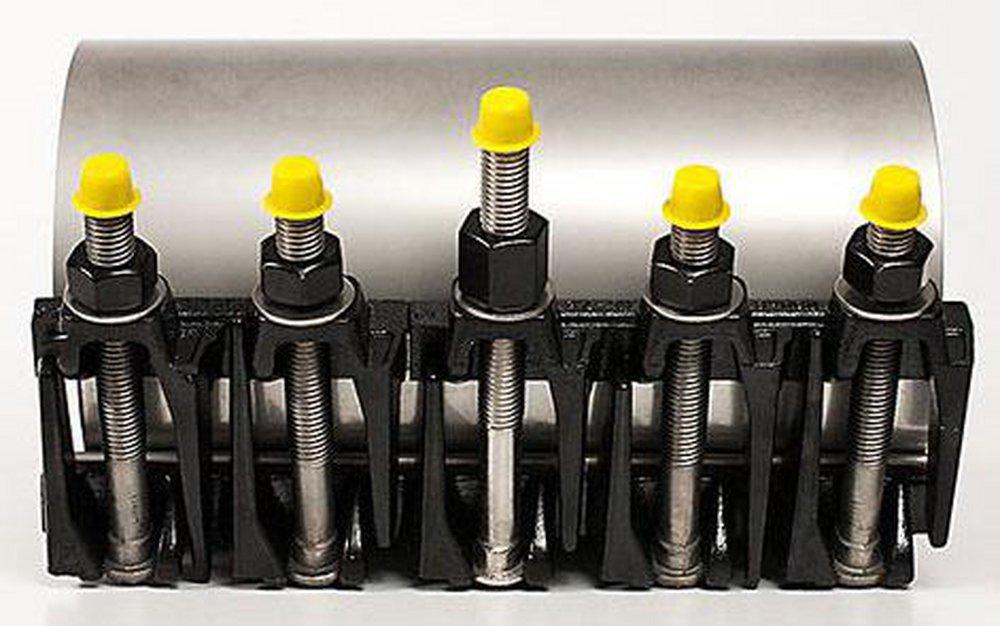

The Romac 171-135512000 CL1-13.55x12 is a full circle repair clamp. Compatible with steel, cast iron, asbestos cement, and plastic pipes. Features a heavy gauge 304 stainless steel armor bonded to the gasket to bridge the gap at the lug area. Made in USA.

• Compatible with steel, cast iron, asbestos cement, plastic, other types of pipe
• High strength low alloy steel trackhead bolts
• Heavy gauge 304 stainless steel armor bonded to gasket to bridge gap at lug area

Product Highlights

This repair clamp features E-coat for improved corrosion resistance and a shell hemmed to strengthen engagement with lugs.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 171-135512000
• Country of Origin: USA

Technical Specifications

• 1-SECTION TYPE: 1 SECTION
• E-COAT EPOXY (LUG) FINISH: E-COAT EPOXY (LUG)
• 12 INCH: 12 INCH
• REMOVABLE LUG INCLUSIONS/FEATURES: REMOVABLE LUG
• ASTM A536 DUCTILE IRON BODY MATERIAL: ASTM A536 DUCTILE IRON
• 12 INCH NOMINAL PIPE SIZE: 12 INCH
• ASTM D2000 SBR GASKET MATERIAL: ASTM D2000 SBR
• 5 BOLT(S): 5
• CLAMP RANGE: 13.15 TO 13.55 INCH
• PROCESS CAST: PROCESS CAST
• MATERIAL: ASTM A240 304 STAINLESS STEEL (SHELL), ASTM A536 DUCTILE IRON (LUG), AWWA C111 STEEL ALLOY (BOLT AND NUT), ASTM A240 304 STAINLESS STEEL (ARMOR)
• APPLICABLE STANDARD: NSF 61, AWWA C230
• CL1 MODEL: CL1
• Brand: Romac Industries
• Category: Water
• ASTM: ASTM A-240, ASTM A-536 Grade 65-45-12, ASTM D-2000 MAA 610
• AWWA: AWWA C-111, AWWA C-230
• Application: Steel Pipe, Cast Iron Pipe, Asbestos Cement Pipe, Plastic Pipe
• Coating: E-Coat Epoxy
• Collection: Style CL1
• Fits Pipe Size: 12 in
• Length: 12
• Material Type: 304, SBR
• NSF Certified: Yes
• Product Type: Repair Clamp
• Range (in): 13.15 in - 13.55 in
• UL Listed: No
• Weight: 25
