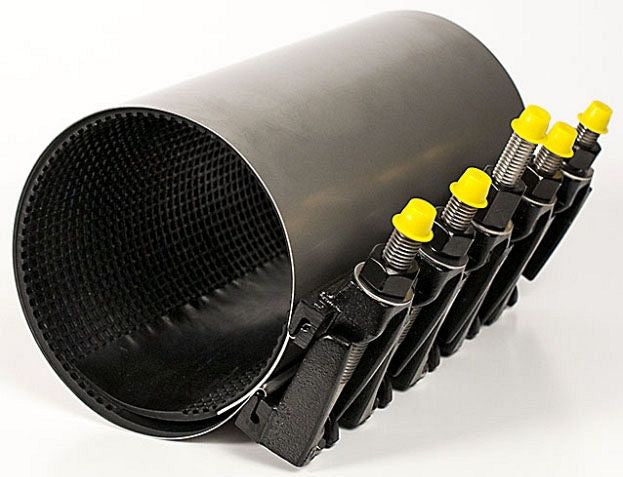

Romac 171-111020000 Full Circle Repair Clamp 10 in Ss

Product Description

The ROMAC 171-111020000 is a full circle repair clamp designed to stop leaks and restore integrity in damaged pipe sections. Built from 304 stainless steel with an SBR (styrene-butadiene rubber) gasket, this single-section clamp is engineered for reliable service on cast iron pipe with an outside diameter range of 10.70 to 11.10 inches. Cast iron lugs provide secure bolt-down clamping force around the full circumference of the pipe. It is installed by licensed plumbers and pipe fitters in municipal water, industrial, and commercial piping systems where a durable, full-coverage repair is required.

This clamp is suited for 10-inch cast iron pipe applications where the outside diameter falls between 10.70 and 11.10 inches. The full circle, single-section design wraps completely around the pipe, distributing clamping load evenly and sealing the damaged area without requiring a pipe cut or section replacement. Typical installations include water mains, service lines, and industrial process piping. The 304 stainless steel shell resists corrosion in buried and above-ground environments.

Key Features

• Full circle, single-section design for uniform 360-degree coverage and sealing
• 304 stainless steel shell for corrosion resistance in buried and exposed installations
• SBR gasket material provides flexible, durable sealing performance
• Cast iron lugs deliver robust bolt-down clamping force
• Fits cast iron pipe outside diameters from 10.70 to 11.10 inches

Compatibility

Designed for use on cast iron pipe with an outside diameter range of 10.70 to 11.10 inches, corresponding to nominal 10-inch pipe. Confirm actual outside diameter before installation.

Installation Notes

Installation is typically performed by licensed plumbers or pipe fitters in accordance with local plumbing codes and AWWA guidelines. Shut off and depressurize the affected line before fitting the clamp. Clean the pipe surface thoroughly in the repair area to ensure proper gasket seating. Tighten bolts evenly in an alternating pattern to achieve uniform gasket compression — do not overtighten one side before the other.

Technical Specifications

• Pipe Material: Cast Iron
• Nominal Pipe Size: 10 inches
• Outside Diameter Range: 10.70 to 11.10 inches
• Clamp Length: 20 inches
• Shell Material: 304 Stainless Steel
• Gasket Material: SBR (Styrene-Butadiene Rubber)
• Lug Material: Cast Iron
• Sections: 1
• UPC: 95005220549

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 171-111020000
