Romac 171-094020000 Cl1-9.40 x 20 Ss Iron Lug Repair Clamp 9.00-9.40 8 Nom

Product Description

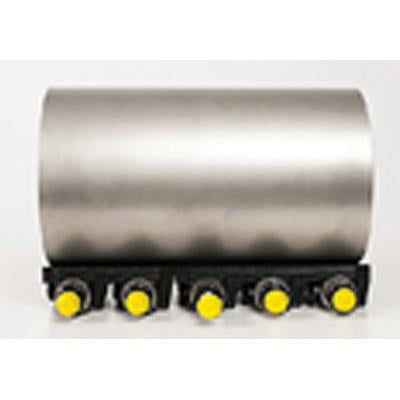

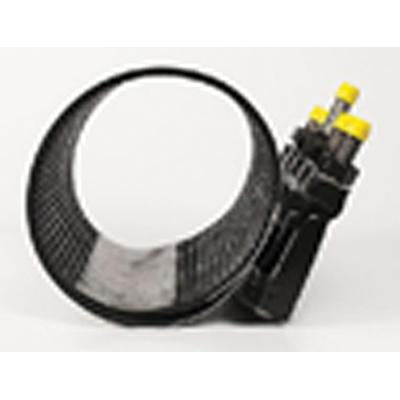

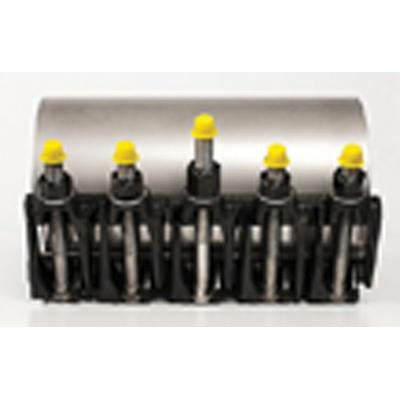

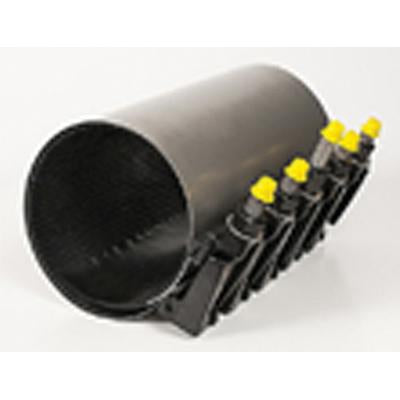

The ROMAC 171-094020000 CL1-9.40 X 20 SS Iron Lug Repair Clamp is designed for pipe repair. It fits pipe sizes of 8 inches with a clamping range of 9 to 9.4 inches. Constructed with a stainless steel body and SBR gasket, it conforms to ASTM A240/A536/D2000 MAA 610 and AWWA C111 material standards.

• Single Section Cast Lug Repair Clamp
• Fits Pipe Size: 8 in
• Stainless Steel Body

Product Highlights

Full circle repair clamp with 304 stainless steel shell and ductile iron lugs.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 171-094020000

Technical Specifications

• Additional Information: 304 Stainless Steel Material Construction
• Body Material: Stainless Steel
• Bolt Size: 5/8 in Dia x 7 in L
• Clamping Range: 9 to 9.4 in
• Fits Pipe Size: 8 in
• Gasket Material: SBR
• Material Standard: ASTM A240/A536/D2000 MAA 610, AWWA C111
• Number of Bolts: 8
• Pressure Rating: 150 psi
• Series: CL1 Series
• 1-SECTION TYPE: 1 SECTION
• E-COAT EPOXY (LUG) FINISH: E-COAT EPOXY (LUG)
• CLAMP RANGE: 9 TO 9.4 INCH
• NOMINAL PIPE SIZE: 8 INCH
• BOLT(S): 8
• MODEL: CL1
• REMOVABLE LUG INCLUSIONS/FEATURES: REMOVABLE LUG
• SHELL MATERIAL: ASTM A240 304 STAINLESS STEEL
• LUG MATERIAL: ASTM A536 DUCTILE IRON
• BOLT AND NUT MATERIAL: AWWA C111 STEEL ALLOY
• ARMOR MATERIAL: ASTM A240 304 STAINLESS STEEL
• APPLICABLE STANDARD: NSF 61, AWWA C230
• PROCESS: CAST
• SIZE: 20 INCH
