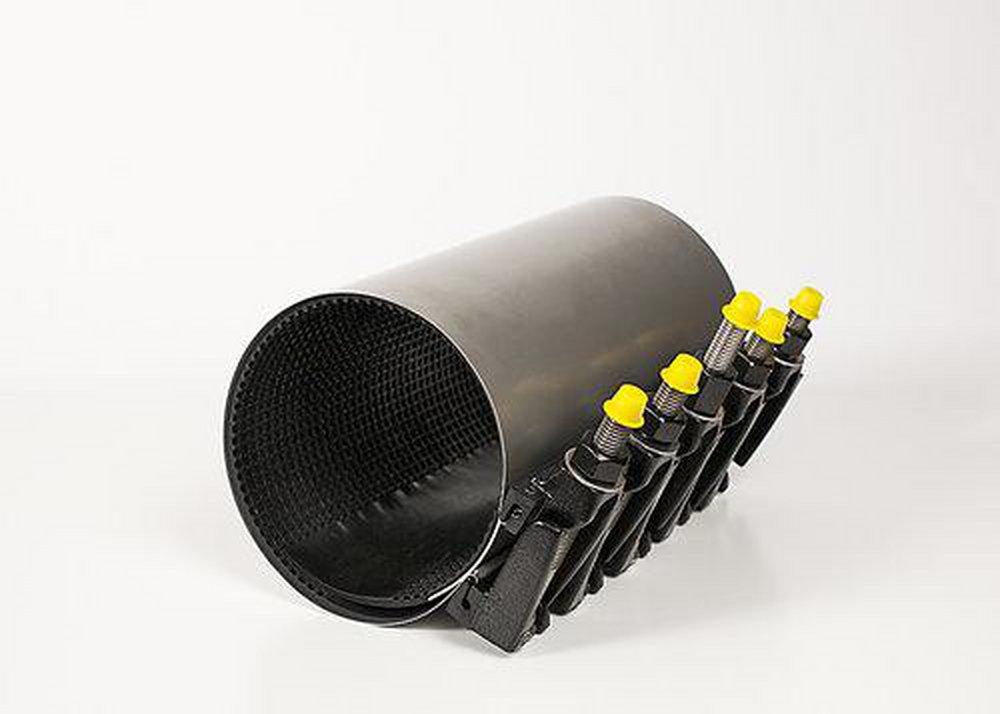

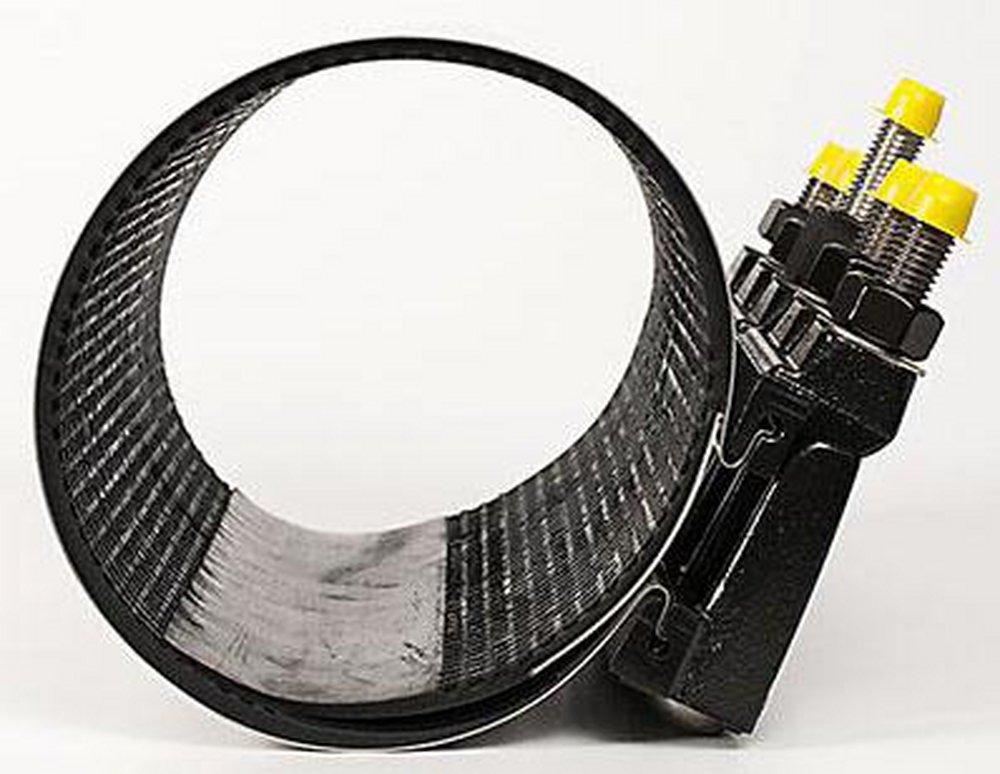

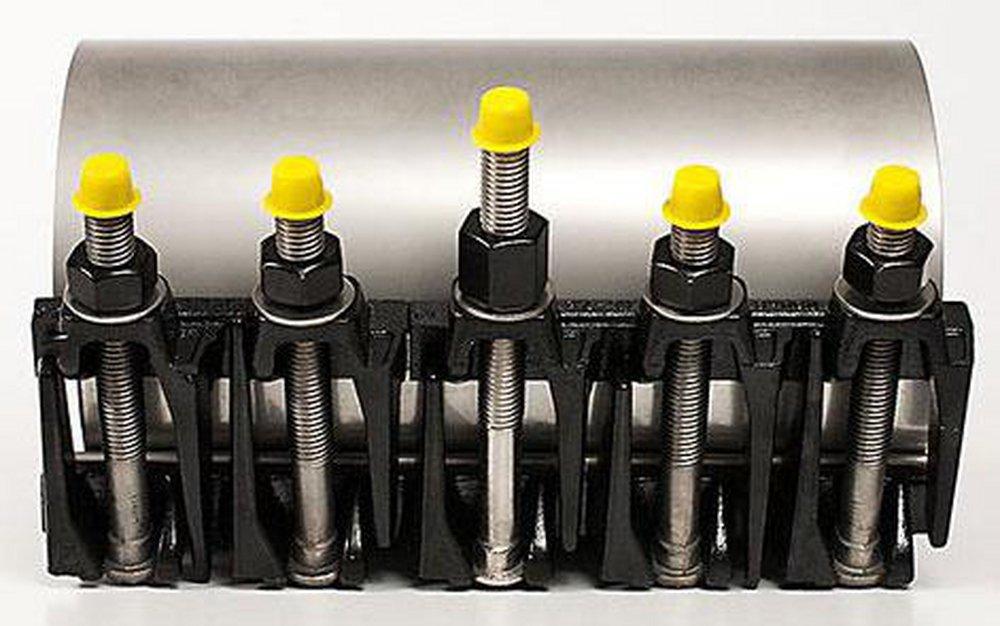

Romac 171-090012000 cl1-9.00x12 full circle repair clamp 8in (8.60-9.00)

Product Description

The ROMAC 171-090012000 CL1-9.00x12 is a full circle repair clamp. It is compatible with steel, cast iron, asbestos cement, and plastic pipes. Features a stainless steel shell and ductile iron lugs. The clamp is designed for easy installation and improved corrosion resistance.

• Full Circle Repair Clamp
• Stainless Steel Shell
• Ductile Iron Lugs

Product Highlights

Full circle repair clamp with stainless steel shell and ductile iron lugs for versatile pipe repair.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 171-090012000
• Country of Origin: USA

Technical Specifications

• 1-SECTION TYPE: 1 SECTION
• E-COAT EPOXY (LUG) FINISH: E-COAT EPOXY (LUG)
• REMOVABLE LUG INCLUSIONS/FEATURES: REMOVABLE LUG
• ASTM A536 DUCTILE IRON BODY MATERIAL: ASTM A536 DUCTILE IRON
• Nominal Pipe Size: 8 INCH
• ASTM D2000 SBR GASKET MATERIAL: ASTM D2000 SBR
• BOLT(S): 5
• Clamp Range: 8.6 TO 9 INCH
• PROCESS: CAST
• MATERIAL: ASTM A240 304 STAINLESS STEEL (SHELL), ASTM A536 DUCTILE IRON (LUG), AWWA C111 STEEL ALLOY (BOLT AND NUT), ASTM A240 304 STAINLESS STEEL (ARMOR)
• APPLICABLE STANDARD: NSF 61, AWWA C230
• CL1 MODEL: CL1
• Length: 12
• Brand: Romac Industries
• Category: Water
• ASTM: ASTM A-240, ASTM A-536 Grade 65-45-12, ASTM D-2000 MAA 610
• AWWA: AWWA C-111, AWWA C-230
• Application: Steel Pipe, Cast Iron Pipe, Asbestos Cement Pipe, Plastic Pipe
• Coating: E-Coat Epoxy
• Collection: Style CL1
• Fits Pipe Size: 8 in
• Material Type: 304, SBR
• NSF Certified: Yes
• Product Type: Repair Clamp
• Range (in): 8.60 in - 9.00 in
• UL Listed: No
• Weight: 22
