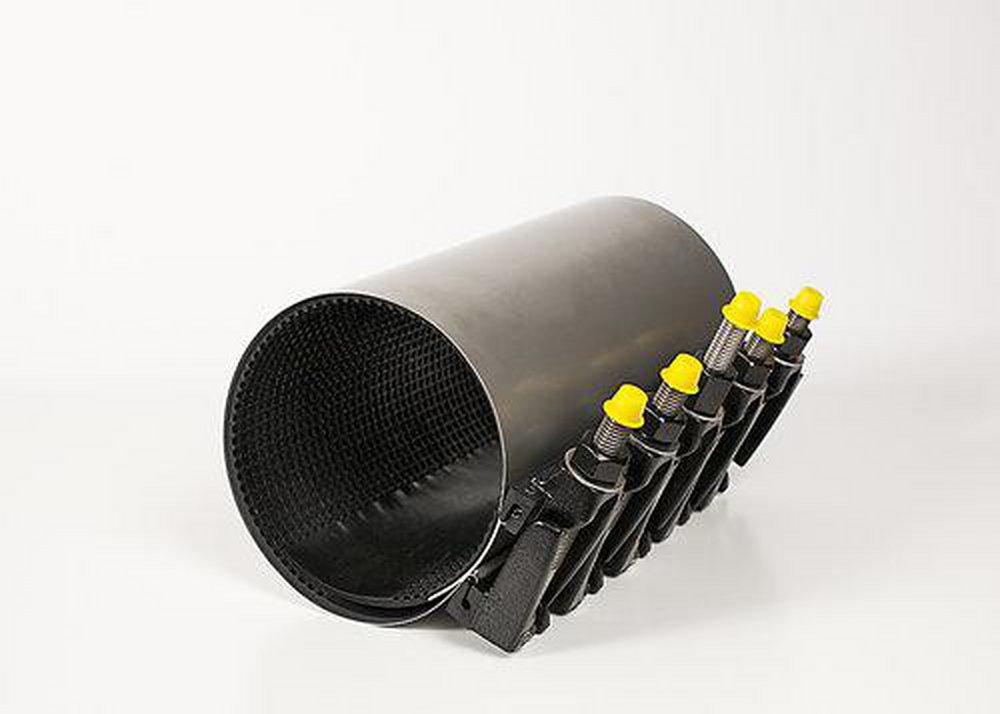

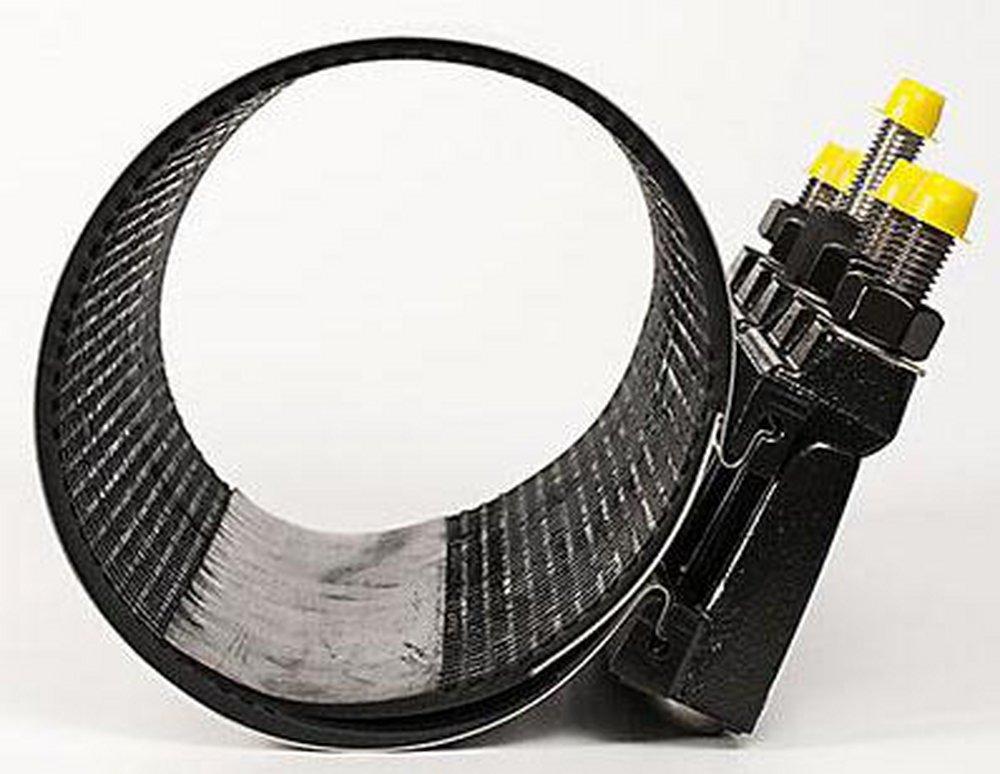

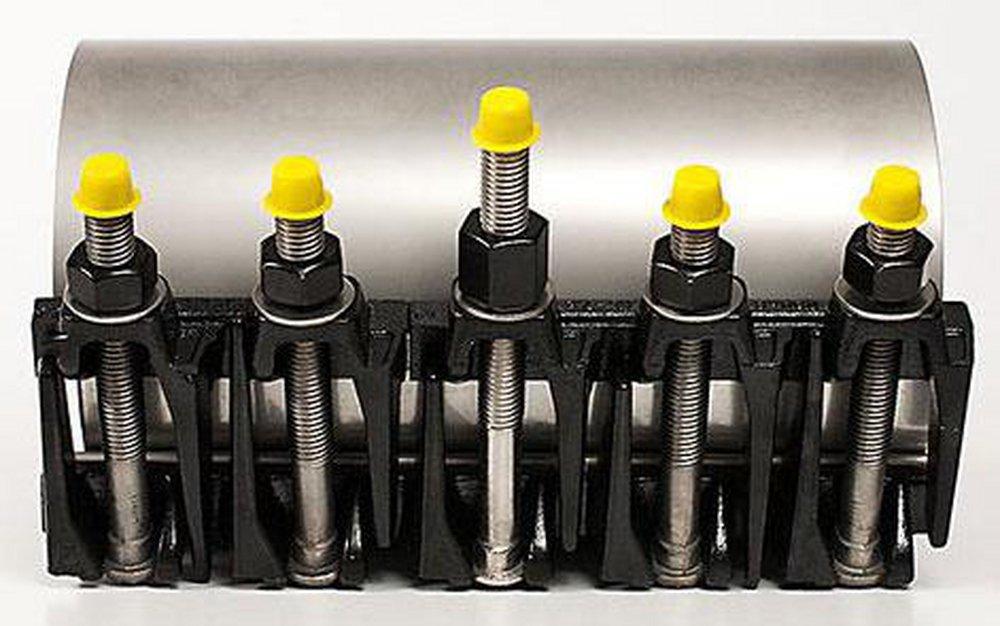

Romac 171-070012000 Style CL1 Repair Clamp 6 x 12 in.

Product Description

The ROMAC 171-070012000 Style CL1 repair clamp is compatible with steel, cast iron, asbestos cement, and plastic pipes. Features high strength low alloy steel trackhead bolts and heavy gauge 304 stainless steel armor bonded to the gasket. E-coat provides improved corrosion resistance. Made in USA.

• Compatible with steel, cast iron, asbestos cement, plastic, other types of pipe
• High strength low alloy steel trackhead bolts
• Heavy gauge 304 stainless steel armor bonded to gasket to bridge gap at lug area

Product Highlights

The repair clamp features a shell hemmed to strengthen engagement with lugs and a boat nose design of lugs to ease installation.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 171-070012000
• Country of Origin: USA

Technical Specifications

• ASTM: ASTM A-240, ASTM A-536 Grade 65-45-12, ASTM D-2000 MAA 610
• AWWA: AWWA C-111, AWWA C-230
• Application: Steel Pipe, Cast Iron Pipe, Asbestos Cement Pipe, Plastic Pipe
• Coating: E-Coat Epoxy
• Collection: Style CL1
• Fits Pipe Size: 6 in
• Length: 12
• Material: Stainless Steel, Ductile Iron, Low Alloy Steel, Rubber
• Material Type: 304, SBR
• NSF Certified: Yes
• Product Type: Repair Clamp
• UL Listed: No
• 1-SECTION TYPE: 1 SECTION
• E-COAT EPOXY (LUG) FINISH: E-COAT EPOXY (LUG)
• CLAMP LENGTH: 12 INCH
• REMOVABLE LUG INCLUSIONS/FEATURES: REMOVABLE LUG
• BODY MATERIAL: ASTM A536 DUCTILE IRON
• NOMINAL PIPE SIZE: 6 INCH
• GASKET MATERIAL: ASTM D2000 SBR
• NUMBER OF BOLTS: 5 BOLT(S)
• CLAMP RANGE: 6.6 TO 7 INCH
• PROCESS: CAST
• APPLICABLE STANDARD: NSF 61, AWWA C230
• MODEL: CL1
