Romac 171-026312000 CL1-2.63x12 SS F/C Repair Clamp SBR (2.35-2.63)

Product Description

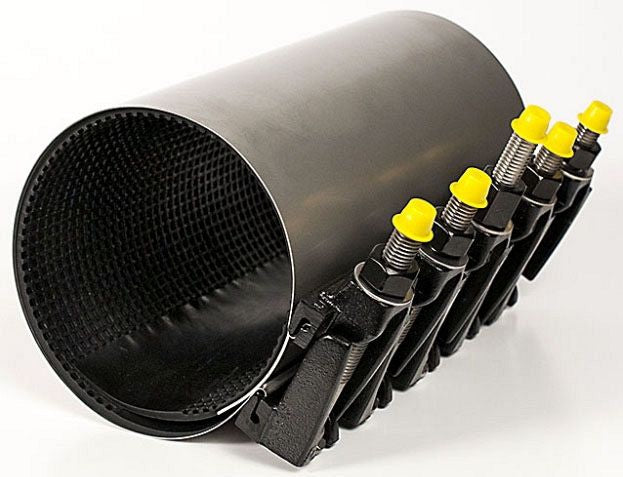

The ROMAC 171-026312000 is a CL1-2.63x12 SS F/C repair clamp with SBR, designed for pipe repair. It is made with ASTM A240 304 stainless steel shell, ASTM A536 ductile iron lug, and AWWA C111 steel alloy bolts and nuts. It conforms to NSF 61 and AWWA C230 standards.

• Features removable lug
• Made with ASTM A536 ductile iron body material
• Uses ASTM D2000 SBR gasket material

Product Highlights

This repair clamp is ideal for repairing pipes with a nominal size of 2 inches and a clamp range of 2.35 to 2.63 inches.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 171-026312000

Technical Specifications

• 1-SECTION TYPE: 1 SECTION
• E-COAT EPOXY (LUG) FINISH: E-COAT EPOXY (LUG)
• 12 INCH: 12 INCH
• REMOVABLE LUG INCLUSIONS/FEATURES: REMOVABLE LUG
• ASTM A536 DUCTILE IRON BODY MATERIAL: ASTM A536 DUCTILE IRON
• 2 INCH NOMINAL PIPE SIZE: 2 INCH
• ASTM D2000 SBR GASKET MATERIAL: ASTM D2000 SBR
• 5 BOLT(S): 5
• 2.35 TO 2.63 INCH CLAMP RANGE: 2.35 TO 2.63 INCH
• MATERIAL: ASTM A240 304 STAINLESS STEEL (SHELL), ASTM A536 DUCTILE IRON (LUG), AWWA C111 STEEL ALLOY (BOLT AND NUT), ASTM A240 304 STAINLESS STEEL (ARMOR)
• APPLICABLE STANDARD: NSF 61, AWWA C230
• CL1 MODEL: CL1
