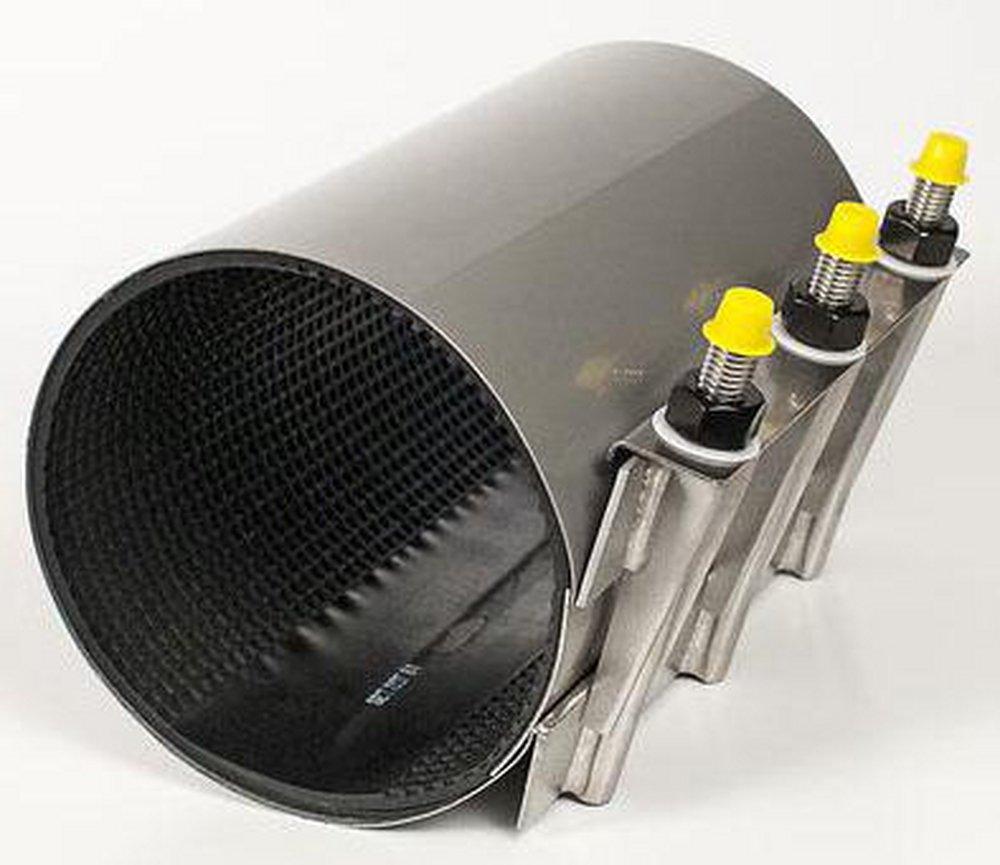

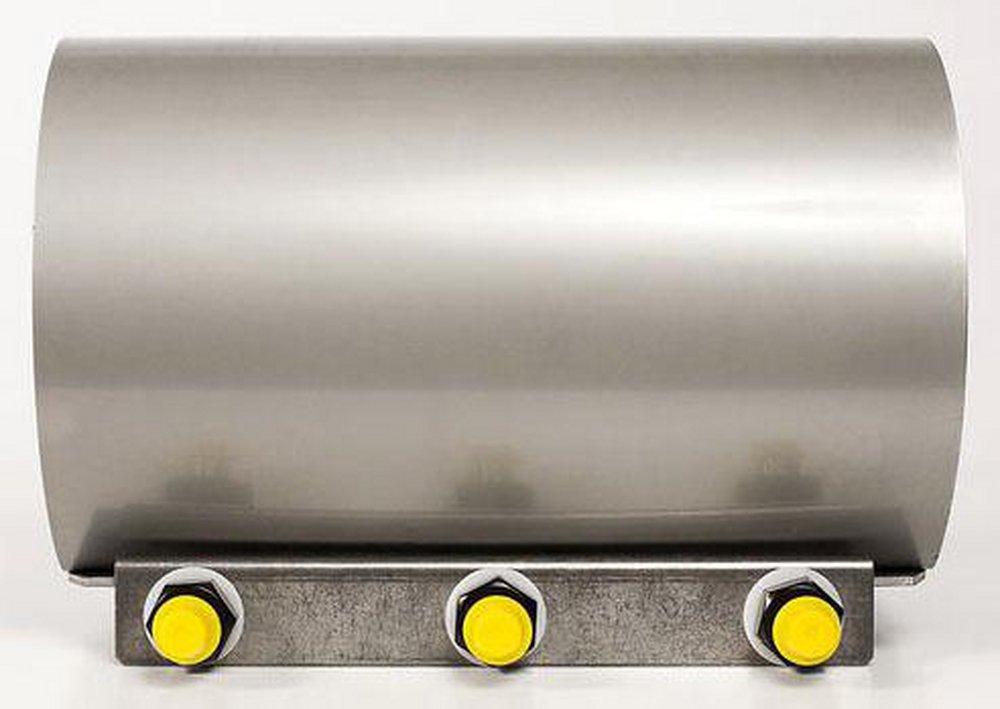

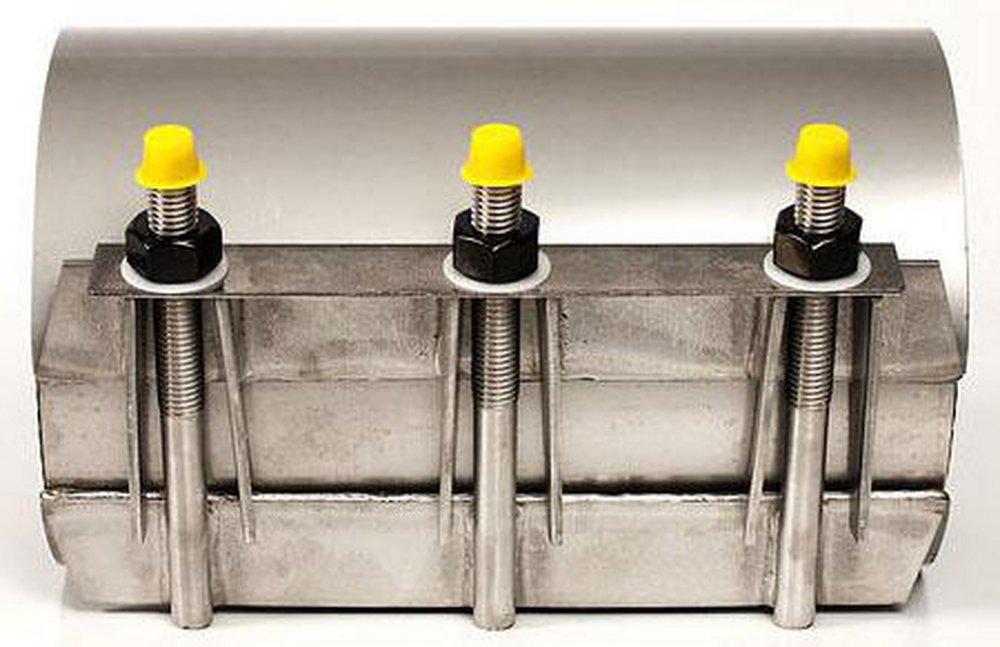

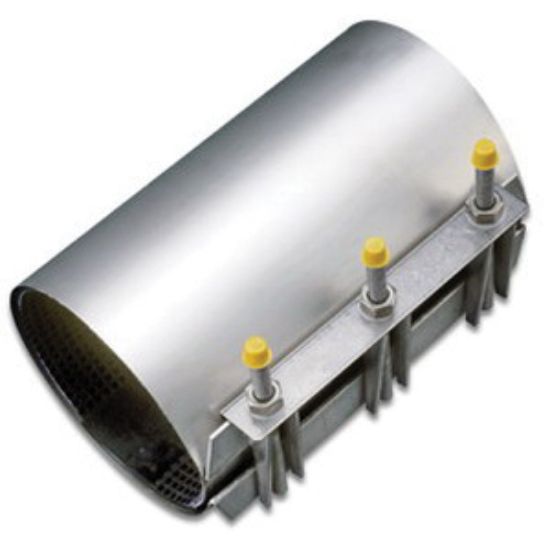

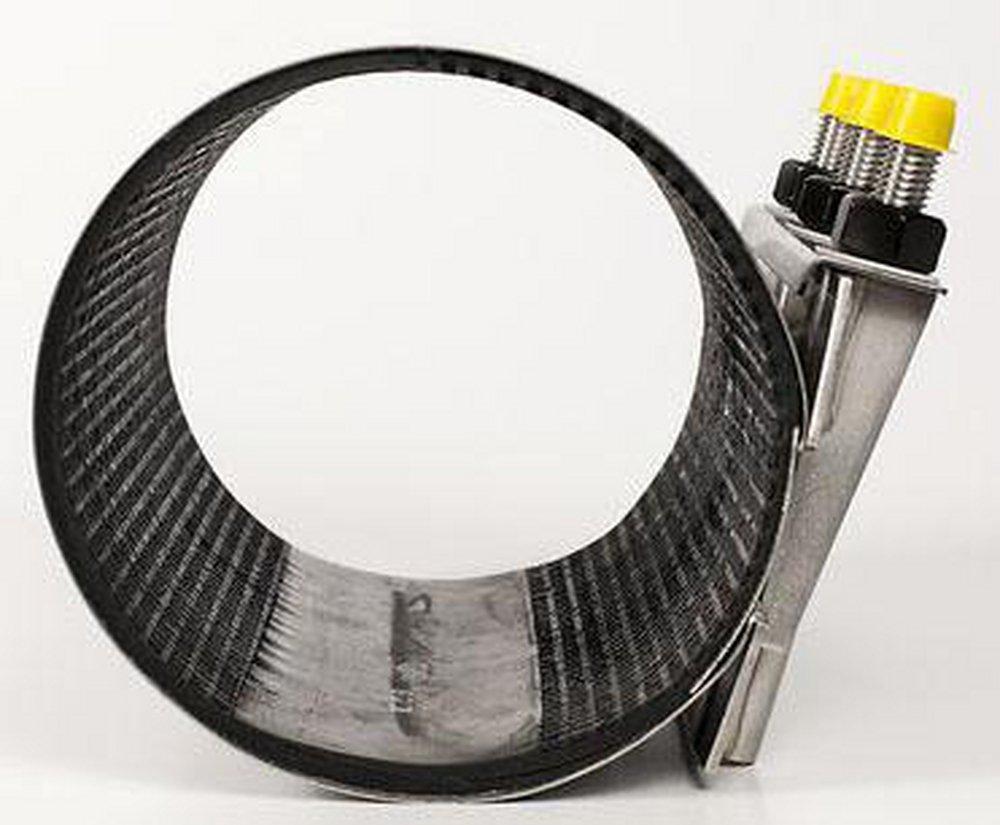

Romac 111-09401200 ss1 Repair Clamp 9.40 x 12

Product Description

The ROMAC 111-09401200 SS1 repair clamp provides a full circumferential repair of splits and holes. It is compatible with steel, cast iron, asbestos cement, plastic, and other types of pipe. Features heavy gauge 304 stainless steel sidebars, GTAW welded to form a permanent fusion with the shell.

• Full circumferential, 1-section stainless steel repair clamp
• Fits Pipe Size: 8 in
• Clamping Range: 9 to 9.4 in

Product Highlights

This repair clamp is made in the USA and features welds fully passivated for enhanced corrosion resistance.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 111-09401200
• Country of Origin: USA

Technical Specifications

• Additional Information: 304 Stainless Steel Material Construction
• Body Material: Stainless Steel
• Bolt Size: 5/8 in
• Clamping Range: 9 to 9.4 in
• Fits Pipe Size: 8 in
• Gasket Material: SBR
• Material Standard: ASTM D2000 MAA 610
• Number of Bolts: 3
• Pressure Rating: 150 psi
• Application: Steel Pipe, Cast Iron Pipe, Asbestos Cement Pipe, Plastic Pipe
• Collection: Style SS1
• Length: 12 in
• Material: Stainless Steel, Rubber
• Material Type: 304, SBR
• NSF Certified: Yes
• Product Type: Repair Clamp
• Range (in): 9.00 in - 9.40 in
• Pressure - Maximum: 150 psi
• Type: Band
• Pipe Size: 8 in
• Series: 111
• Domestic/Import: Domestic
• Outside Diameter: 9 to 9.4 in
• UNSPSC: 40173804
• Alternate Part Number 1: SS1-9.40 X 12
• Manufacturer: Romac Industries
• Manufacturer Part Number: 111-09401200
