Romac 111-07001600 Clamp Ring 6 Inch Pipe 150 Psi

Product Description

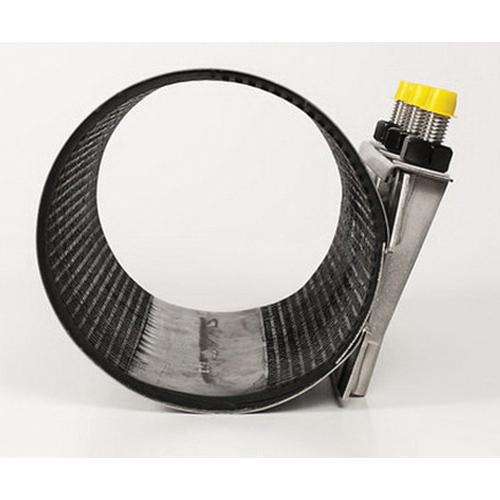

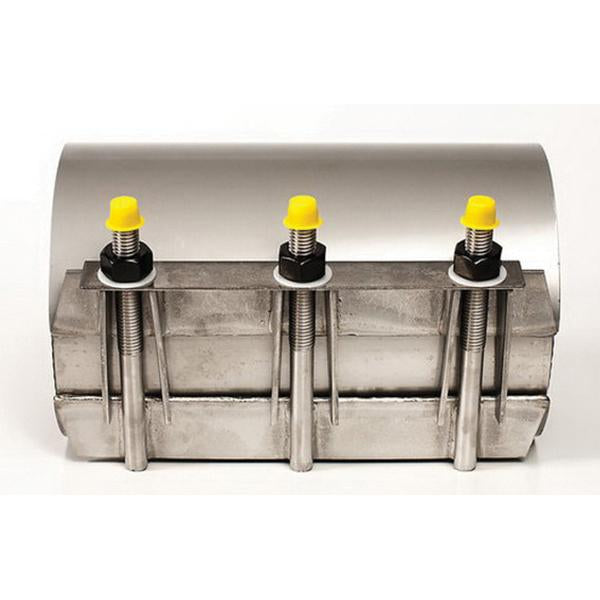

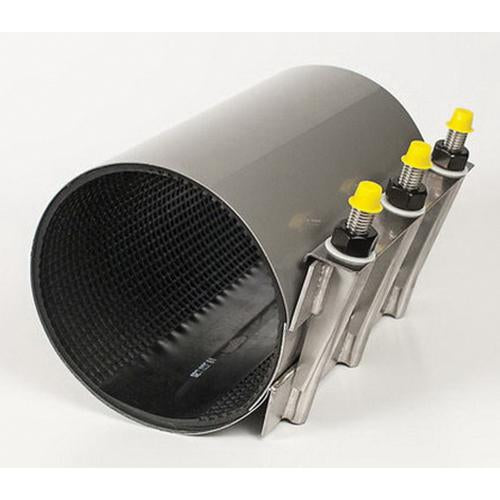

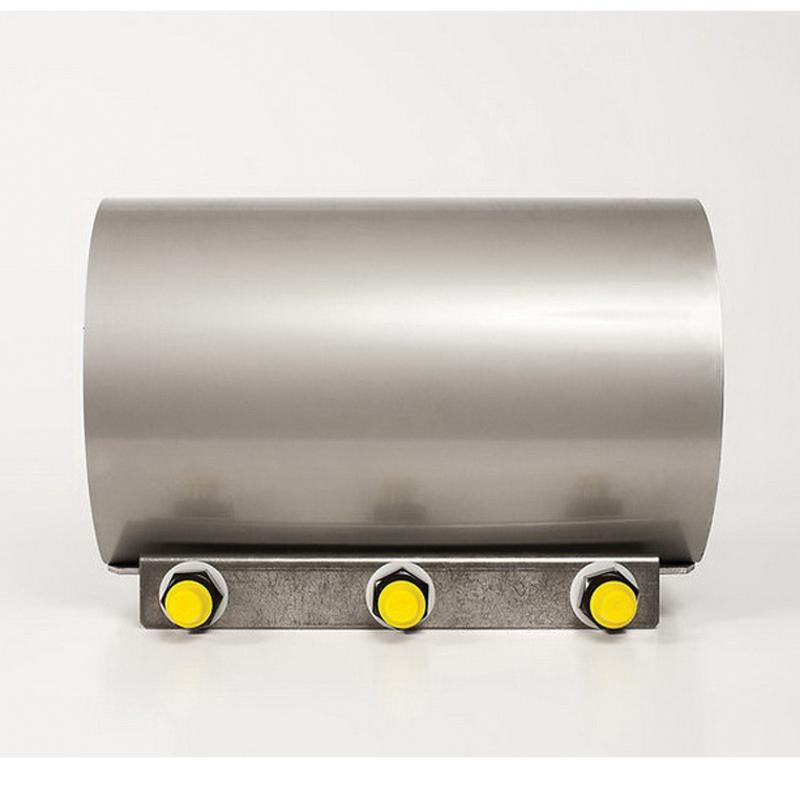

The ROMAC 111-07001600 is a stainless steel clamp ring designed for use on 6-inch pipe in pressurized water and wastewater piping systems. It provides a leak-resistant mechanical connection using four 5/8-inch bolts and an SBR gasket to seal the joint. The body is constructed from 304 stainless steel, meeting ASTM D2000 MAA 610 material standards. The clamping range spans 6.84 to 7 inches in outside diameter, and the assembly is pressure-rated to 150 psi. This type of clamp ring is typically installed by licensed plumbers or waterworks technicians performing pipe repair, joining, or transition work on municipal or industrial piping systems.

This clamp ring is suited for above-ground and buried 6-inch pipe installations where corrosion resistance and reliable sealing are required. Common applications include water distribution mains, wastewater force mains, and industrial process piping. The SBR gasket material is compatible with potable water and general-purpose liquid service. The four-bolt design distributes clamping force evenly around the pipe circumference, which is important for maintaining a consistent seal across the full clamping range.

Key Features

• 304 stainless steel body construction meets ASTM D2000 MAA 610 material standard
• Fits 6-inch nominal pipe with a clamping range of 6.84 to 7 inches outside diameter
• Pressure-rated to 150 psi for use in standard-pressure water and wastewater service
• SBR gasket provides flexible sealing compatible with potable water and general liquid applications
• Four-bolt configuration with 5/8-inch bolts for even, controlled clamping force

Compatibility

Designed as an OEM-style mechanical clamp ring for 6-inch nominal pipe with an outside diameter between 6.84 and 7 inches, consistent with standard ductile iron, PVC, and steel pipe in that size class.

Installation Notes

Installation should be performed by a licensed plumber or waterworks technician. Shut off and depressurize the line before fitting the clamp ring, and verify the pipe outside diameter falls within the stated clamping range of 6.84 to 7 inches before tightening. Bolt torque should be applied evenly in a cross pattern per the manufacturer's installation sheet. Follow applicable local plumbing codes and AWWA standards for buried or pressurized pipe repair and joining.

Technical Specifications

• Fits Pipe Size: 6 inches
• Clamping Range: 6.84 to 7 inches
• Pressure Rating: 150 psi
• Number of Bolts: 4
• Bolt Size: 5/8 inches
• Body Material: 304 Stainless Steel
• Gasket Material: SBR
• Material Standard: ASTM D2000 MAA 610

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 111-07001600
