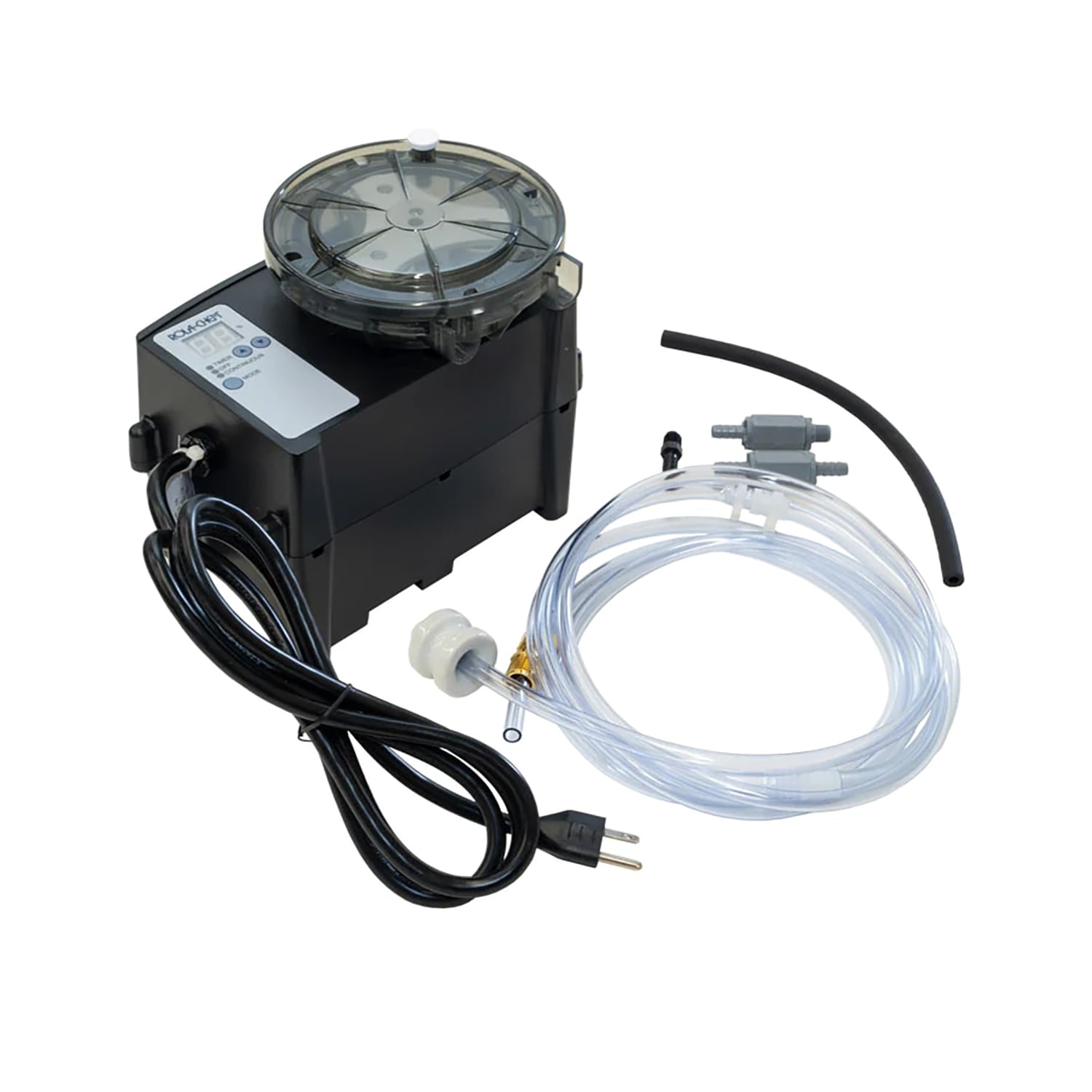

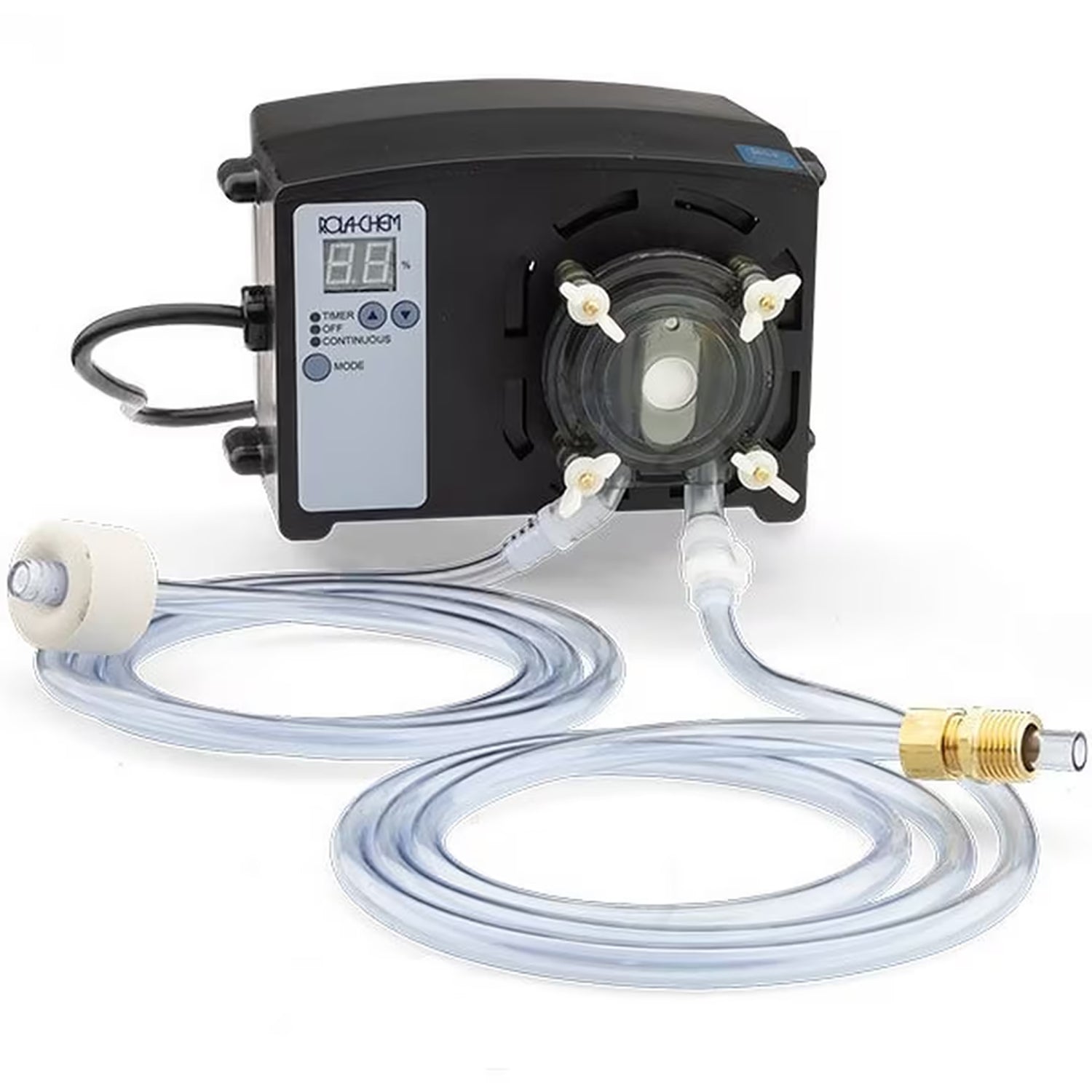

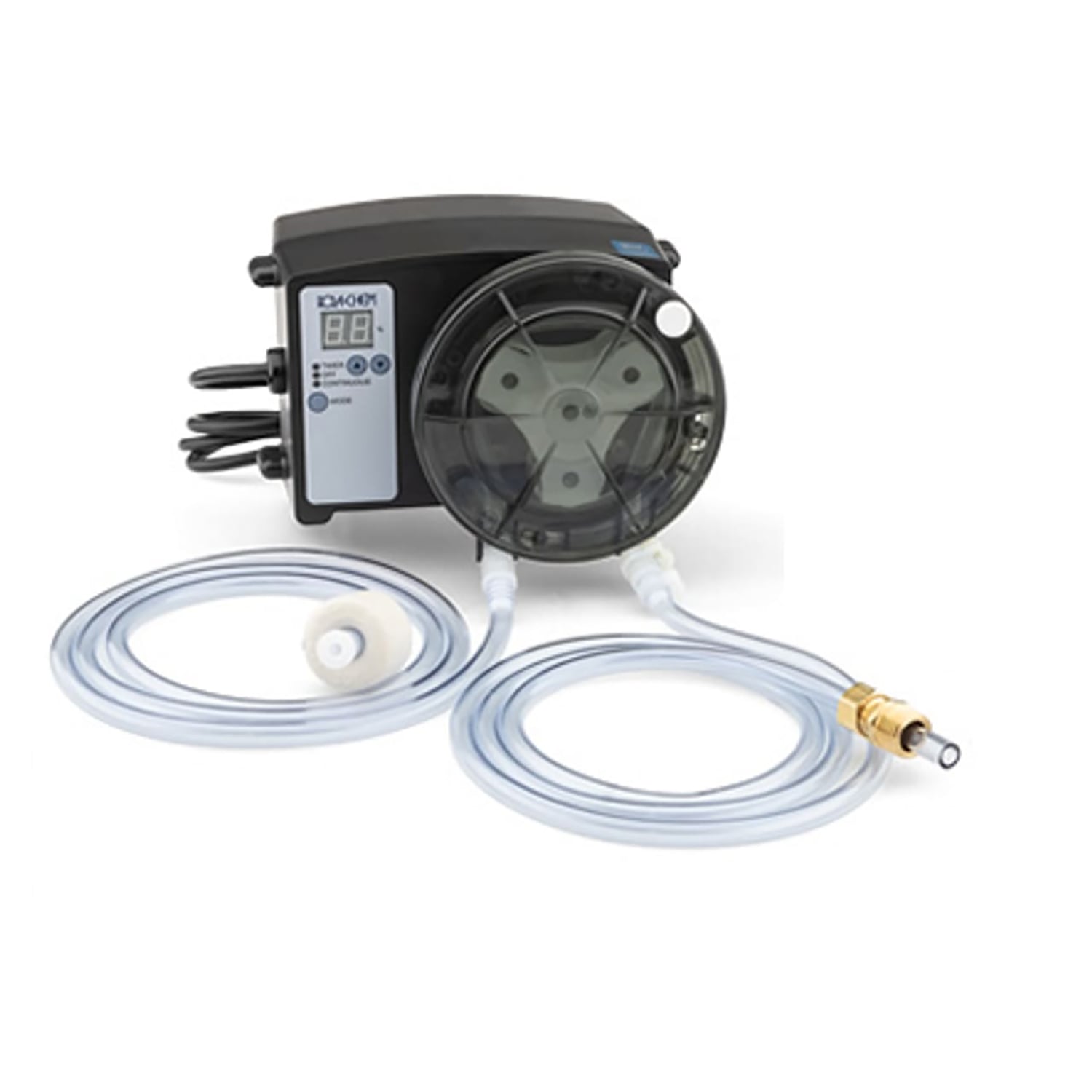

Rola-chem 543814 Chemical Feed Pump 12 Gpd 240V

Product Description

The ROLA-CHEM 543814 is a Pro Series 300 chemical feed pump designed for automated chemical dosing in pool, spa, and hot tub systems. Operating at 240 volts with a maximum output of 12 gallons per day (GPD), this pump delivers consistent, measured chemical feed to maintain water balance and sanitation. The self-priming design reduces setup time during initial installation or after tubing replacement. A fully digital timer provides precise dosing schedules, and a three-way switch gives the technician direct control for priming, shock feed, or shutoff without navigating menus. Construction uses chemical-resistant plastic rated for continuous exposure to harsh treatment chemicals. Installs easily into new builds or retrofit applications.

The 543814 is suited for residential pools, spas, and hot tubs as well as light commercial aquatic facilities requiring reliable automated chemical delivery. Its versatile mounting configuration accommodates a range of equipment room layouts. The pump is compatible with standard chemical feed tubing and integrates into existing automated water-treatment systems where a 240-volt metering pump is required. Pool service professionals and facility maintenance technicians are the primary installers for this unit. The digital timer and manual override switch reduce the number of service calls required to adjust dosing schedules on-site.

Key Features

• 12 GPD maximum chemical output at 240 volts for precise dosing control
• Fully digital timer allows programmable dosing schedules
• Self-priming pump simplifies startup and tubing service
• Three-way switch supports priming, shock feed, and stop functions
• Chemical-resistant plastic construction rated for pool and spa chemical exposure
• Versatile mounting options accommodate new installations and system upgrades

Compatibility

Designed as an OEM-style replacement or direct upgrade for residential and light commercial pool and spa chemical feed pump applications requiring a 240-volt metering pump. Compatible model reference: RC303MC.

Installation Notes

Installation should be performed by a licensed pool and spa service technician or qualified mechanical contractor familiar with chemical feed systems. Shut off all system power and isolate the chemical supply lines before servicing or replacing the pump. Ensure the feed tubing and injection fittings are rated for the specific chemicals being dosed. Follow all applicable local codes and chemical handling safety requirements when working with pool sanitizers and treatment chemicals.

Technical Specifications

• Voltage: 240 volts
• Maximum Feed Rate: 12 GPD
• Timer Type: Fully digital
• Priming: Self-priming
• Construction: Chemical-resistant plastic
• Control Switch: Three-way (prime, shock feed, stop)

Standard Information

• Brand: ROLA-CHEM
• Manufacturer Part Number: 543814
