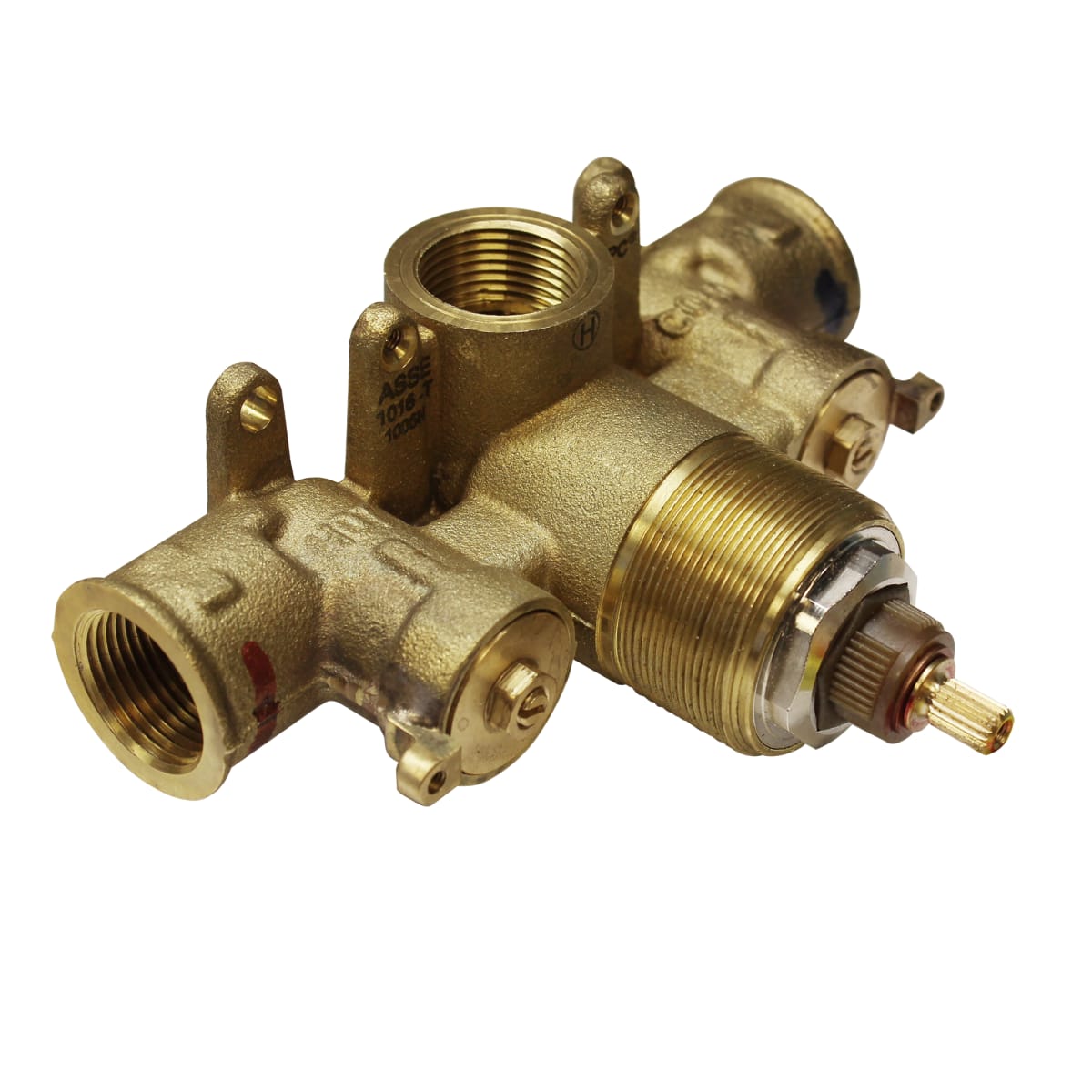

Rohl 1005N 3/4 in. NPT Thermostatic Valve

Product Description

Rohl 1005N is a thermostatic valve designed for use in plumbing systems. This valve features a three-quarter inch female NPT inlet. It allows for precise temperature control in bathtub and shower applications. The flow rate is twelve gallons per minute at sixty PSI, which supports efficient water flow for various plumbing needs. To complete the installation, a trim must be ordered separately.

• Temperature control only
• Must order trim to complete
• Compatible with PEX for optimal flow capacity

Product Highlights

This valve is essential for effective temperature regulation and provides reliable performance in residential and commercial plumbing systems.

Product Information

Standard Information

• Brand: Rohl
• MPN: 1005N

Technical Specifications

• Inlet Size: 3/4 inches female NPT
• Flow Rate: 12 GPM at 60 PSI
• Installation Depth: Minimum 3 11/16 inches, Maximum 5 inches from back of valve to finished wall
• Outlets: 2 x 3/4 inches NPT
• Requires: Separate volume control valve for full functionality
