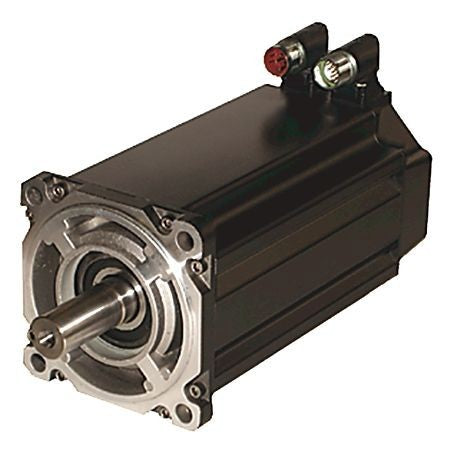

Rockwell Automation MPL-B310P-MJ72AA - Low-Inertia Brushless Servo Motor - 460 V - Frame Size 3 - Stack Length 10

Product Description

The Rockwell Automation MPL-B310P-MJ72AA is a low-inertia brushless servo motor designed for high-speed applications. This motor operates at 460 volts and features a compact frame size of one hundred millimeters. It includes a stack length of twenty-five point four millimeters. With a maximum speed of five thousand RPM, this servo motor ensures precise control. It comes equipped with a multi-turn high-resolution encoder that provides absolute feedback.

• Rated voltage: 460 V
• Compact design: Frame size three at 100 mm
• Speed of five thousand RPM for dynamic performance

Product Highlights

The MPL-B310P-MJ72AA servo motor is suitable for various motion control applications. It offers a keyed shaft extension and SpeedTEC DIN connector for easy installation. Its right angle design can rotate one hundred and eighty degrees, making it flexible for different setups.

Product Information

Standard Information

• Brand: Rockwell Automation
• MPN: MPL-B310P-MJ72AA

Technical Specifications

• Voltage: 460 V
• Frame Size: 100 mm
• Stack Length: 25.4 mm
• Max RPM: 5000
• Encoder Type: Multi-turn high-resolution
• Rear Shaft Extension: Keyed
• Connector: SpeedTEC DIN
• Rotation: 180°
