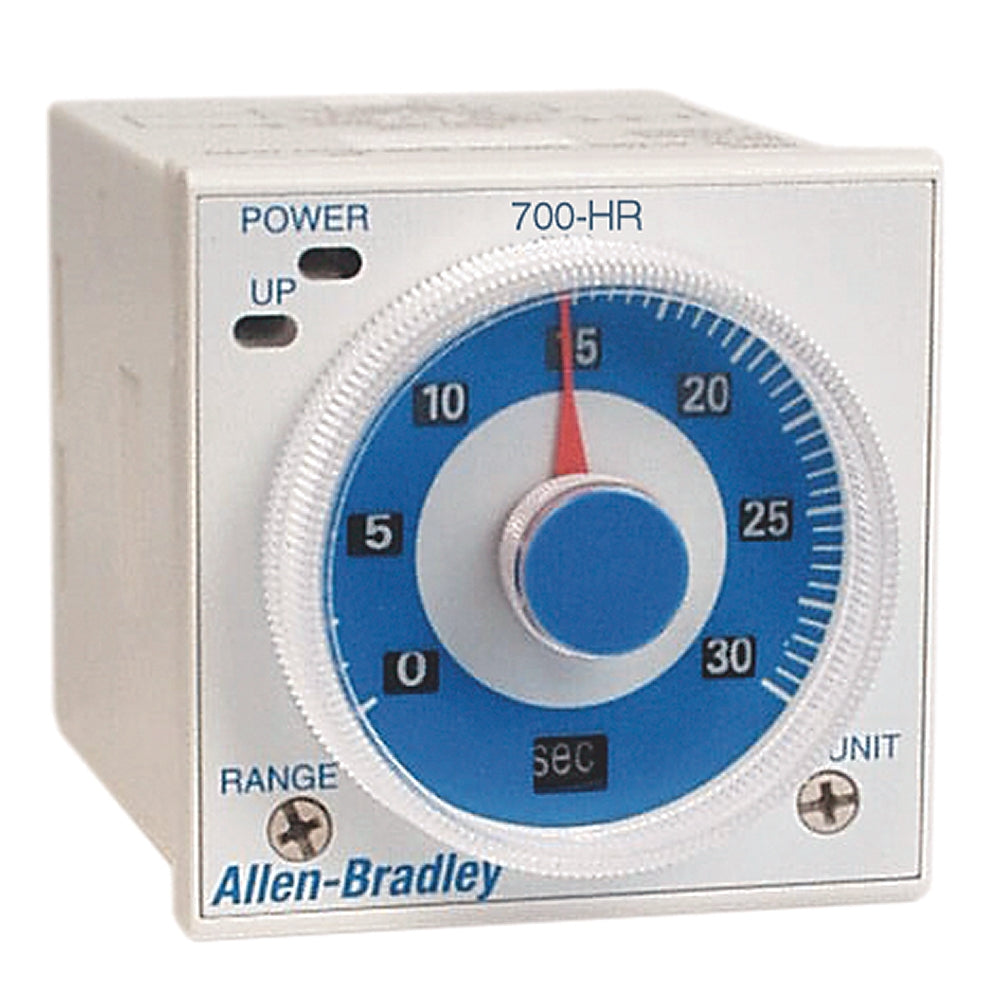

Rockwell Automation 700-HR52TA17 700-HR General Purpose Dial Timing Relay Multi-Function 700-HR52TA17

Product Description

The Rockwell Automation 700-HR52TA17 is a multi-function timing relay designed for general-purpose applications. This timing relay provides 2 timed contacts with no voltage inputs and offers six operating modes. The timing range can be set from 0.05 seconds to 300 hours, making it suitable for diverse operational needs.

• Multi-function timer with options for various applications.
• Compatible with inputs of 100 to 240 volts AC or 100 to 125 volts DC.
• Durable design for reliable performance in different environments.

Product Highlights

This timing relay is ideal for applications requiring precise timing control. It features dual-pole, double-throw (DPDT) timed contacts for enhanced functionality.

Product Information

Standard Information

• Manufacturer: Rockwell Automation
• Part Number: 700HR52TA17 AB

Technical Specifications

• Input Voltage: 100 to 240V AC, 50/60Hz
• Input Voltage DC: 100 to 125V DC
• Timing Range: 0.05 seconds to 300 hours
• Contacts: 2 Timed Contacts, DPDT
• Function Modes: 6
• UPC: 662073641070
• Availability: In Stock
