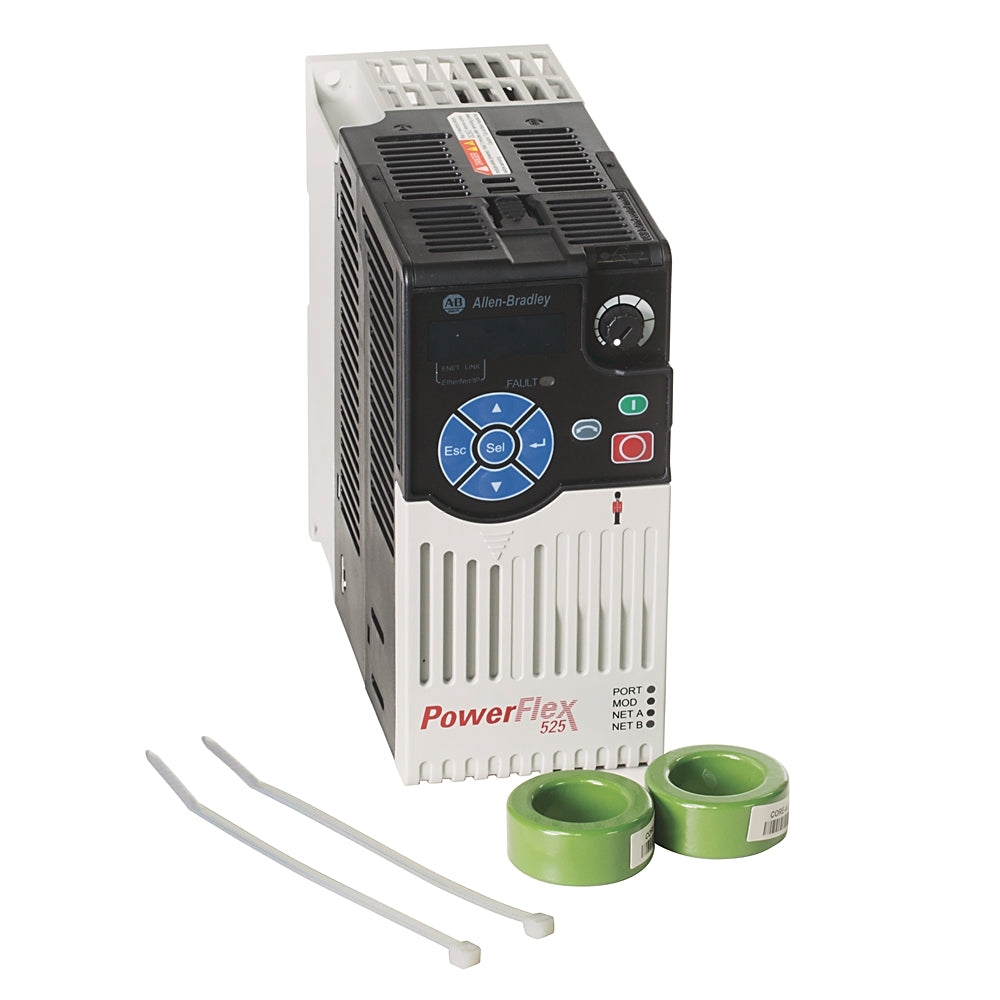

Rockwell Automation 25B-D1P4N114 PowerFlex 525 AC Drive 480 VAC 3 Phase Replacement MPN

Product Description

The Rockwell Automation 25B-D1P4N114 is a PowerFlex 525 AC Drive. It operates at 480 VAC with a three-phase system. This drive has a current rating of 1.4 Amps and is designed for both normal and heavy-duty applications at a power output of 0.5 HP or 0.4 kW. The drive is compatible with Embedded EtherNet/IP and is designed for Frame A IP20 NEMA or open type installations.

• Three-phase operation with Embedded EtherNet/IP
• Suitable for both normal and heavy-duty applications
• IP20 NEMA rating for safe indoor operation

Product Highlights

This AC drive provides a reliable solution for controlling motor speed and torque in various industrial applications. Its features enhance energy efficiency and operational safety.

Product Information

Standard Information

• Brand: Rockwell Automation
• Part Number: 25B-D1P4N114 AB
• UPC: 884951885998

Technical Specifications

• Voltage: 480 VAC
• Phase: 3 Phase
• Current Rating: 1.4 Amps
• Normal Duty Power: 0.5 HP, 0.4 kW
• Heavy Duty Power: 0.5 HP, 0.4 kW
• Frame Size: A
• Protection Type: IP20 NEMA / Open Type
• Min Order Quantity: 1
