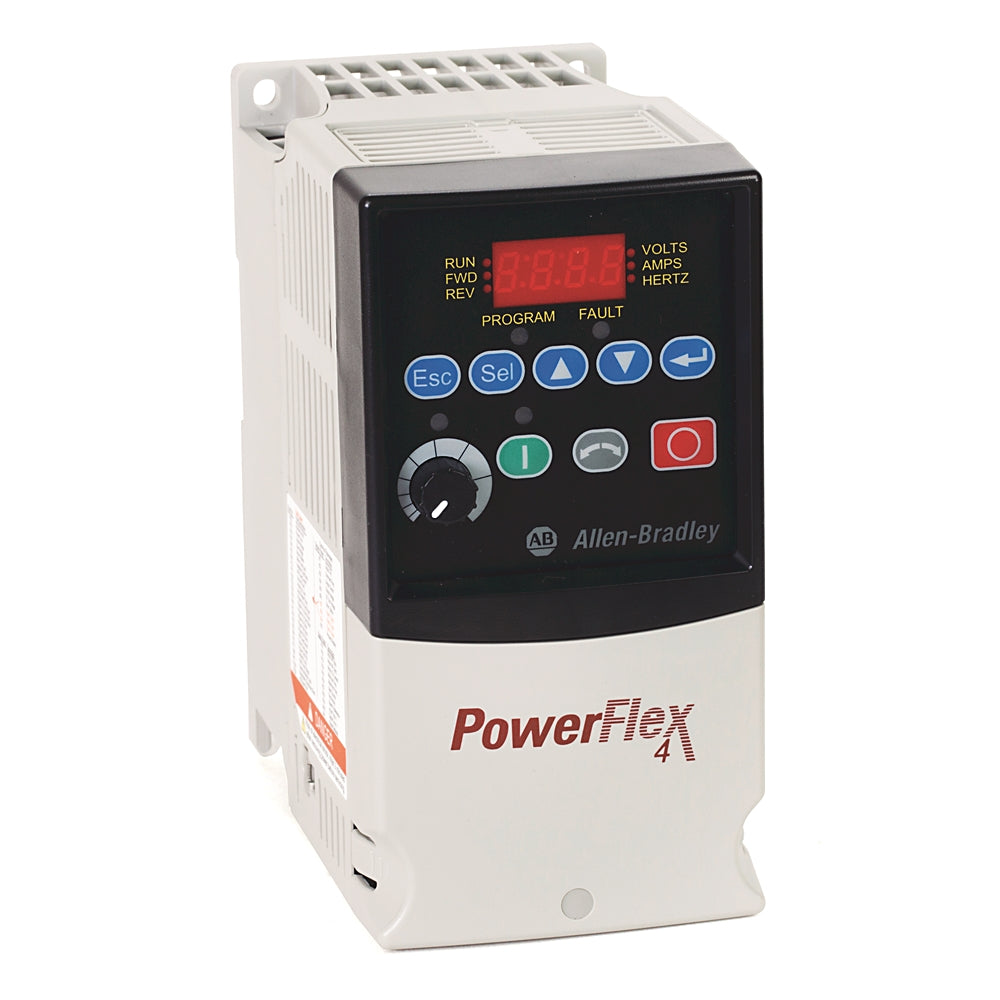

Rockwell Automation 22A-A2P3N104 PowerFlex4 AC Drive 240VAC 1PH 0.5 HP

Product Description

The Rockwell Automation 22A-A2P3N104 is a PowerFlex4 AC drive designed to control motors. This unit operates on a voltage of 240VAC with a single phase and provides a current of 2.3 Amps. It delivers a power output of 0.37 kW, which is approximately 0.5 horsepower. The drive comes with a frame size classified as A and is rated IP20, indicating it is suitable for open environments. It is equipped with an LED display and a fixed digital keypad for user-friendly operation.

• Single-phase operation with 240VAC
• 2.3 Amps current capacity
• Includes LED display and fixed digital keypad

Product Highlights

This drive is built for reliability and performance in various applications. It is suitable for HVAC systems, conveyors, and other equipment requiring efficient motor control.

Product Information

Standard Information

• Brand: Rockwell Automation
• Manufacturer: Rockwell Automation
• Part Number: 22AA2P3N104 AB
• UPC: 662453979540

Technical Specifications

• Voltage: 240 VAC
• Phase: 1 PH
• Current: 2.3 Amps
• Power Output: 0.37 kW
• Horsepower: 0.5 HP
• Frame Size: A
• IP Rating: IP20
