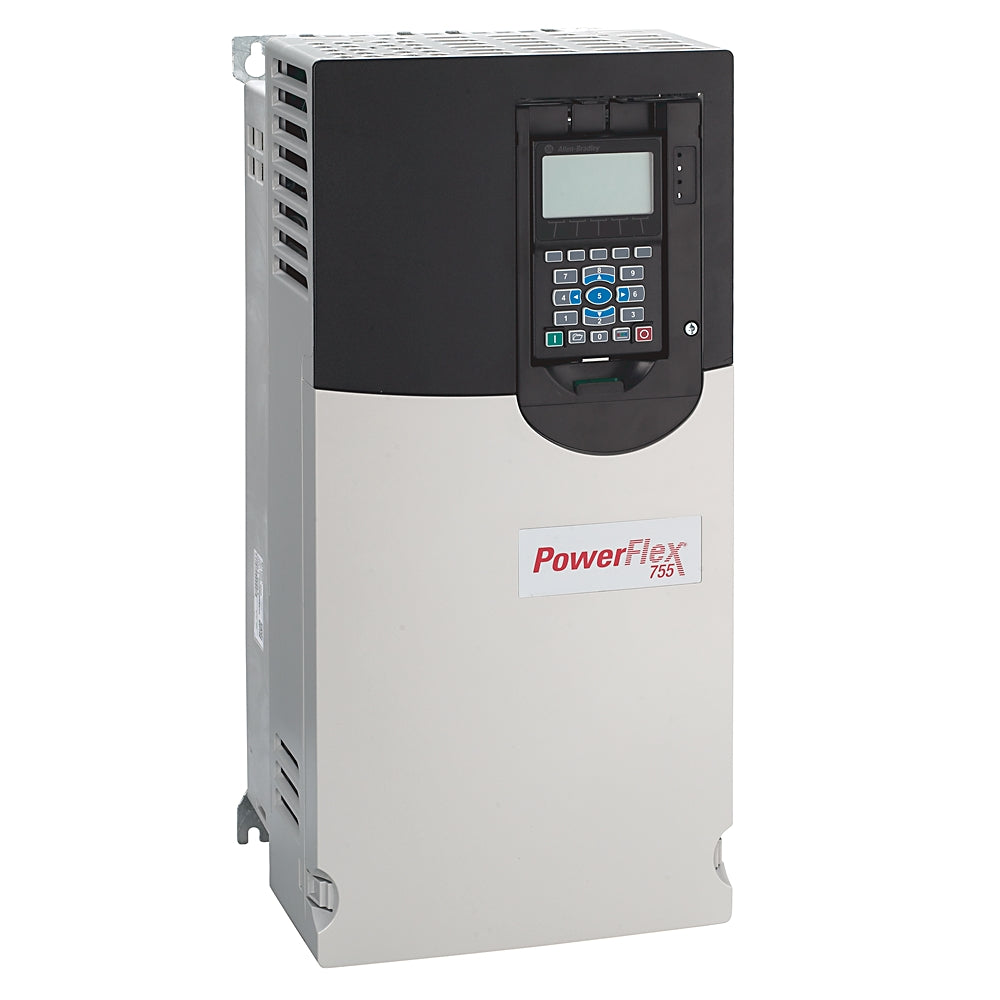

Rockwell Automation 20G11ND096JA0NNNNN PowerFlex 755 AC Drive

Product Description

The Rockwell Automation 20G11ND096JA0NNNNN is a PowerFlex 755 AC drive suitable for various industrial applications. It features embedded Ethernet/IP and is equipped with standard protection for reliable operation. This drive is rated for 96 amps and supports up to 75 horsepower in normal duty and 60 horsepower in heavy duty at 480 VAC, three-phase input. The forced air cooling system ensures efficient operation under load.

• Embedded Ethernet/IP for easy integration with network systems.
• Standard protection features for safe operation.
• AC input with DC terminals, compatible with multiple applications.

Product Highlights

This drive is ideal for controlling motors in various applications, including fans, pumps, and conveyors. With Frame 5 design, it offers easy installation and maintenance. The filtering system improves power quality, making it suitable for sensitive environments.

Product Information

Standard Information

• Manufacturer: Rockwell Automation
• Brand: Rockwell Automation

Technical Specifications

• MPN: 20G11ND096JA0NNNNN
• Power Rating: 75 HP (Normal Duty), 60 HP (Heavy Duty)
• Input Voltage: 480 VAC
• Current Rating: 96 Amps
• Cooling Type: Forced Air
• Frame Size: Frame 5
• Type: Open Type
• Features: Filtered, CM Jumper Installed, DB Transistor
