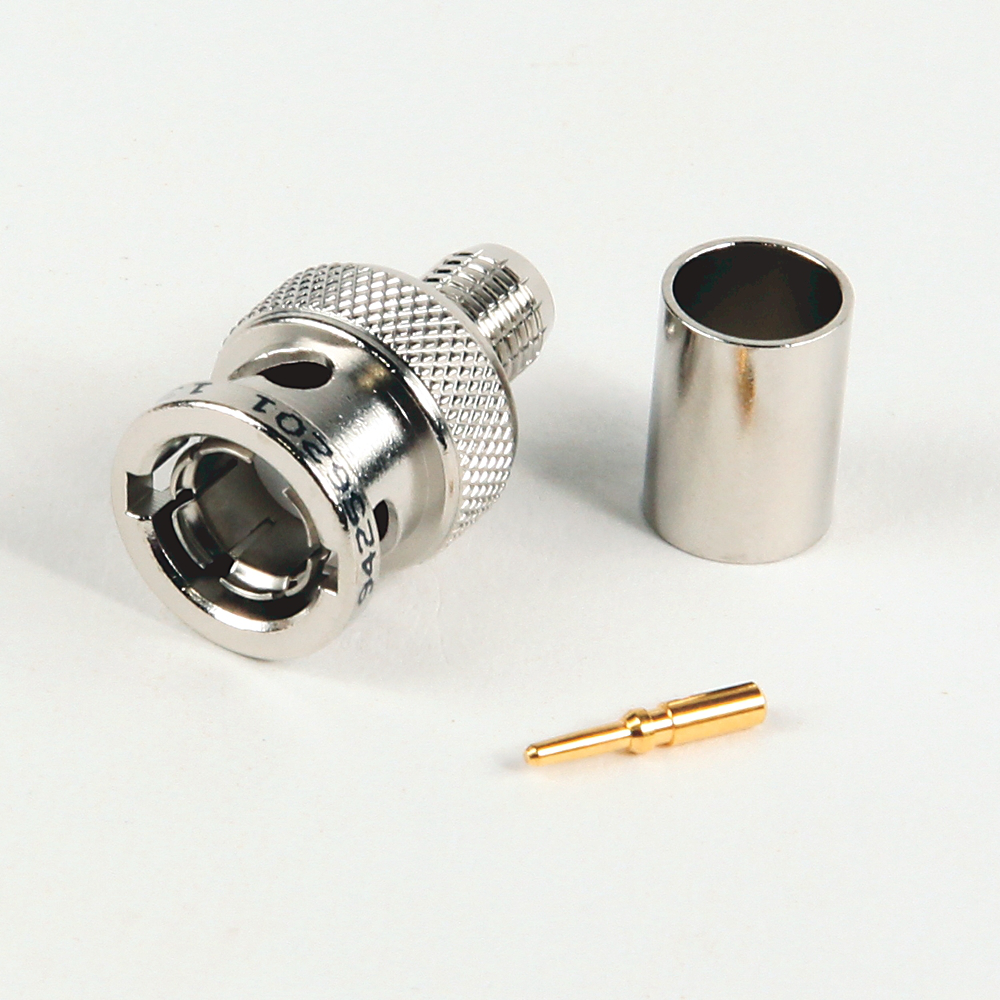

Rockwell Automation 1786-BNC Allen-Bradley ControlNet Media Connector

Product Description

The Rockwell Automation 1786-BNC is a ControlNet media coaxial BNC connector designed for stable network connections. This device links ControlNet networks efficiently and supports multiple device integrations. It simplifies commissioning through onboard advanced diagnostics including node-specific bus oscilloscope trace visibility within RSLogix5000.

• Simplifies commissioning with onboard diagnostics
• Supports multiple levels of device and media redundancy
• Connects and powers up to sixteen field devices

Product Highlights

The 1786-BNC connects various network segments while ensuring the integrity of connections. It operates as a true PA master without needing additional devices, making it ideal for large network setups.

Product Information

Standard Information

• Brand: Rockwell Automation
• Manufacturer: Allen-Bradley

Technical Specifications

• Type: Coaxial Media Connector
• Impedance: 75 Ohm
• Connection Type: BNC
• Temperature Rating: -20 to 80 degrees C
• Used With: ControlNet Media System
• Enclosure: IP20
• Standard: GOST, KC, MARINE
• GTiN: 00612598164912
