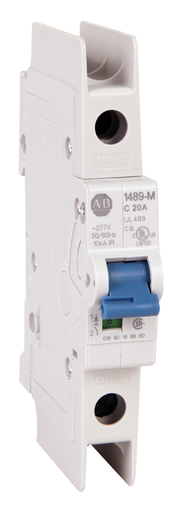

Rockwell Automation 1489-M1C200 Thermal-magnetic Circuit Breaker 1 Pole Configuration

Product Description

The Rockwell Automation 1489-M1C200 is a thermal-magnetic circuit breaker designed for AC systems. This product features a one pole configuration and is suited for various applications requiring reliable protection of control circuits. It meets the UL and CSA standards for maximum voltage ratings up to 277 volts AC and 48 volts DC. With a trip curve of C, it is suitable for typical load requirements in industrial control environments.

• 1 Pole Configuration for compact space solutions
• Rated for 20 Amps with thermal-magnetic action
• Meets IEC/EN maximum voltage of 230 volts AC

Product Highlights

This circuit breaker is ideal for protecting electrical circuits in commercial and industrial settings.

Product Information

Standard Information

• Brand: Rockwell Automation
• Part Number: 1489M1C200 AB

Technical Specifications

• Model: 1489-M1C200
• Voltage Rating: 277V AC, 48V DC
• Number of Poles: 1
• Trip Curve: C
• Compatibility: UL/CSA certified
• Minimum Order Quantity: 1
• Current Rating: 20 Amps
