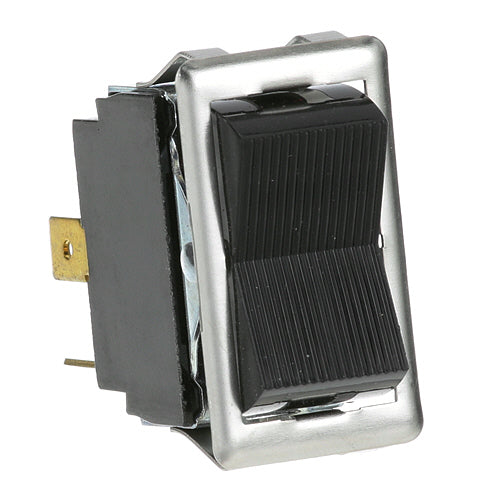

ROCKER SWITCH 7/8 X 1-1/2 DPDT CTR-OFF 343224-23 for Hobart 343224-23

Product Description

This item for Hobart 343224-23 is a rocker switch designed to fit a hole size of seven-eighths inches by one and a half inches. It features a double pole double throw (DPDT) configuration with a center-off position. This product is suitable for various Frymaster and Hobart fryer models.

• Fits hole size: seven-eighths inches by one and a half inches
• DPDT configuration with center-off
• Rated for fifteen amps at one hundred twenty-five volts and ten amps at two hundred fifty volts

Product Highlights

This rocker switch is used in commercial fryers. It allows for an easy on/off operation and is constructed with four terminals, accommodating quarter-inch tabs.

Product Information

Standard Information

• Dimensional Weight: 0.14
• Weight: 0.1

Technical Specifications

• Length: 1.5 inches
• Width: 0.7 inches
• Height: 1.7 inches
• AMP/Voltage Ratings: 15A/125V, 10A/250V
• Color: Black with metal bezel
• Compatible Models: Frymaster FMCFE, J3F, Hobart Fryers, Wells Fryer F55, F68
• Terminals: 4 terminals, 1/4 tabs
