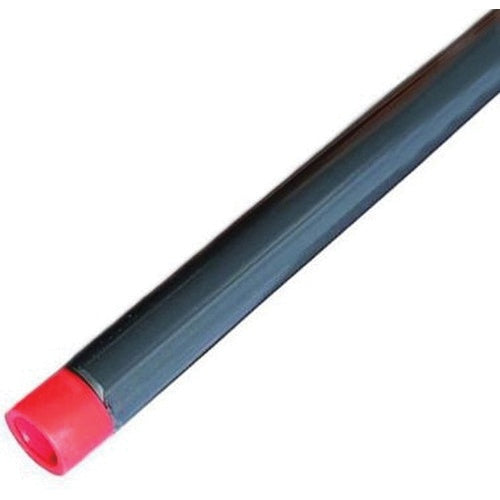

Robroy PRHCONDUIT-3 Plasti-Bond Redh2ot Rigid Metal Conduit PVC 3 in. Gray Green

Product Description

The ROBROY PRHCONDUIT-3 Plasti-Bond REDH2OT® 3 in. grey 40 mil PVC-Coated hot-galvanized (exterior) rigid steel conduit features a 2 mil Green urethane interior coating and is 10 ft. in length. This PVC coated rigid metal conduit protects conductors from mechanical damage and corrosive attack, while maintaining electrical continuity across assembled joints.

• PVC coated rigid metal conduit
• Red urethane interior coating
• Protects conductors from mechanical damage and corrosive attack

Product Highlights

Maintains electrical continuity across assembled joints. Features a 40 mil gray PVC exterior coating and a 2 mil red urethane interior coating.

Product Information

Standard Information

• Brand: ROBROY
• Manufacturer Part Number: PRHCONDUIT-3
• Country of Origin: US - United States

Technical Specifications

• ECCN: EAR99
• Country of Origin: US - United States
• UNSPSC: 39131706
• Trade Size: 3 in.
• Outer Diameter: 3.580 in.
• Length: 10 ft.
• Conduit Inner Diameter: 3.09 in.
• Wall Thickness: 0.205 Inch
• End Style: Threaded
• Material: Steel
• Finish: 2 Mil Red Urethane Coated (Interior), 40 Mil Gray PVC Coated (Exterior) Over Hot Galvanized
• Approval: UL (Canada and US), ETL, UL 6, CSA C22.2
• Thread Protector Cap Color: Blue
• Application: Electrical and Data wire raceways in harsh environments
• IGCC: 5548
• Type: CONDUIT
• Standard: ETL PVC-001; UL 6 File E2314; ANSI C80.1; NEMA RN-1
• Manufacturer: ROBROY
• Connector Type: Threaded
• Inside Diameter: 3.090IN IN
• Outside Diameter: 3.580IN IN
• Special Features: 40 mil gray PVC exterior coating - 2 mil red urethane interior coating
• Vendor SKU: PRHCONDUIT-3
• UPC: 78401120008
• Standard & Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ETL PVC-001|UL 6|UL File No. E2314|ANSI C80.1|NEMA RN-1
• Manufacturer Name: Robroy
• Country Of Origin: United States of America
• Sub Brand: Plasti-Bond, REDH2OT®
• Item Name: Rigid Metal Conduit
• Connection Type: Threaded
• Coating Thickness: 2 mil Interior, 40 mil Exterior
• Brand Name: Robroy
• Standards: ETL, UL 6, CSA C22.2, cULus Listed, ISO 9001
• Exterior Finish: A nominal .040 inch (40 mil) gray PVC coating
• Interior Finish: A nominal .002 inch (2 mil) red urethane
• Thread Finish: A clear urethane coating over Hot Galvanized Steel
• Diameter With Coating (Inches): 3.58
• Internal Inside Diameter (Inches): 3.09
• Metric Size Designators: 78
• Nominal Weight (Pounds per 100 FT): 708
• Outside Wall Thickness (Inches): 0.205
• Pipe Size (Inches): 3
• Traverse Area (Sq. Inches): 7.499
• Fitting Configuration: STRAIGHT
• Fitting Type: CONDUIT
• Product Category: CONDUIT
• Product Family: PVC Coated Conduit
• Product Series: REDH2OT
• Description: 3in. Conduit, Sold In 10 Foot Lengths
• Jacket Material: Polyvinyl Chloride
• Special Properties: Acid Resistant, Oil Resistant
• Approvals: CSA, UL
