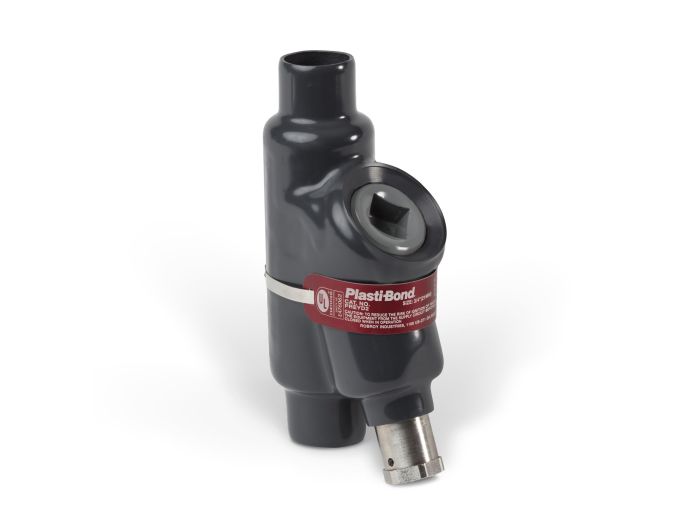

The ROBROY PREYS116 is a sealing fitting used in conduit runs to stop gasses, vapors, or flames from migrating from one part of the conduit system to another. It features male and female connection types and is suitable for vertical or horizontal mounting positions. Constructed with a 2 mil red urethane coated ferrous metal body interior and a 40 mil gray PVC coated ferrous metal body exterior.
Sealing Sleeves on All Conduit Openings
NEC/CEC Hazardous Location Rated
2 Mil Red Urethane Interior Coating
Product Highlights
This fitting enhances safety by limiting the spread of potential explosions and is approved by UL (Canada and US) and ETL.
Product Information
Standard Information
Brand: ROBROY
Manufacturer Part Number: PREYS116
Country of Origin: US - United States
Technical Specifications
Type
Sealing Fitting
Turning Radius
1.16 Inch
Trade Size
1/2 Inch
Connection Type
Male, Female
Material
2 Mil Red Urethane Coated Ferrous Metal Body Interior, 40 Mil Gray PVC Coated Ferrous Metal Body Exterior
Mounting Position
Vertical/Horizontal
Enclosure
Class I Division 1 and 2 Groups A B C D, Class II Division 1 Groups E F G, Class II Division 2 Groups F G, Class III
Approval
UL (Canada and US), ETL
Manufacturer Part Number
PREYS116
Product Series
REDH2OT
Family Series
Plasti-Bond, a RobRoy Company Fittings, REDH2OT Series
Description
1/2 M/F Sealing Fitting
Hazardous Location
Yes
Approvals
cULus
Comments
Exterior PVC Coating, Interior Urethane Coating
Brand
Plasti-Bond
Finish
PVC Coated With Urethane
Composition
Metallic
Use With
Conduit Runs to Stop Gasses, Thus Limiting The Spread of any Potential Explosion and Enhancing Safety, Vapors or Flames From Migrating From One Part of The Conduit System to Another
