Robroy KNRA-2-1/2 Rob-R Korns Conduit Clamp Right Angle 2 1/2 Clamp

Product Description

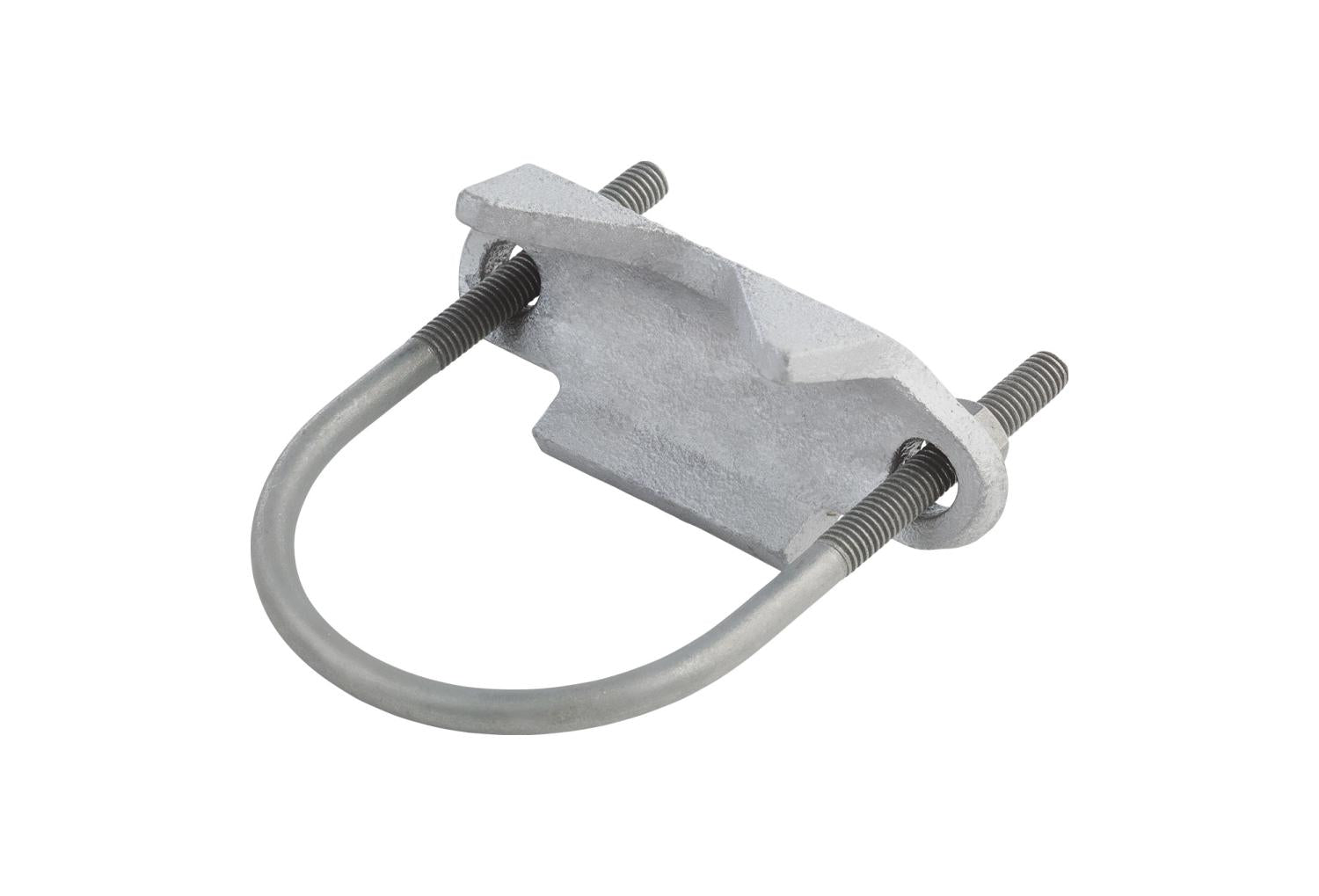

The ROBROY KNRA-2-1/2 Rob-R Korns Conduit Clamp is a right angle type conduit clamp designed to secure Galvanized Rigid Conduit (GRC), Intermediate Metal Conduit (IMC), or Electric Metallic Tube (EMT). It is made from malleable iron with a hot dip galvanized finish. This clamp is suitable for electrical and data wire raceways.

• 2-1/2 Inch Trade Size
• Malleable Iron Material
• Hot Dip Galvanized Finish

Product Highlights

Secures GRC, IMC, or EMT conduit across or parallel to beam, channel, and angle supports.

Product Information

Standard Information

• Brand: ROBROY
• Manufacturer Part Number: KNRA-2-1/2

Technical Specifications

• Type: Right Angle
• Trade Size: 2-1/2 Inch
• Material: Malleable Iron
• Finish: Hot Dip Galvanized
• Approval: UL 6, CSA C22.2
• Applicable standard: ANSI C80.1
• Applications: Electrical and Data wire raceways
• Brand: Robroy Industries
• Sub Brand: ECN/KORNS
• Buy American Compliant: Y
• Dimension A (Inches): 2-1/2
• Dimension B (Inches): 2-1/2
• Dimension C (Inches): 4-1/2
• Dimension D (Inches): 2-5/8
• Dimension E (Inches): 4-1/16
• UL File Number: E216996
• CSA: CAN/CSA-C22.2 No. 18
• ANSI/NFPA 70 National Electric Code: cULus Listed
• UL 2239: cULus Listed
