Product Description

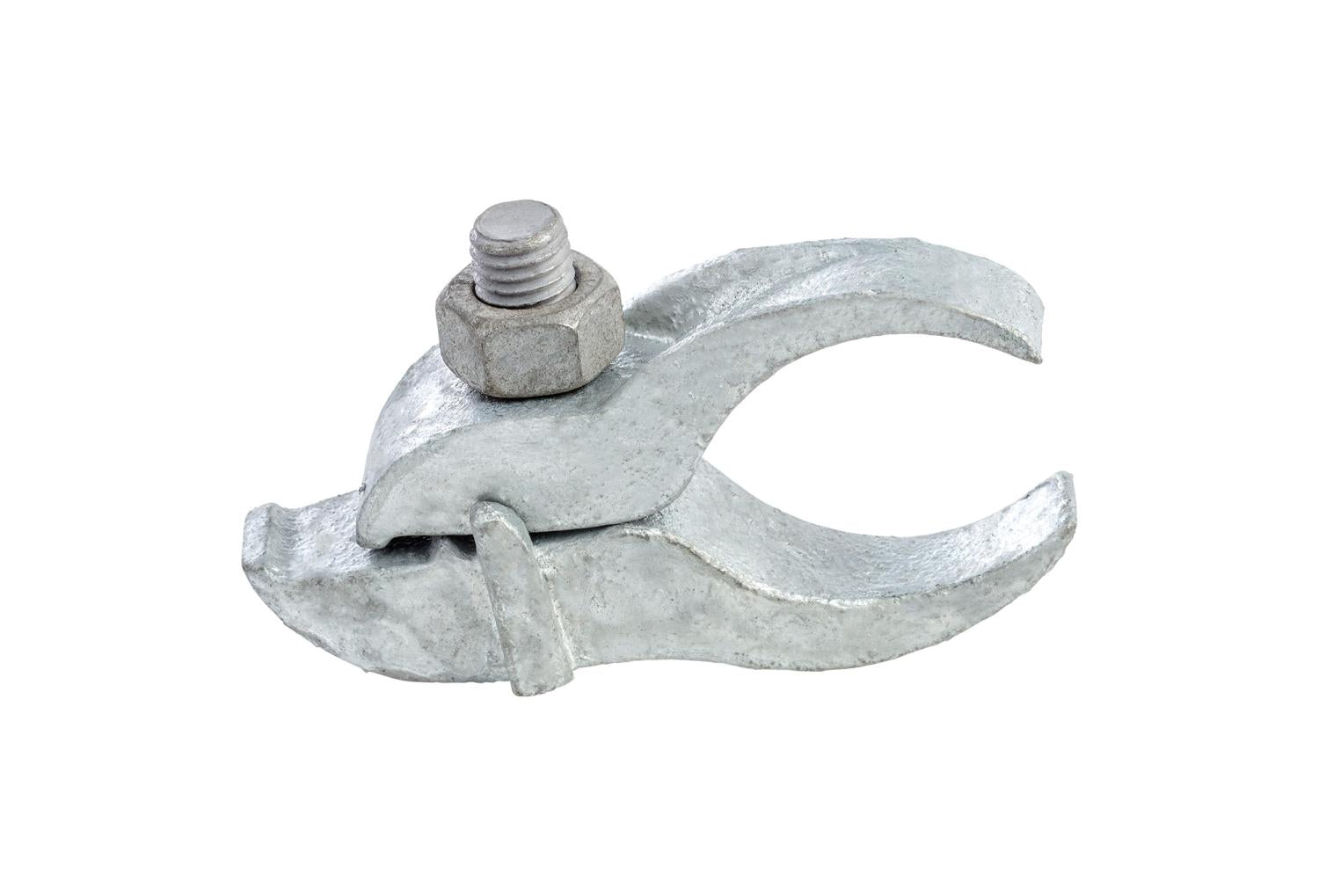

The ROBROY KNPAR-3/4 Rob-R Korns Conduit Clamp is a parallel type clamp with a 3/4 inch trade size. Constructed from malleable iron with a hot dip galvanized finish, it is designed for securing rigid conduit across or parallel to beam, channel, and angle supports. It is approved for UL 6 and CSA C22.2 standards and conforms to ANSI C80.1.
- Parallel type conduit clamp.
- Constructed from malleable iron with a hot dip galvanized finish.
- Approved for UL 6 and CSA C22.2 standards.
Product Highlights
The ROBROY KNPAR-3/4 is ideal for electrical and data wire raceways, providing reliable support in various applications.
Product Information
Standard Information
-
Brand: ROBROY
-
Manufacturer Part Number: KNPAR-3/4
Technical Specifications
-
Type: Parallel
-
Trade Size: 3/4 Inch
-
Material: Malleable Iron
-
Finish: Hot Dip Galvanized
-
Approval: UL 6, CSA C22.2
-
Applicable standard: ANSI C80.1
-
Applications: Electrical and Data wire raceways
-
Connector Type: Screw Set
-
Brand: Robroy Industries
-
Sub Brand: ECN/KORNS
-
Buy American Compliant: Y
-
Standard Materials: Steel Bolts and Nuts
-
Standard Finish: Steel Bolts-Mechanically Galvanized
-
Dimension A (Inches): 3-1/16
-
Dimension B (Inches): 1-11/16
-
Load Rating: 50 lbs
-
Product Category: Korns Clamps
-
Product Family: Parrallel Conduit Clamps
-
Manufacturer: Robroy Industries
-
Manufacturer Part Number: KNPAR-3/4
-
Standards Compliance: ANSI/UL 2239, CAN/CSA-C22.2 No. 18, ANSI/NFPA 70 National Electric Code, Canadian Electric Code (CEC) Part 1
