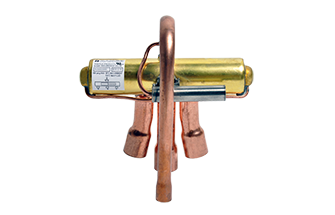

ROBERTSHAW V26-100 Reversing Valve R22 R410A

Product Description

The ROBERTSHAW V26-100 is a reversing valve suitable for heat pump applications including window-type, unitary, and split systems. This valve plays a crucial role in reversing the refrigerant flow, enabling both heating and cooling functions within a heat pump system. The valve is constructed with a hermetically sealed brass housing for durability and reliability.

• Designed for heat pump applications
• Enables both heating and cooling
• Reverses flow direction of refrigerant

Product Highlights

This valve is ideal for HVAC systems that require efficient heating and cooling capability, allowing for seamless transitions between modes.

Product Information

Standard Information

• Type: Reversing Valve
• Product Type: HVAC Parts

Technical Specifications

• Compatible with: CFC, HCFC, and HFC Refrigerants such as R22, R134A, R404A, R407C, R410A
• Capacity: Nominal 2 tons
• Body: Hermetically sealed brass housing
• Operating Pressure: 0 - 690 psig
• Temperature Range: -40 degrees C to 70 degrees C
• Tube Size Suction: 1/2 inch
