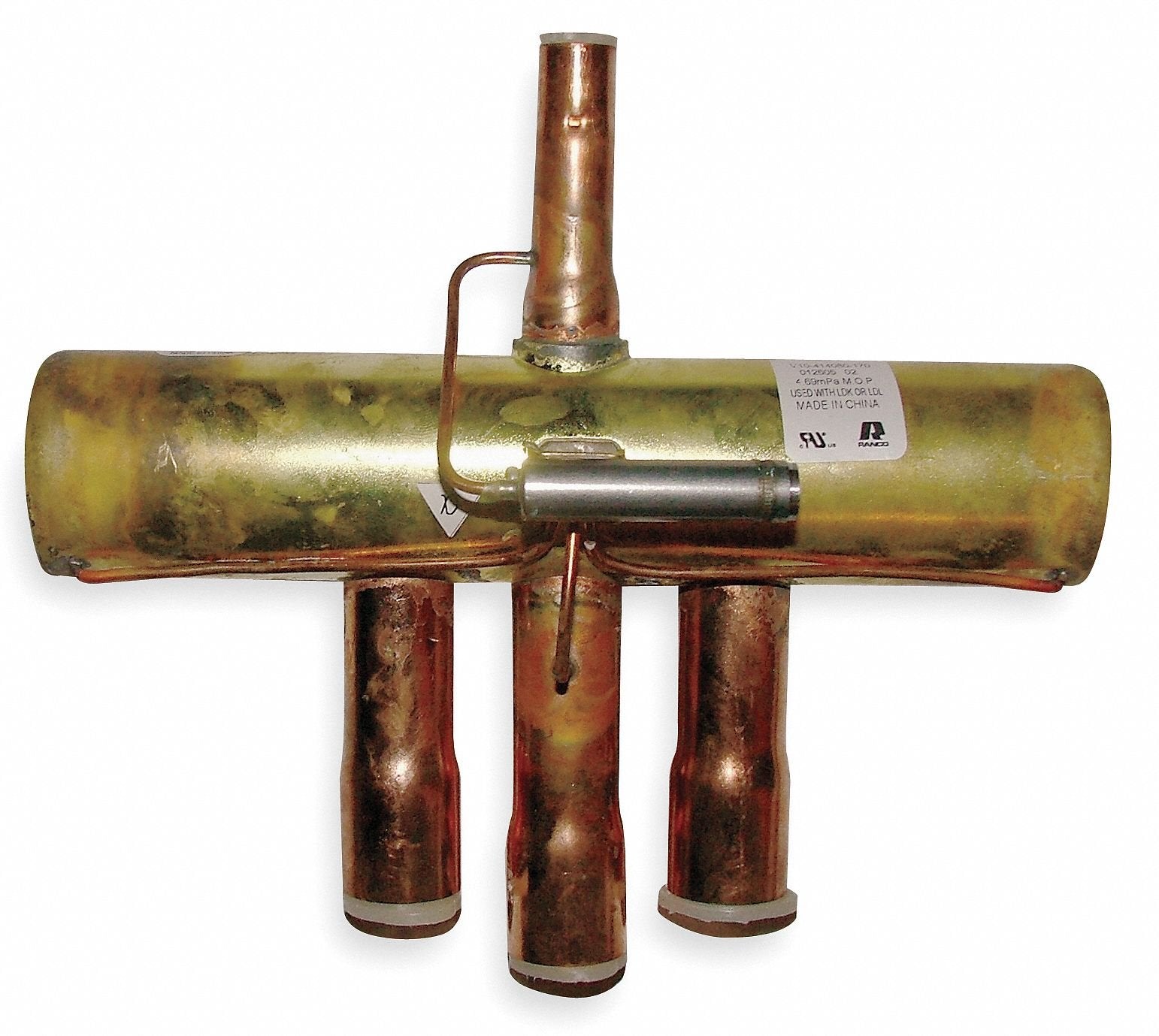

Ranco V10-414080-170 4-Way Reversing Valve for Heat Pumps with Coil Operation

Product Description

The Ranco 4-Way Reversing Valve, model V10-414080-170, is engineered for heat pump applications. This valve facilitates the reversal of refrigerant flow in the system, which is crucial for the heating, cooling, and defrosting cycles of heat pumps used in residential and commercial settings.

• Utilizes a coil-operated slide mechanism for efficient operation.
• Compatible with various refrigerants including R-22, R-410A.
• Designed for reliability with hermetic construction using brass, copper, and stainless steel.

Product Highlights

This valve is known for its minimal pressure drop, enhancing system efficiency. It incorporates a 4-way pilot valve that utilizes high and low side refrigerant pressures to enable positive reversals at low pressure differentials. The solenoid coils are designed for low power consumption and are color-coded by voltage, emphasizing energy efficiency and ease of installation.

Product Information

Standard Information

• Brand: Ranco
• MPN: V10-414080-170

Technical Specifications

• Valve Type: Reversing Valve
• Tube Size Suction: 7/8 inches and 1/2 inches
• Capacity R-22: 3.0 to 11.9 tons
• Capacity R-410A: 3.8 to 10.1 tons
