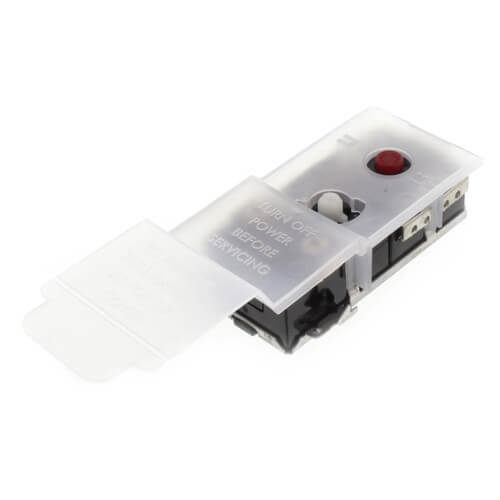

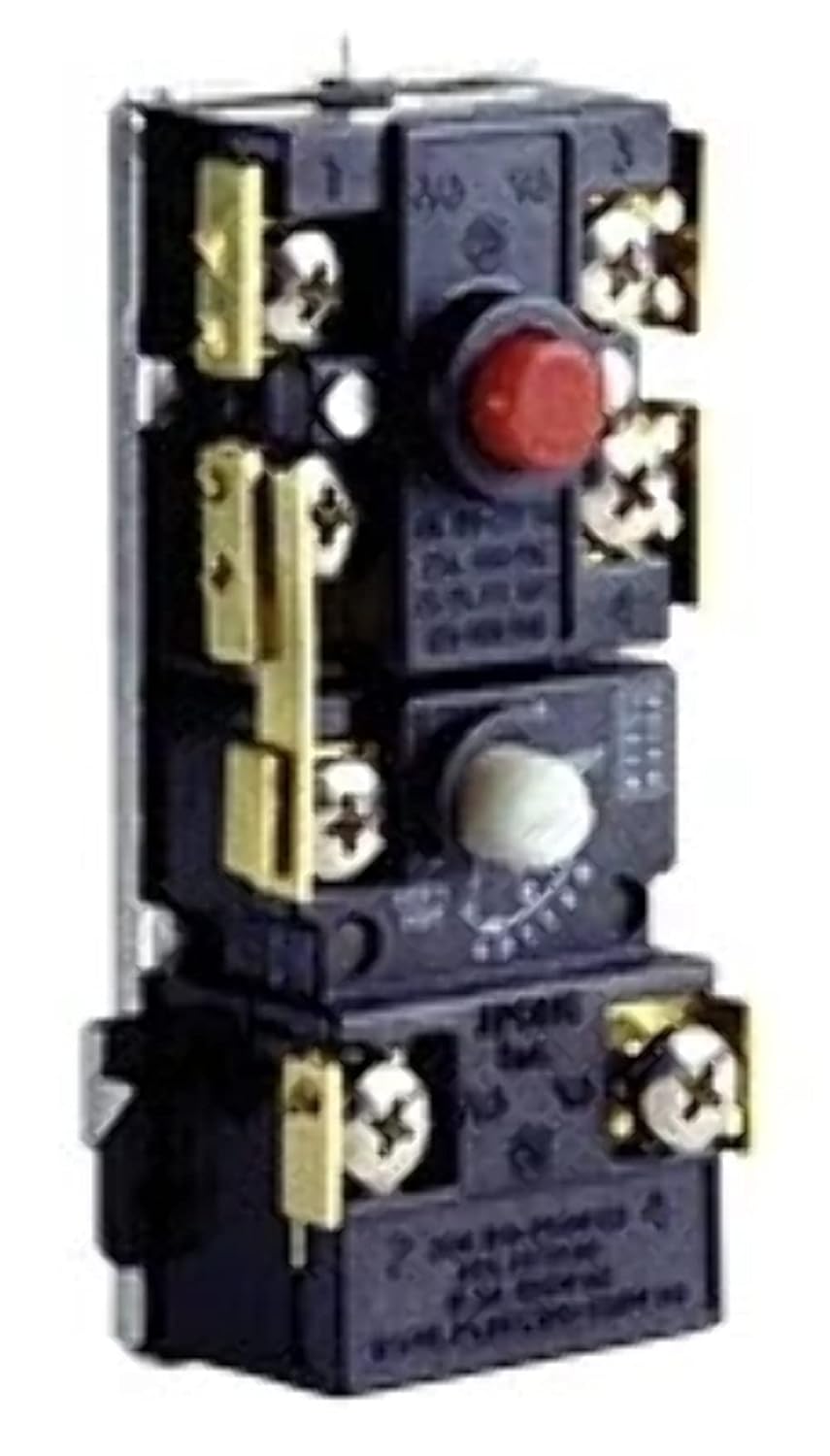

The 5600 Series electric water thermostats are designed for replacement on domestic and commercial water heaters. The 5600 Series features thermostat (automatic cycling) and high limit (manual reset) in one small housing. Compact size (3-3/4" overall length) assures firm clamp to tank. Controls have snap action operation, fast and easy wiring, and adjustable temperature ranges. See ordering chart for exact ranges available.
Type High Limit
Voltage Rating 120 to 250/277/480 Volt AC (Thermostat Control), 277/480/120 to 480 Volt AC (ACHi-Limit Control)
Current Rating 30 Amp at 120 to 250 Volt AC, 22 Amp at 277 Volt AC, 12.5 Amp at 480 Volt AC (Thermostat Control), 40 Amp at 277 Volt AC, 25 Amp at 480 Volt AC (ACHi-Limit Control)
Power Rating 125 Volt Amp at 120 to 480 Volt AC (Pilot Duty), 3600 Watt at 120 Volt AC, 7200 Watt at 240 Volt AC
