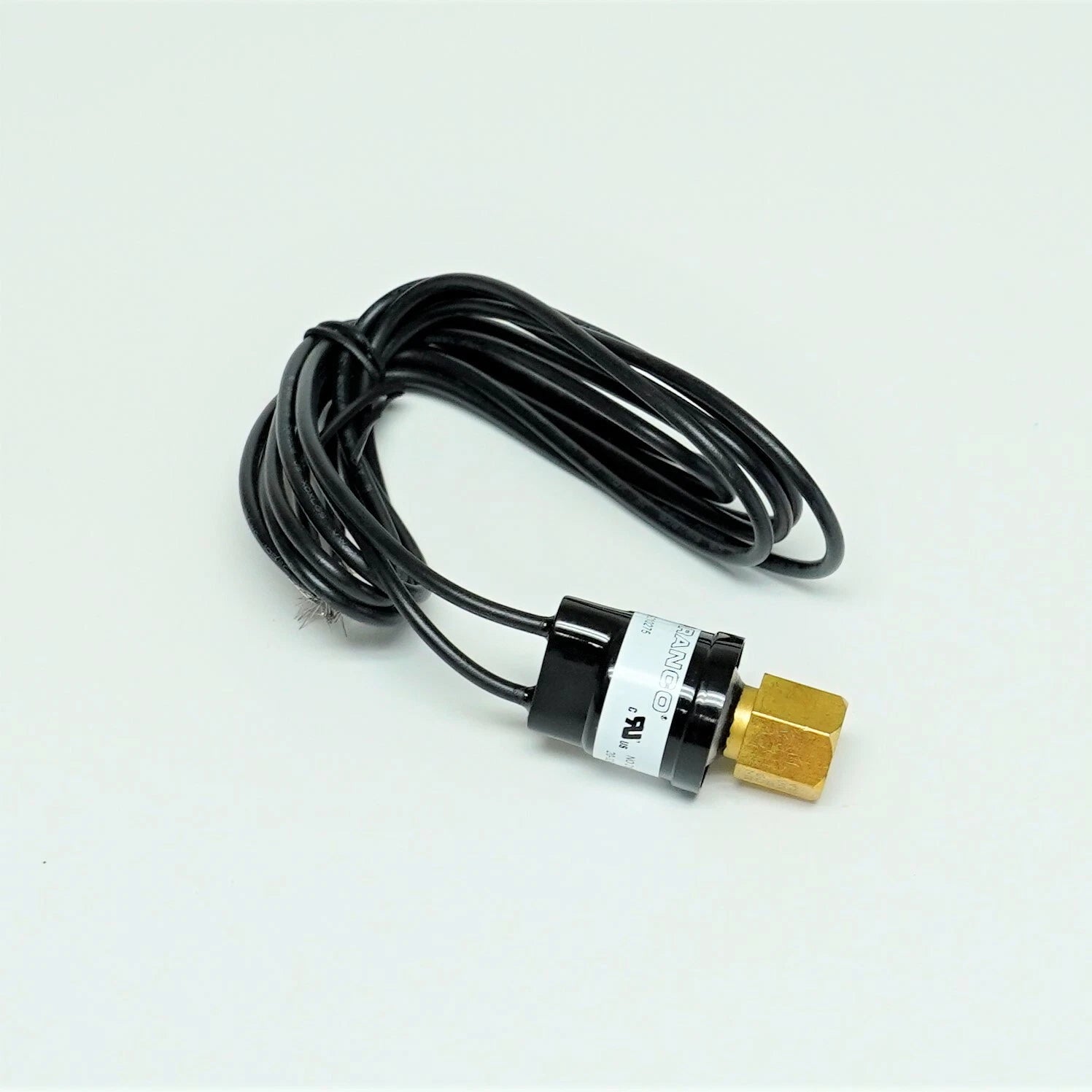

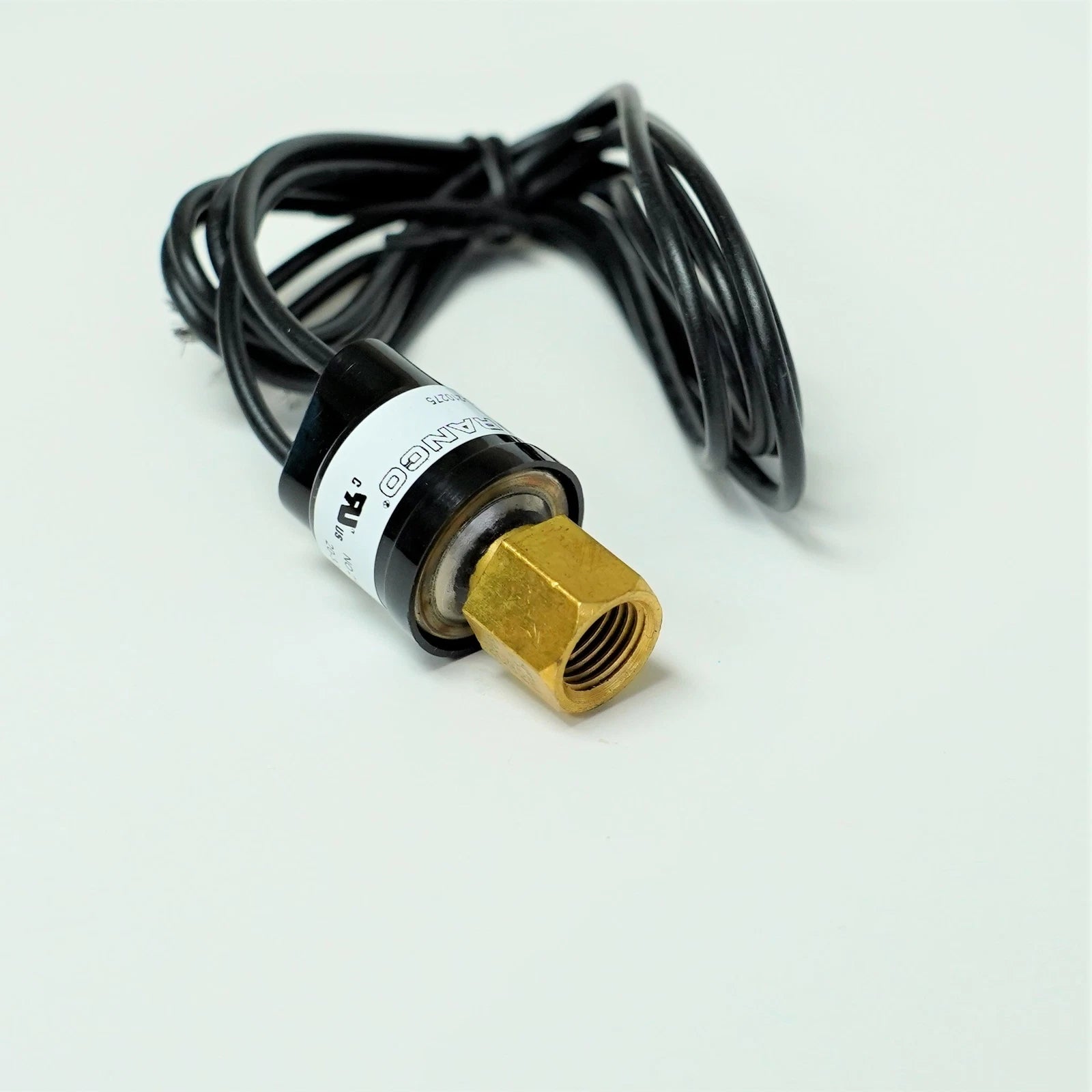

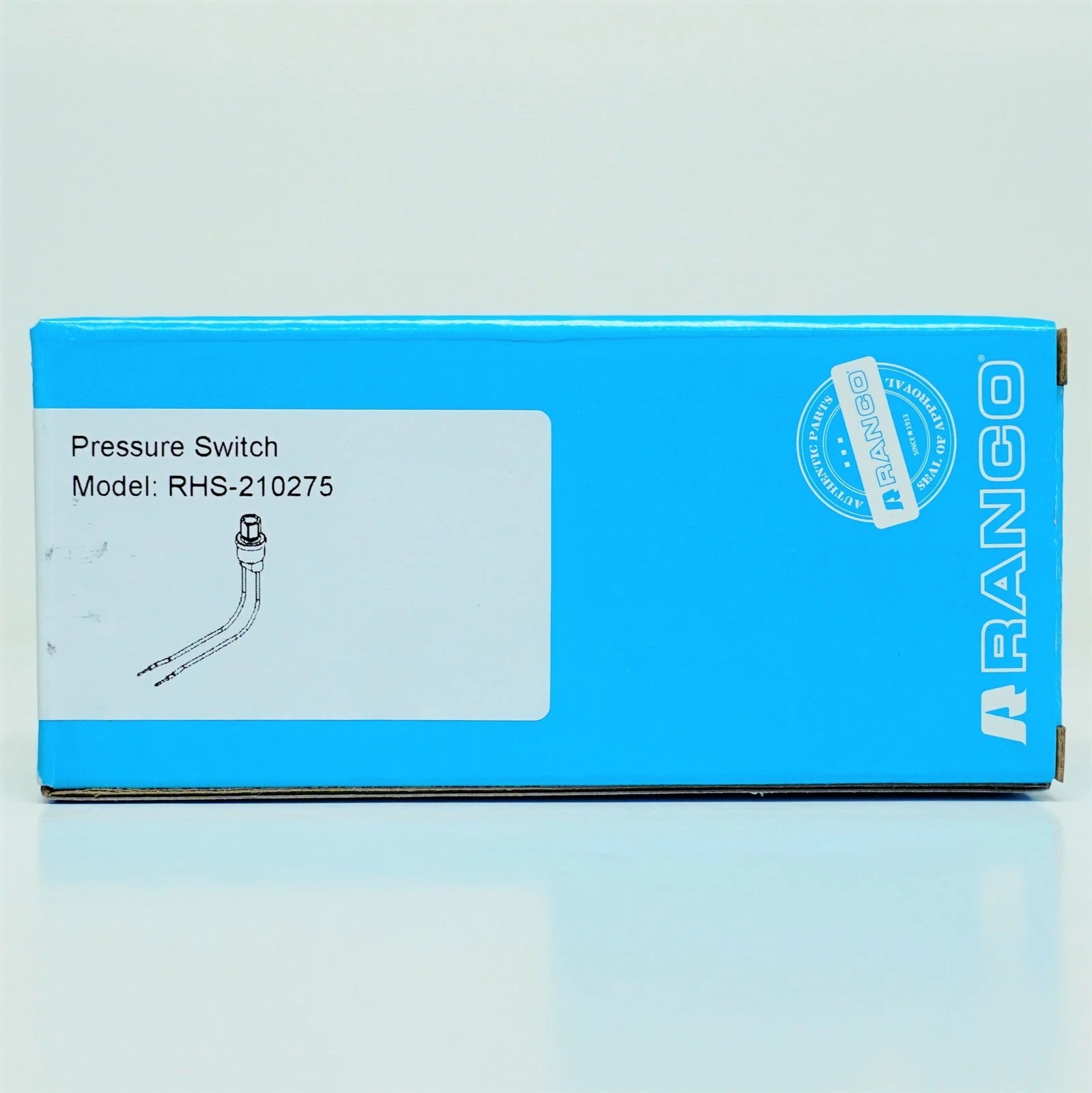

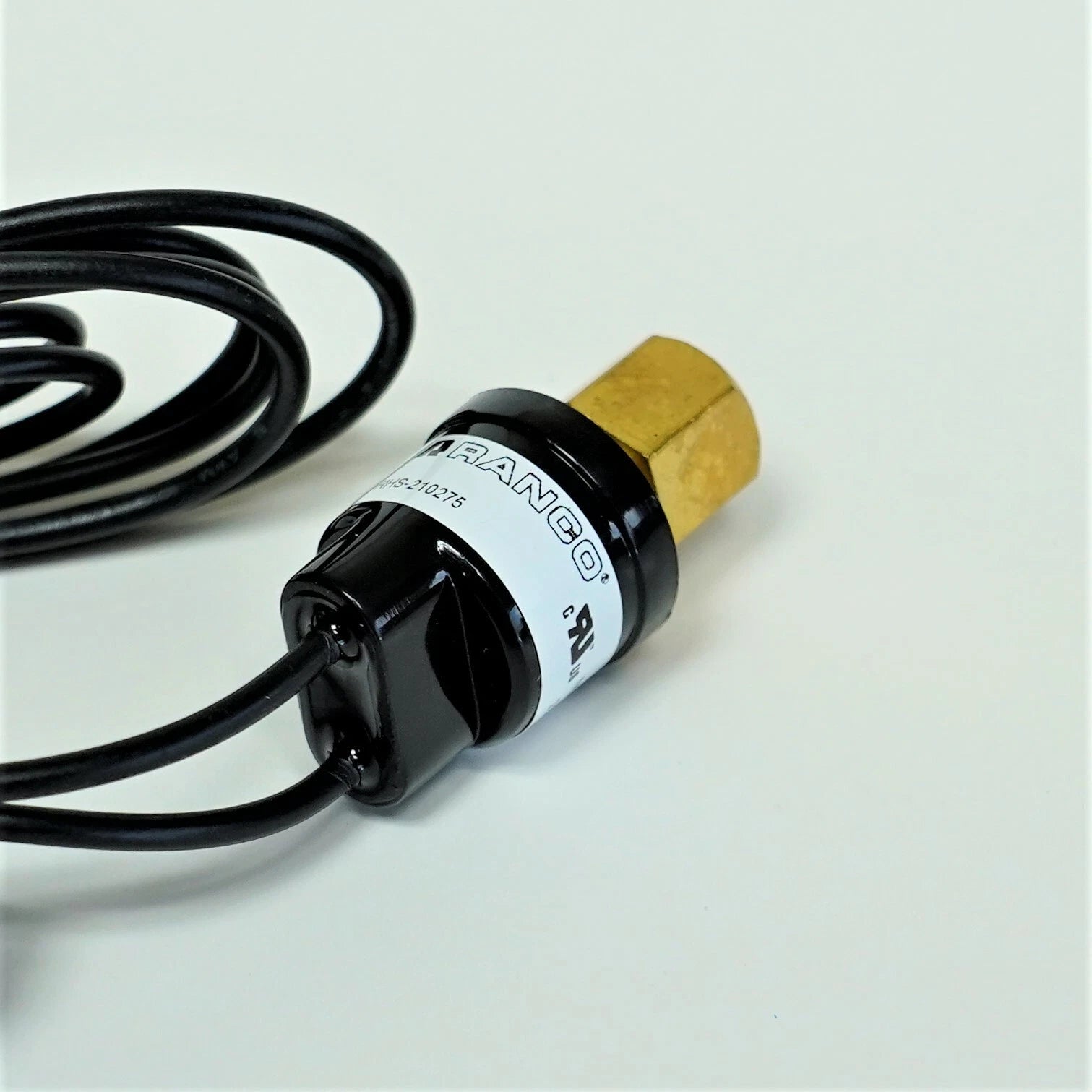

ROBERTSHAW RHS-210275 Fan Cycling Pressure Switch

Product Description

The ROBERTSHAW RHS-210275 is a Ranco pressure switch built for sensing and controlling pressure. It effectively operates in fan cycling applications and includes an automatic reset feature. This switch is versatile for both low and high pressure cutouts and is designed for reliable cycling control.

• Designed for fan cycling applications.
• Automatic reset functionality enhances usability.
• Accurately senses and acts upon a pre-set pressure threshold.

Product Highlights

The RHS-210275 is suitable for various HVAC systems where reliable pressure management is crucial.

Product Information

Standard Information

• Brand: Robertshaw
• MPN: RHS-210275

Technical Specifications

• Application: Fan Cycling
• Reset: Automatic
• Open (Cut Out): 210 PSI
• Open (Cut In): 275 PSI
• Pressure Range: 0-50 bar, 0-735 psig
• Burst Pressure: 345 bar, 5000 psig
• Terminal Type: Normally Open / Normally Closed
• Fluid Temperature: -55 °C to 135 °C / -65 °F to 275 °F
• Ambient Temperature: -30 °C to 70 °C / -40 °F to 185 °F
• Electrical Rating: 120 VAC: 5.8 FLA / 34.8 LRA | 240 VAC: 2.9 FLA / 17.4 LRA | 120/277 VAC: 375 VA | 24 VAC: 125 VA
• Pressure Fittings: 1/4 SAE FF
• Electrical Connection: IP65-rated 1m wire lead cables
• Lifetime (Cycles): 100,000
