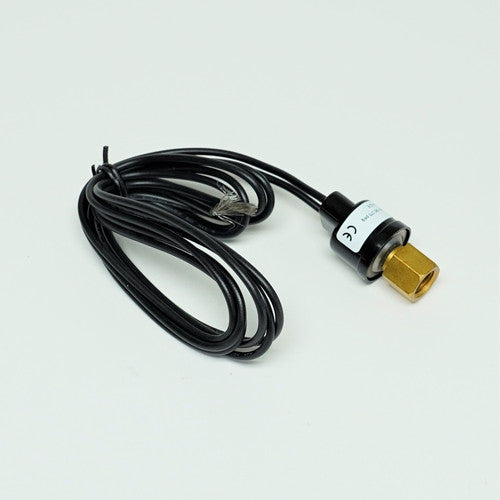

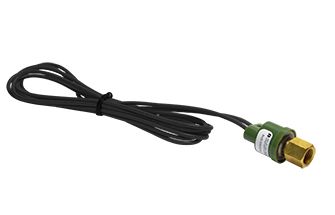

ROBERTSHAW RHS-195275 Fan Cycling Pressure Switch

Product Description

The ROBERTSHAW RHS-195275 is a Ranco pressure switch designed for monitoring and responding to pressure levels. It works effectively for both low and high-pressure applications. This switch includes pressure fittings and electrical connections, making it versatile for various setups.

• Designed to operate upon reaching specified pressure thresholds.
• Applicable for low-pressure and high-pressure cutout operations.
• Includes IP65-rated 1m wire lead cables for reliable electrical connection.

Product Highlights

This pressure switch offers automatic reset functionality and is resilient against high-pressure environments.

Product Information

Standard Information

• Application: Fan Cycling
• Reset: Automatic

Technical Specifications

• Open Cut Out: 195 PSI
• Open Cut In: 275 PSI
• Pressure Range: 0-50 bar, 0-735 psig
• Burst Pressure: 345 bar, 5000 psig
• Terminal Type: Normally Open (Low Pressure Cutout) | Normally Closed (High Pressure Cutout)
• Fluid Temperature: -55 °C to 135 °C / -65 °F to 275 °F
• Ambient Temperature: -30 °C to 70 °C / -40 °F to 185 °F
• Electrical Rating: 120 VAC: 5.8 FLA / 34.8 LRA | 240 VAC: 2.9 FLA / 17.4 LRA | 120/277 VAC: 375 VA | 24 VAC: 125 VA
• Pressure Fittings: 1/4 SAE FF
• Electrical Connection: IP65-rated 1m wire lead cables
• Lifetime (Cycles): 100,000
