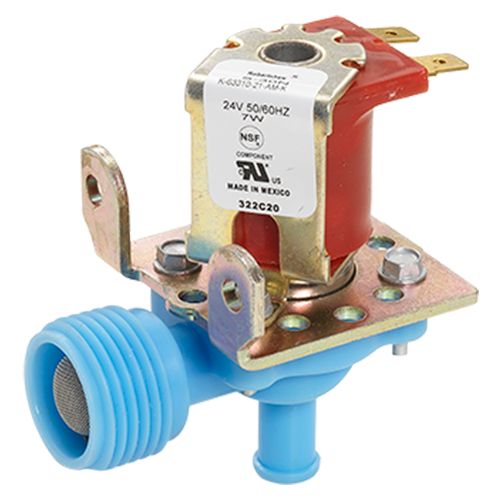

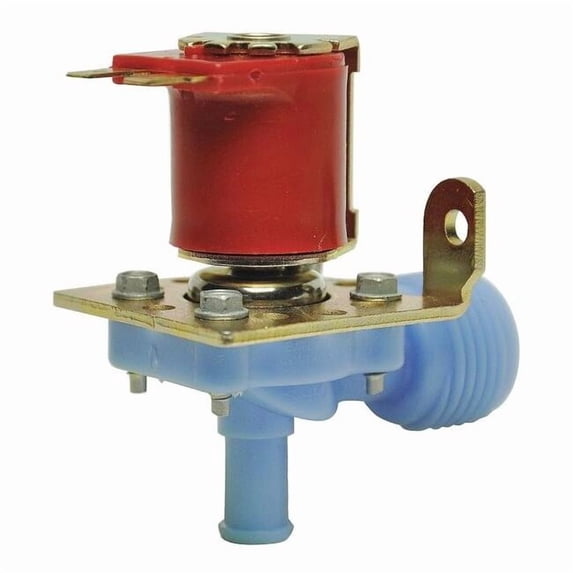

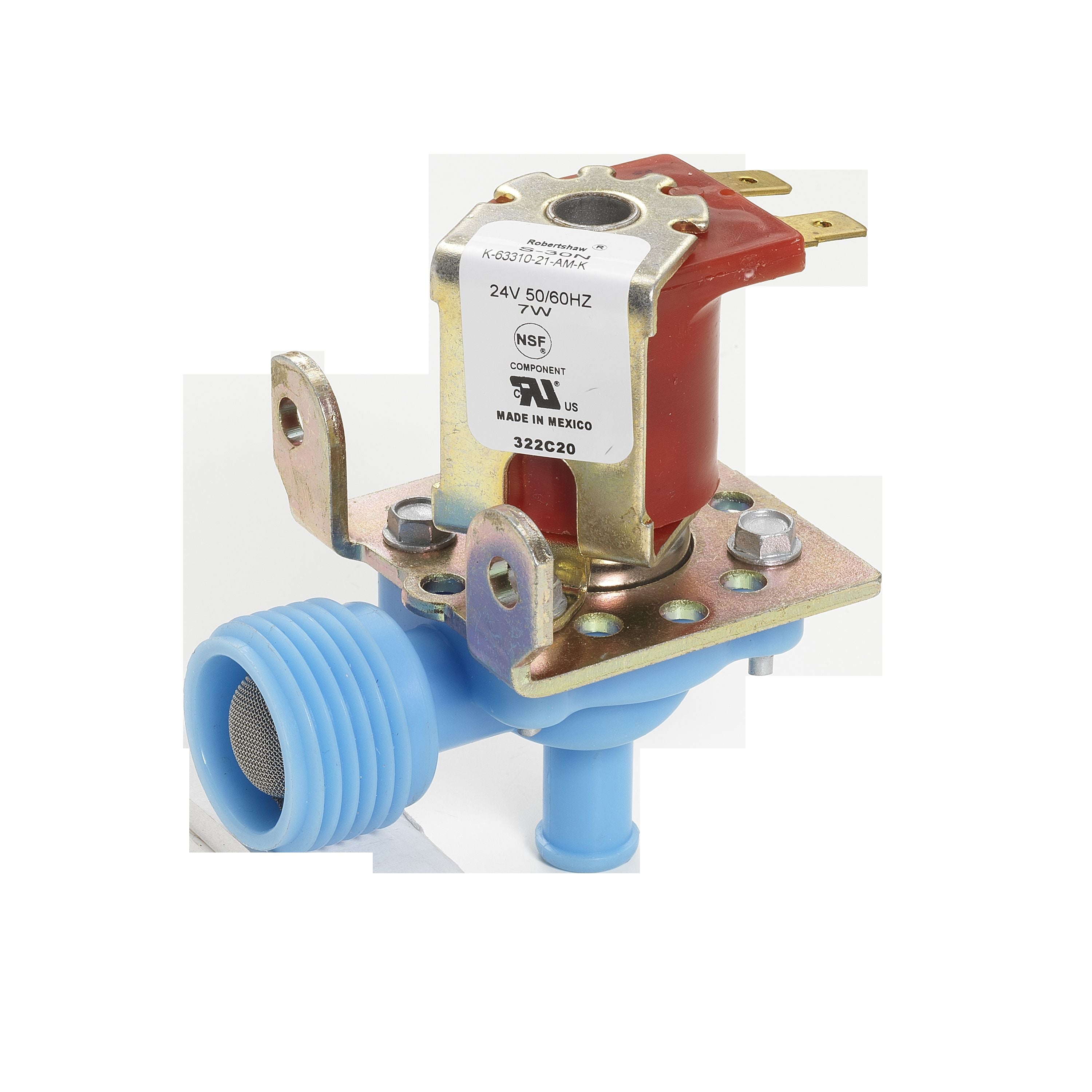

Robertshaw IMV-865 S-30 ice machine water valve 24V (3/4 inch inlet 1/2 inch outlet)

Product Description

The ROBERTSHAW IMV-865 S-30 Water Valve Series is engineered for low flow applications, including residential refrigerator icemakers, commercial ice machines, dishwashers, and energy-conserving plumbing and heating systems. Constructed from polypropylene, this 24V AC valve features a 3/4 inch 11 NHT inlet and a 1/2 inch ID hose outlet, operating efficiently within a pressure range of 20 to 120 PSI and delivering a flow rate of 0.75 GPM.

• Single solenoid valve with a pilot-operated diaphragm provides high flow capacity with minimum power requirements.
• Encapsulated coil provides high mechanical and dielectric strength, and is moisture resistant.
• Unique diaphragm design reduces unwanted particles from entering the armature area.

Product Highlights

This polypropylene water valve ensures efficient, low-flow operation for ice makers and other appliances, featuring a robust design for durability and consistent performance.

Product Information

Standard Information

• Brand: ROBERTSHAW
• Manufacturer Part Number: IMV-865
• Country of Origin: Mexico

Technical Specifications

• Input Voltage: 24V AC, 50/60 Hz
• Material: Polypropylene
• Inlet Size: 3/4 inch 11 NHT
• Inlet Type: NHT
• Application: Ice Machines
• Outlet Size: 1/2 inch
• Outlet Type: ID Hose
• Flow Rate: 0.75 GPM
• Max Pressure: 120 PSI
• Min Pressure: 20 PSI
• Series Application: Commercial Ice Machine Water Valve S-30
• Terminals: 1/4 inch Male
• Fits Brand: Hoshizaki
• Compatible Model Number: 4A086501
• Product Type: Low Flow Ice Machine Water Valve
