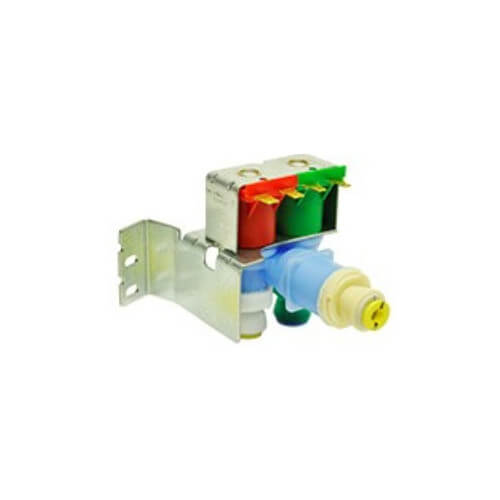

Robertshaw IMV-708 N-86 Ice Machine Water Valve (120V)

Product Description

The Robertshaw IMV-708 is an N-86 ice machine water valve designed for residential refrigerator icemakers. This automatic valve allows control of water flow through two outlets using a single inlet. It ensures efficient operation of ice machines with reliable performance.

• Direct acting armature for high flow capacity with low power usage
• Moisture-resistant encapsulated coil for strength
• Body made of polypro for corrosion resistance

Product Highlights

This valve is suitable for applications using water at temperatures up to one hundred sixty degrees Fahrenheit. Ideal for ice machines, it operates effectively under various pressures.

Product Information

Standard Information

• Series Application: Residential Ice Machine Water Valve N-86 Dual
• Electrical Rating: 120V AC, 50/60 Hz, 35W / 120V AC, 50/60 Hz, 20W

Technical Specifications

• Body Material: Polypro
• Inlet Size: 1/4 flare, loxit, or compression
• Operating Pressure: 20 PSI to 120 PSI
• Outlet Size: 7/16 UNF / 1/2 UNF
• Terminals: 1/4 Male / 3/16 Male
• Flow Rate: 130 CC in 7.5 seconds, 22-38 CC per second
• Replaces: Whirlpool 2188708
