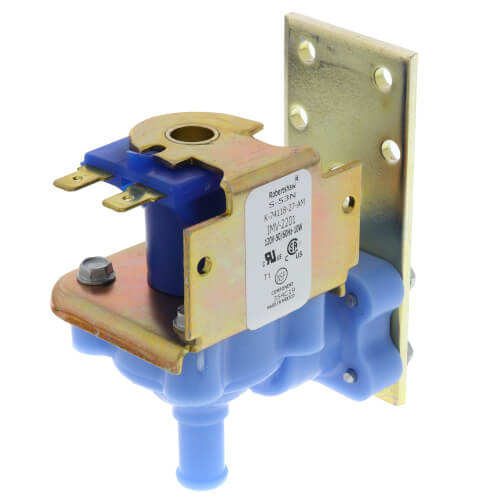

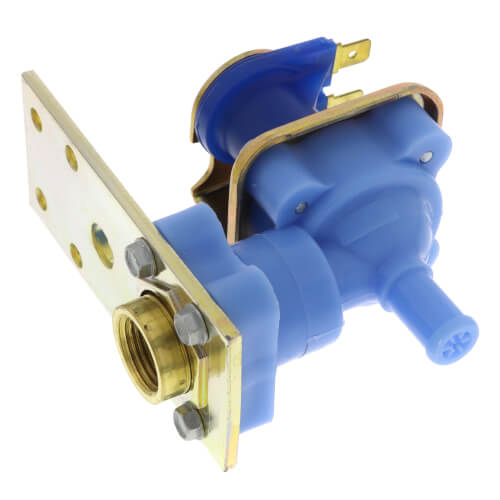

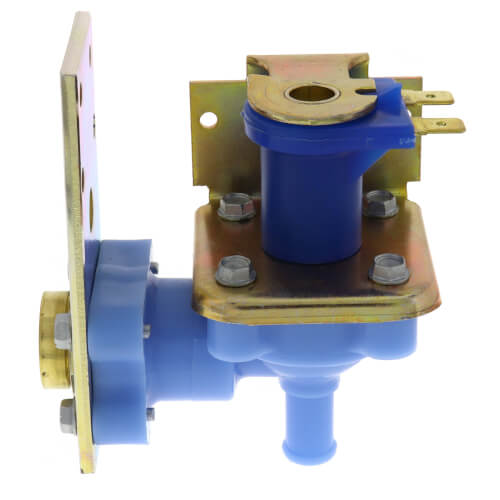

Robertshaw IMV-2201 S-53 Ice Machine Water Valve 120V

Product Description

The Robertshaw IMV-2201 is a single solenoid valve designed for dishwashing machines and commercial ice makers. This model features a brass inlet fitting and a mounting bracket that allows for a direct connection to the supply plumbing without causing torque on the valve body.

• Pilot-operated diaphragm allows high flow capacity with minimal power need.
• Unique diaphragm design prevents unwanted particles from reaching the armature.
• Made of polypropylene to endure various harsh water conditions.

Product Highlights

Ideal for ice machines operating with water temperatures up to one hundred sixty degrees Fahrenheit. This valve is constructed to reduce jamming from foreign materials and provides reliable performance in commercial settings.

Product Information

Standard Information

• Brand: Robertshaw
• Category: Ice Maker Valves

Technical Specifications

• MPN: IMV-2201
• Weight: 0.5875 pounds
• Inlet Size: 3/8 inches
• Outlet Size: 3/8 inches
• Pressure Range: 20 to 120 psi
• Flow Rate: 1.25 GPM
• Voltage: 120V
• Material: Polypropylene
