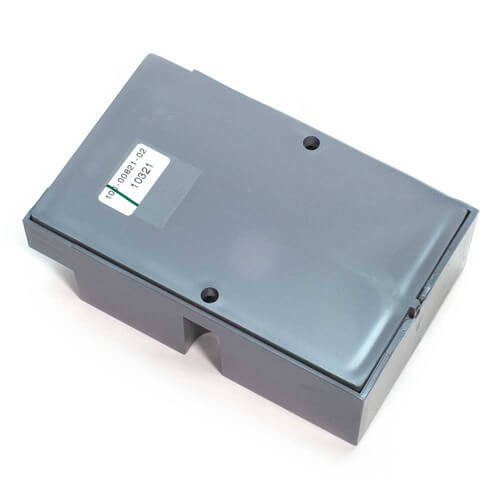

Robertshaw 780-003 Lockout Universal Ignition Control Module with 30 Second Purge

Product Description

Enhance your water heater's efficiency with the Robertshaw 780-003 Universal Ignition Control Module, designed for seamless integration and optimal performance. This advanced module features a 30-second purge cycle that ensures safety and reliability in igniting operations.

• Universal compatibility for easy installation.
• Integrated safety lockout mechanism.
• Robust construction suitable for various environmental conditions.

Product Highlights

The Robertshaw 780-003 ignition control is vital for HVAC professionals and maintenance engineers seeking reliability and precision. With features like automatic pilot flame sensing and adjustable spark rate, this module is top-notch for commercial and residential heating systems.

Technical Specifications

• Input Voltage: 24 VAC to 50/60 Hz
• Transform: 24 VAC / 20 VA
• Spark Rate: 3 to 4 sparks per second
• Pilot Valve: 1 amp at 0.5 PF
• Main Valve: 1 amp at 0.5 PF
• Combined Load: 1.5 at 0.4 PF
• Flame Sense Current: 0.7 μA DC @ 25°C / 24 VAC
• Max. Total Current: 1.5 amp
• Flame Failure Recognition Time: 0.8 seconds maximum
• Thermostat Anticipator Setting: 0.7 amp
• Ambient Temperature Rating: -40 to 175°F (-40 to 80°C)
• Relative Humidity: 95% noncondensing at 104°F
