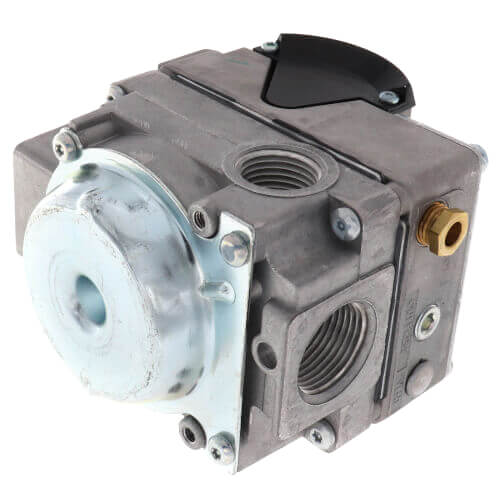

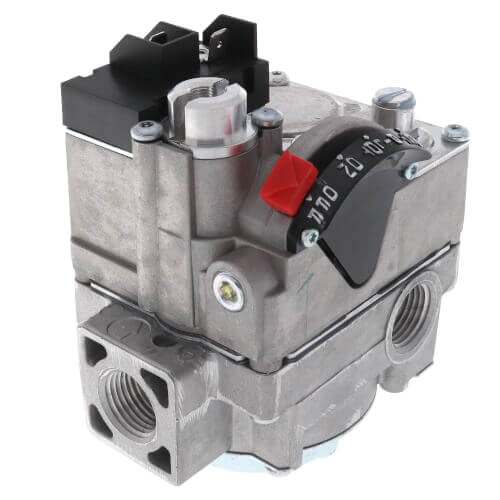

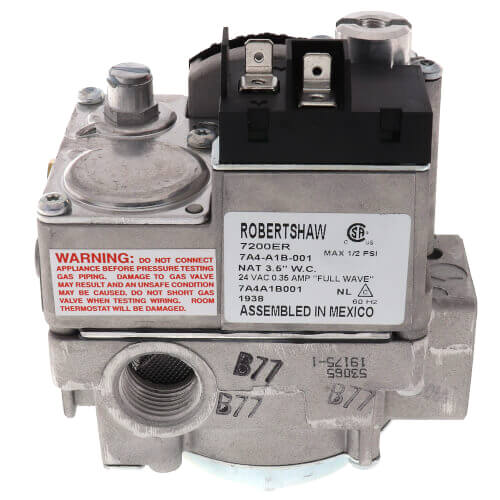

Robertshaw 720-082 3/4 X 3/4 24v Universal 2-Stage Pilot Ignition Gas Valve 150,000 BTU

Product Description

The Robertshaw 720-082 is a dual valve gas control designed for various heating applications. This 24 volt universal gas valve supports pilot ignition, suitable for both propane and natural gas. It can replace numerous constant pilot valves, including six function models.

• Compatible with natural and propane gas
• Includes LP conversion kit
• Easy installation with accessible wiring connections

Product Highlights

This valve features a manual valve, safety shutoff magnet, and main gas regulator, providing reliability in multiple settings.

Product Information

Standard Information

• Brand: Robertshaw
• MPN: 720-082

Technical Specifications

• Voltage: 24 VAC
• Capacity: 150,000 BTU
• Inlet Size: 3/4 inches
• Outlet Size: 3/4 inches
• Pilot Outlet: 1/4 tubing
• Pressure Regulator: Natural gas set at 3.5 W.C.
• L.P. Gas: Set at 11.0 W.C.
• Ambient Temperature Range: -40 to 175 degrees F
• Maximum Inlet Pressure: 14 W.C. (1/2 PSI)
