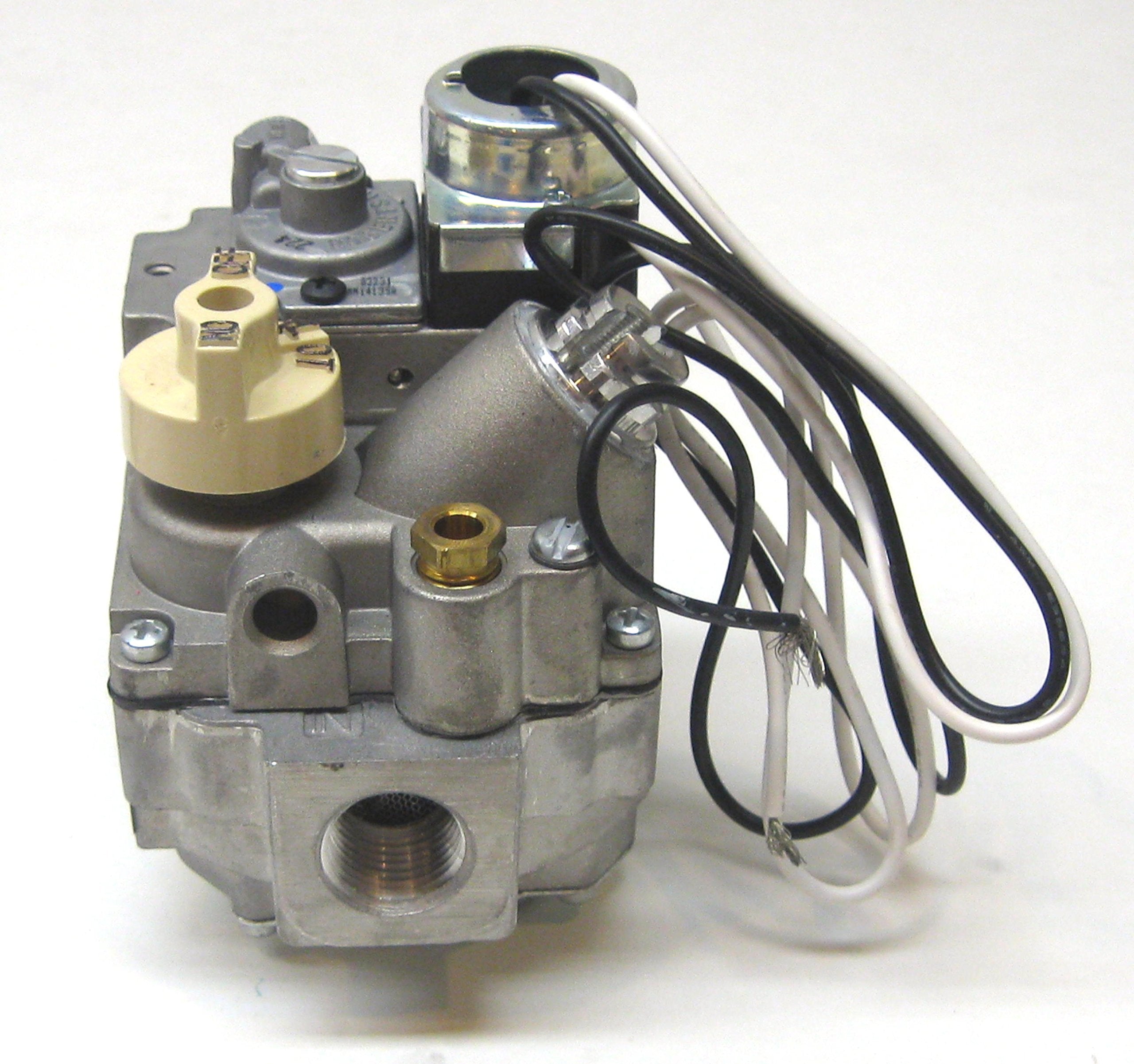

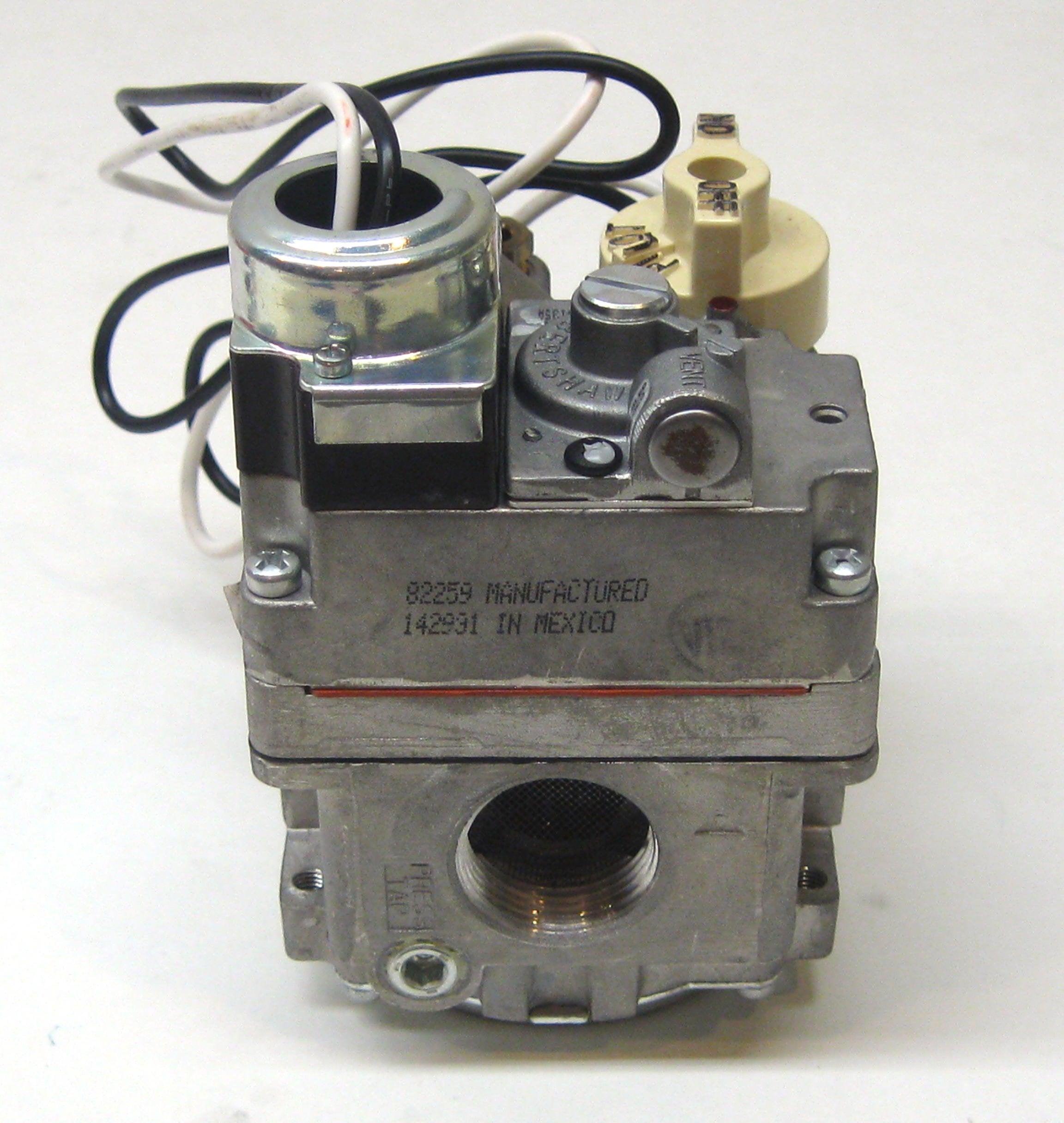

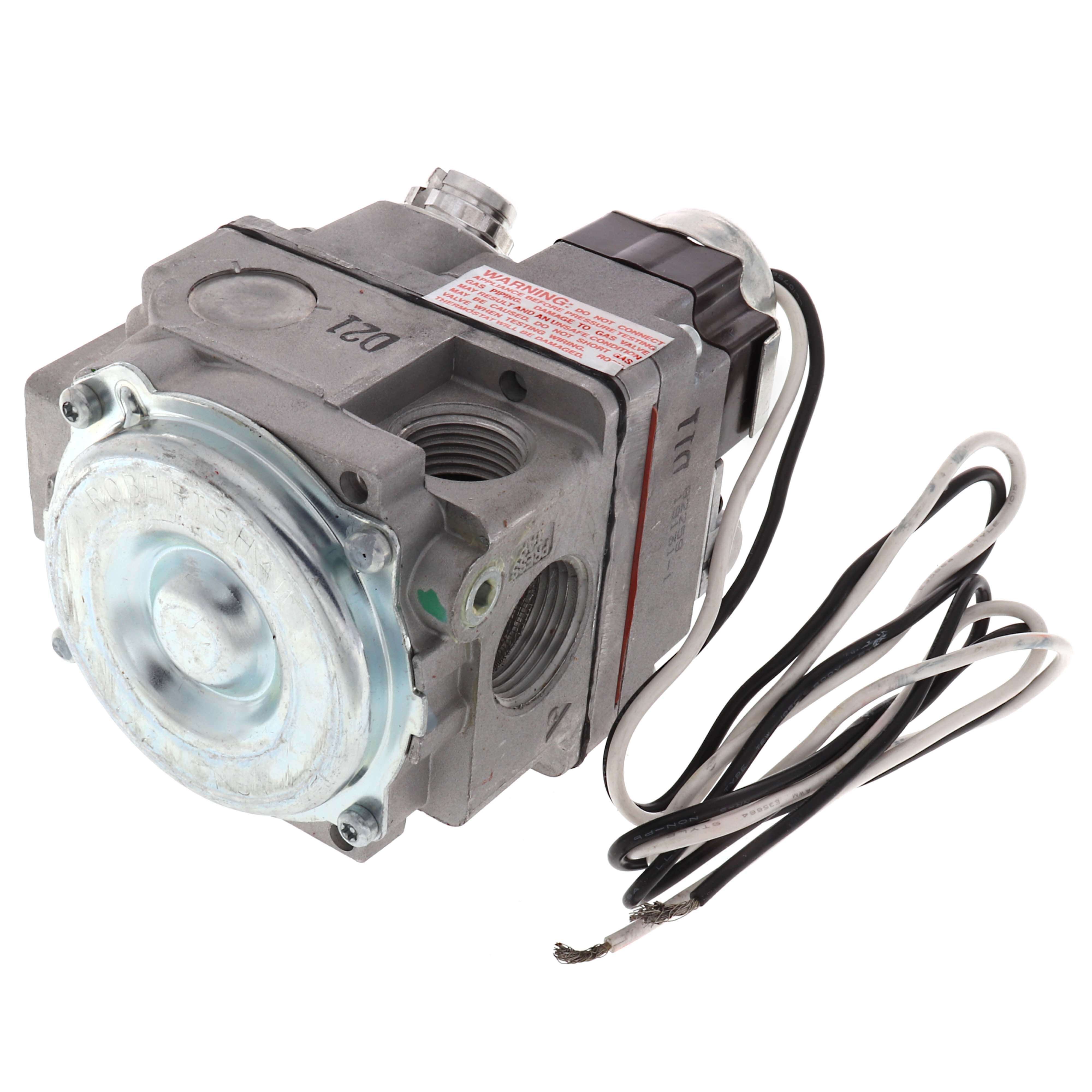

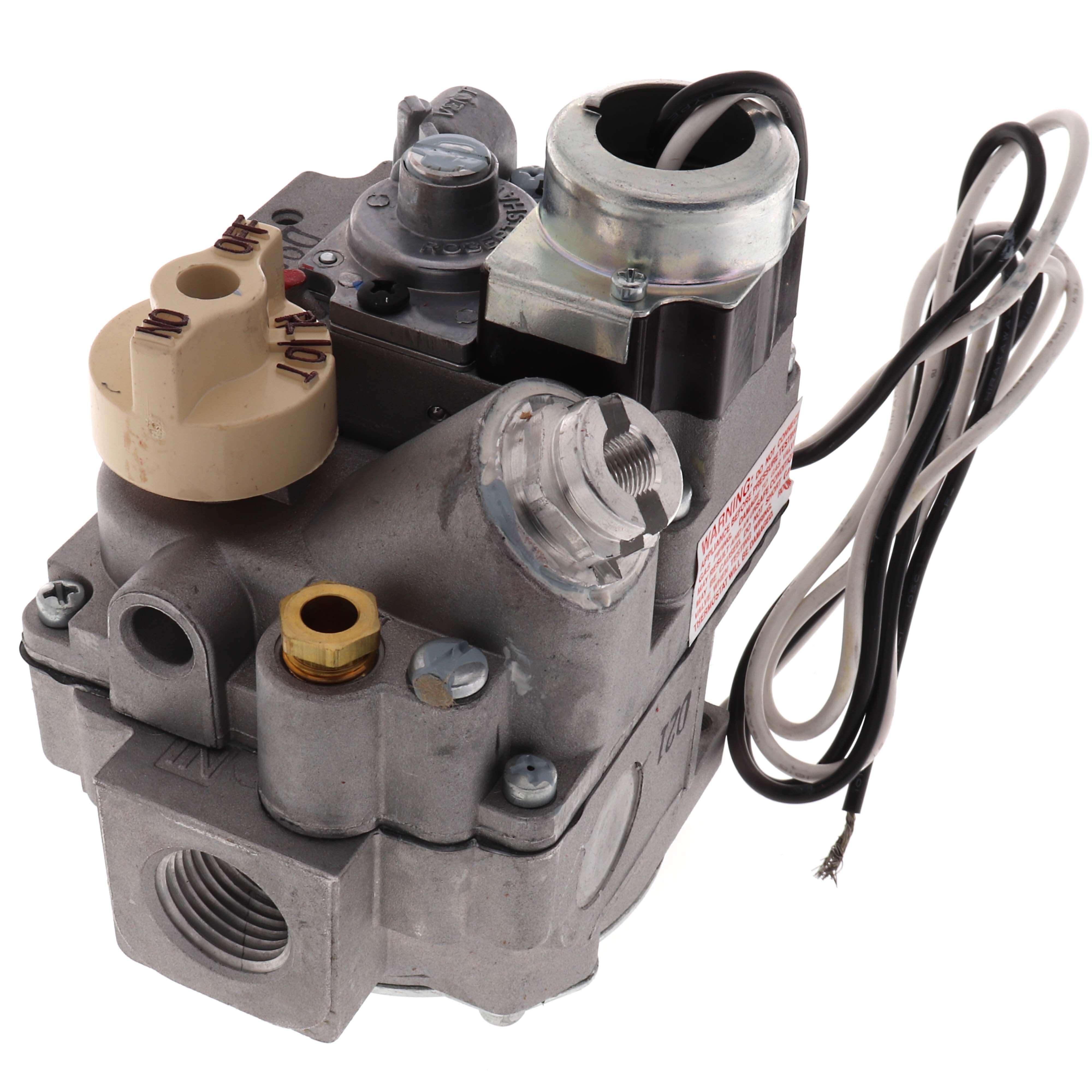

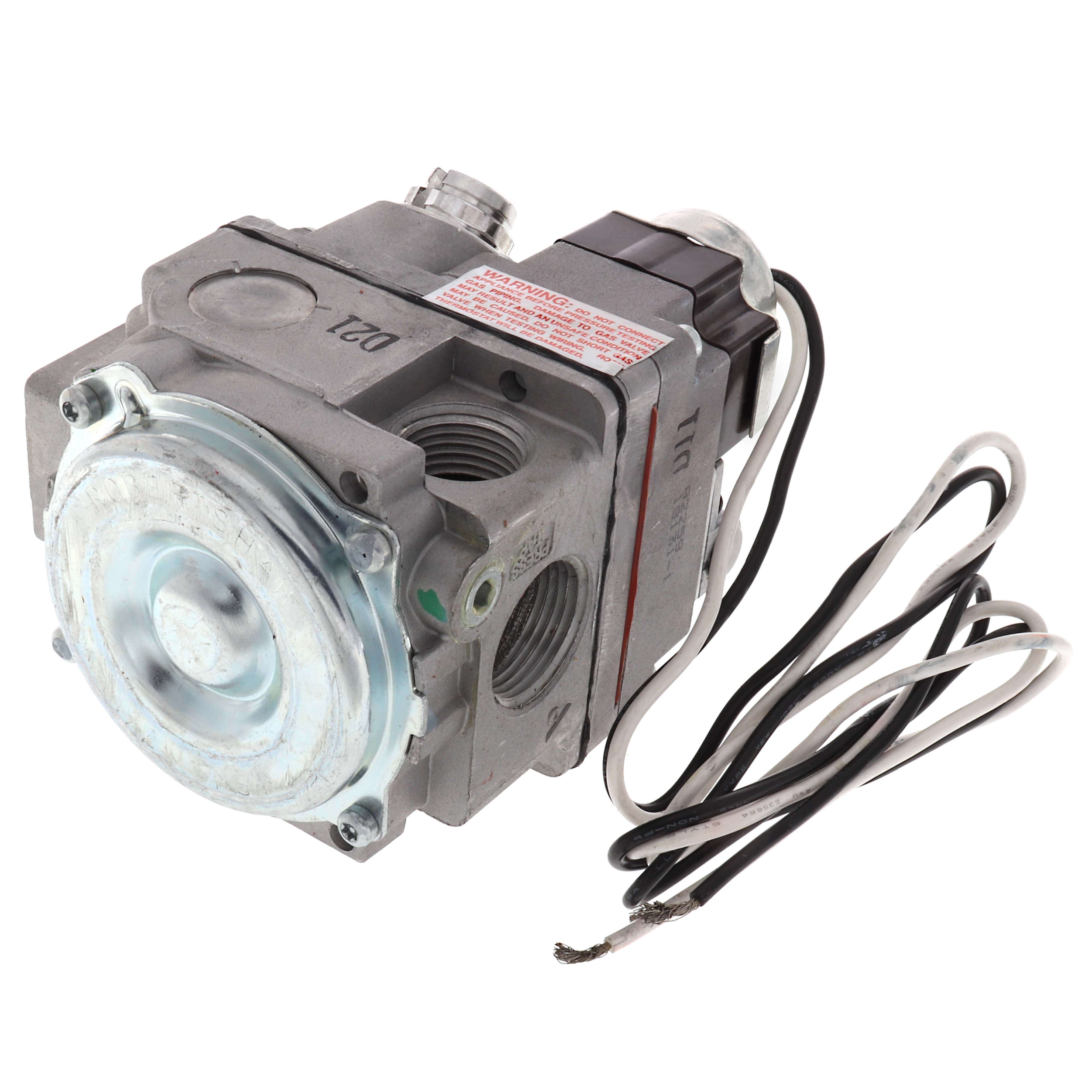

Robertshaw 700-452 Gas Valve 1/2 inches x 3/4 inches

Product Description

The ROBERTSHAW 700-452 gas valve is suitable for use in gunsmithing tools. This valve is designed to control the flow of gas in various applications. It features a combination gas valve design that incorporates both a main gas valve and a pilot valve, ensuring precise and responsive control of gas flow.

• Suitable for natural gas
• Pilot port connection size: 1/4 in
• Operating temperature range: -40 to 175 Degrees F

Product Highlights

This gas valve offers reliable and efficient control of gas flow in industrial applications. It ensures precise and responsive control.

Product Information

Standard Information

• Brand: ROBERTSHAW
• Manufacturer Part Number: 700-452
• Country of Origin: Mexico

Technical Specifications

• For Media: Natural Gas
• Heating Capacity - Maximum: 240,000 BtuH
• Manufacturer Series: 700
• Operating Temperature - Maximum: 175 Degrees F
• Operating Temperature - Minimum: -40 Degrees F
• Pilot Port Connection Size: 1/4 in
• Pilot Port Connection Type: Compression
• Port Connection Size: 1/2 in, 3/4 in
• Brand: ROBERTSHAW
• MPN: 700-452
• Voltage: 120 V.A.C
• Fuel Type: Natural Gas
• Capacity (BTU): 240000
• Pressure Reg Setting: 3.5" W.C. NAT. GAS
• Item Height: 3.500
• Item Width: 4.800
• Length: 5.800
• Width: 4.800
• Depth: 4.800
• Type: Gas Valve
• Model: 7000BER-120
• Mfr. Model: 700-452
• Series Application: Millivolt Diaphragm/Solenoid Gas Valve
• Factory Part Number: 7000BER-120
• Pressure Regulation: 3.5" WC Natural Gas
• Lead Length: 32"
• Electrical Rating: 120V AC @ 0.034 Amps, 50/60 Hz|240V AC @ 0.017 Amps, 50/60 Hz
• Outlet Size: 1/2" x 3/4"
• Pilot outlet: 1/4 inch
• Inlet Size: 1/2"
• Item Diameter: 3.5 in
• Current: 0.034 A
• Flow Direction: Straight-Thru
• Features: Gas Valve, 1/2 In. x 3/4 In., 120V, 3.5 In. WC, Fits Brand Robert
• Side Outlets: Straight-Thru
